The Complete Guide to Steel Crawler Undercarriage: MAGEON Explains Product Features, Selection Criteria & Application Prospects

In the heavy machinery industry, the Steel Crawler Undercarriage is the core assembly that determines equipment mobility, stability, and operational efficiency. As a globally recognised manufacturer of custom track undercarriage systems, MAGEON draws on decades of engineering practice to provide a comprehensive analysis of steel crawler undercarriage technology, core specifications, selection criteria, and market trends — helping industry users make more informed equipment decisions.

1. What Is a Steel Crawler Undercarriage?

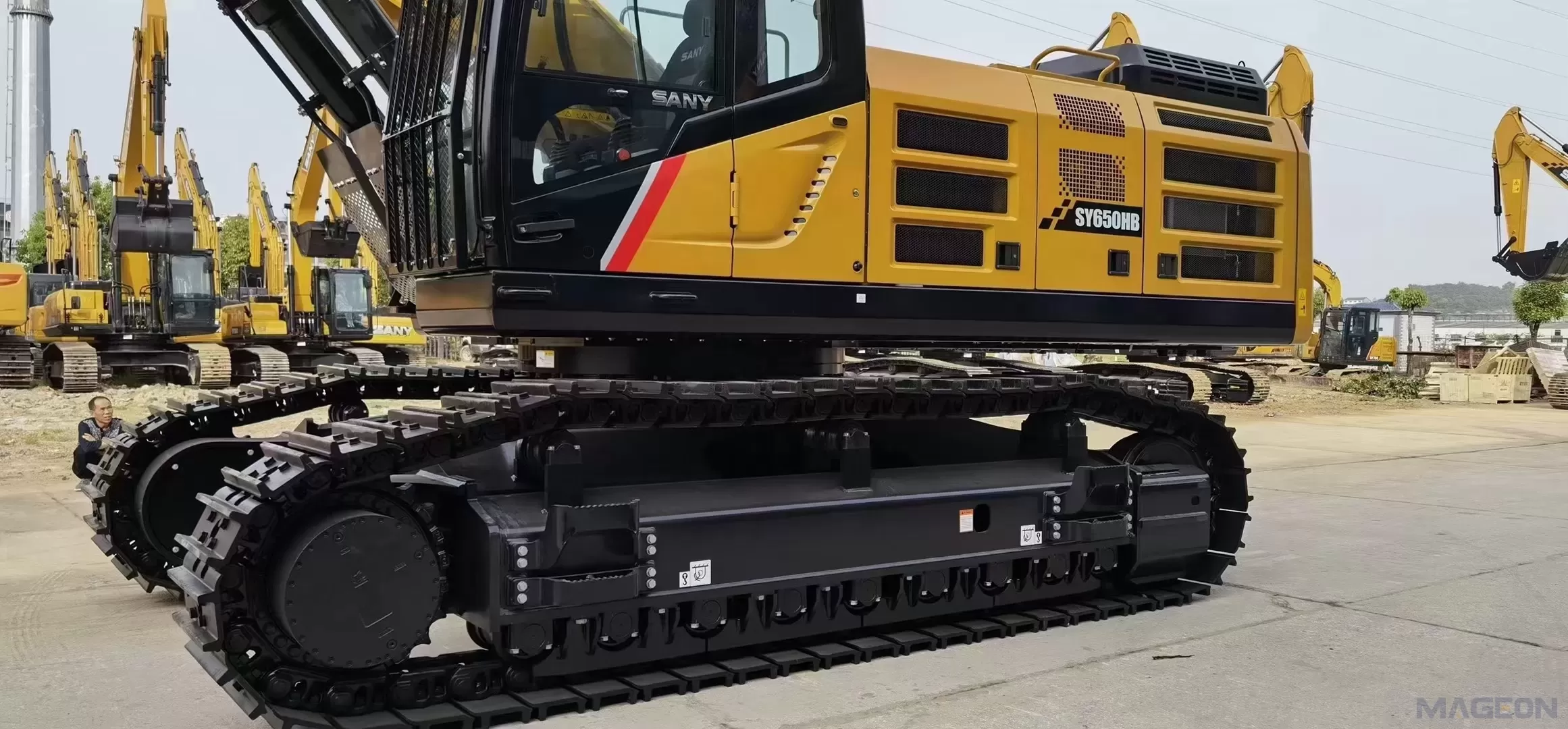

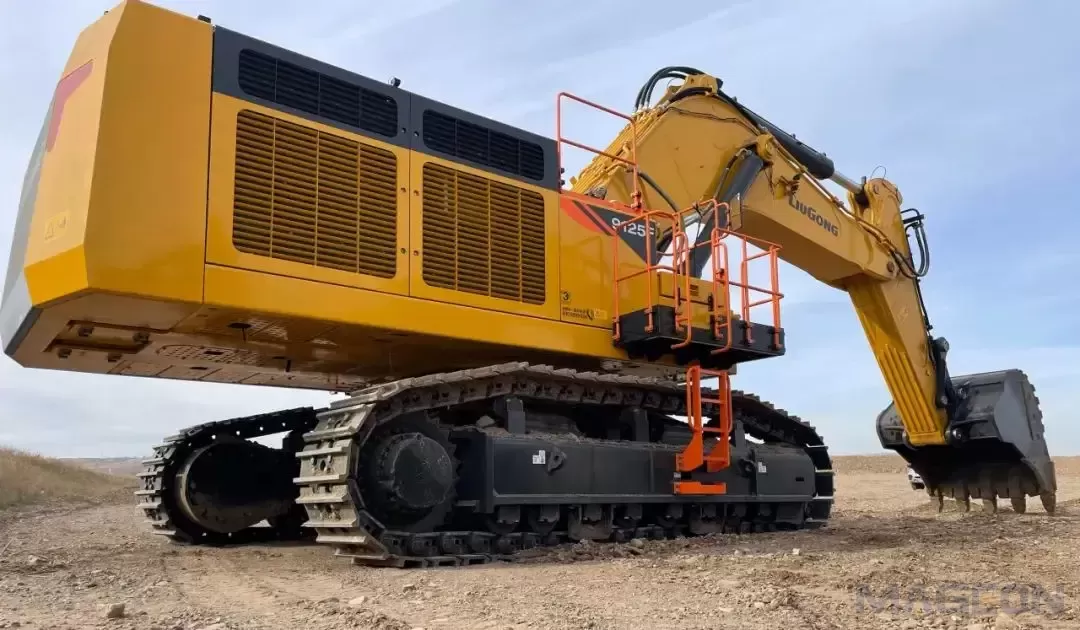

A Steel Crawler Undercarriage is a track-type travel assembly consisting of track chains, drive sprockets, track rollers, carrier rollers, idlers, and track frames. Through continuous contact between the high-strength steel tracks and the ground, it efficiently transmits the machine's power to the ground, enabling smooth movement and precise positioning.

Compared with a Rubber Track Undercarriage, the core advantages of a steel crawler undercarriage are:

· Ultra-high load capacity: Steel track chains are forged from high-strength alloy steel, with a single track capable of supporting tens or even hundreds of tons

· Extreme wear resistance: In highly abrasive environments such as mines and quarries, steel tracks significantly outlast rubber tracks

· Superior terrain adaptability: Deep grouser designs provide exceptional traction on rock, gravel, and steep slopes

· Longer total lifecycle: Although initial investment is higher, steel tracks offer a lower total cost of ownership in heavy-load, high-abrasion applications

However, steel crawler undercarriages also have limitations, including higher ground pressure, potential damage to paved surfaces, and slower travel speeds. Therefore, the choice between steel and rubber track undercarriages must be evaluated based on specific operating conditions.

2. Core Components & Technical Specifications of Steel Crawler Undercarriage

A complete steel crawler undercarriage assembly consists of the following key components working in coordination:

2.1 Track Chain

The track chain is the core travel component of a steel crawler undercarriage, composed of track links, track pins, pin bushings, and track shoes.

Key Technical Specifications:

MAGEON Engineering Recommendation: For rock applications, choose reinforced track shoes with triple-grouser designs; for soft soil, select wider track shoes to reduce ground pressure.

2.2 Drive Sprocket

The drive sprocket is the "power heart" of the undercarriage, transferring power from the hydraulic motor or mechanical transmission to the entire track through engagement with the track pin bushings.

Maintenance Points: Regularly inspect sprocket tooth wear. When teeth show significant "hooking" or sharpening, replace immediately to prevent track skipping and derailment. MAGEON drive sprockets are high-frequency induction-hardened to a tooth surface hardness of HRC 52-58, significantly extending service life.

2.3 Track Roller / Bottom Roller

Track rollers bear the entire machine weight and distribute the load evenly across the track chain.

Maintenance Points: Track rollers are among the most wear-prone components in the undercarriage. At the end of each shift, clean accumulated mud and debris from around the track rollers. Regularly check floating seals for leaks — seal failure will lead to rapid bearing damage.

2.4 Carrier Roller / Top Roller

Carrier rollers are positioned on top of the undercarriage frame, supporting the upper run of the track chain to prevent excessive sagging.

2.5 Idler / Front Idler

The idler is positioned at the front of the undercarriage, guiding track direction and working with the tensioning system to maintain proper track tension.

2.6 Track Frame

The track frame is the structural backbone connecting all undercarriage components, typically fabricated from high-strength steel plates and requiring high rigidity and torsional strength.

2.7 Track Tensioning System

Proper track tension is critical to extending the life of the entire undercarriage. Excessive tension accelerates pin and bushing wear; insufficient tension increases the risk of derailment.

3. Steel Crawler Undercarriage vs. Rubber Track Undercarriage: Technical Comparison & Selection Guide

When recommending or customising an undercarriage for clients, the MAGEON engineering team first assesses a core question: Does your equipment need a steel track or a rubber track?

MAGEON Selection Recommendations:

· Choose Steel Crawler Undercarriage: If your equipment primarily operates in mines, quarries, rocky terrain, or requires heavy dozing/drilling

· Choose Rubber Track Undercarriage: If your equipment primarily operates on paved surfaces, urban construction sites, ecologically sensitive areas, or soft farmlands

4. Core Application Areas of Steel Crawler Undercarriage

Steel crawler undercarriages play an irreplaceable role in the following sectors, thanks to their ultra-high load capacity and extreme environmental adaptability:

4.1 Rotary Drilling Rig Chassis

Rotary drilling rigs represent one of the most important applications for steel crawler undercarriages. A Rotary Drilling Rig Chassis must withstand the high reactive torque and enormous vertical loads generated during deep-hole drilling. MAGEON provides dedicated heavy-duty steel undercarriages for rotary drilling rigs, equipped with large-diameter slewing bearings and high-strength track frames to ensure absolute stability during deep well construction.

Typical Load Range: 10 – 100 tons

4.2 Drilling Rig Undercarriage

Whether for water well drills, core drills, or geothermal exploration rigs, a Drilling Rig Undercarriage must provide a stable working platform across diverse terrains. Steel crawler undercarriages, with their superior traction and impact resistance, are the preferred travel solution for drilling equipment.

Typical Load Range: 0.5 – 50 tons

4.3 Excavator Conversion Undercarriage

Converting older or wheeled excavators into tracked equipment is the core value proposition of an Excavator Conversion Undercarriage. MAGEON provides complete conversion undercarriage solutions, including custom mounting interfaces compatible with upper structures from different excavator brands, helping customers upgrade equipment at lower cost.

Typical Load Range: 5 – 50 tons

4.4 Telescopic Crawler Undercarriage

A Telescopic Crawler Undercarriage uses a hydraulic system to adjust the track frame width — narrowing for transport to comply with road width restrictions, and widening during operation to increase stability. This design is particularly suitable for large equipment that frequently transfers between multiple job sites.

Typical Load Range: 20 – 100 tons

4.5 Other Application Areas

· Bulldozers: Heavy dozing, site levelling

· Crushing & Screening Equipment: Mobile crushers, screeners

· Crawler Cranes: Heavy lifting operations

· Forestry Machinery: Operations on rugged forest terrain

· Agricultural Machinery: Large tracked tractors

4.6 Application Overview

5. Core Technical Advantages of MAGEON Steel Crawler Undercarriage

As a globally leading manufacturer of Custom Tracked Chassis, MAGEON has accumulated deep technical expertise in steel crawler undercarriages:

6. Maintenance & Lifecycle Management of Steel Crawler Undercarriage Components

Proper maintenance is the key to extending the service life of Undercarriage Parts. The following maintenance guidelines are based on MAGEON's years of engineering practice:

MAGEON Golden Rules of Maintenance:

1、Maintain proper tension: Too tight accelerates wear; too loose causes derailment

2、Clean debris promptly: Remove mud and debris from tracks and rollers after each shift

3、Listen for unusual noises: Unusual sounds during travel often indicate impending component failure

4、Regularly inspect seals: Floating seal failure leads to rapid bearing damage

7. Market Trends in Steel Crawler Undercarriage

With the continuous advancement of global infrastructure development and the ongoing evolution of the heavy machinery industry, the market for steel crawler undercarriages is showing the following trends:

1. Larger & Heavier Equipment

As mining depths increase and construction project scales expand, demand for ultra-large undercarriages is growing. The market share of steel crawler undercarriages above 100 tons continues to expand.

2. Intelligence & Electronic Control

Modern steel crawler undercarriages increasingly integrate smart sensors and electronic control systems, enabling automatic speed regulation, fault self-diagnostics, and remote monitoring.

3. Energy Efficiency & Environmental Protection

By optimising undercarriage structural design, using lightweight materials and low-friction bearings, energy consumption of travel systems is being reduced. Meanwhile, more environmentally friendly surface treatment processes — such as water-based coatings replacing solvent-based coatings — are becoming industry standards.

4. Growing Demand for Customisation

Different operating conditions impose vastly different requirements on undercarriages. Standardised products are no longer sufficient to meet diverse needs. Custom Tracked Chassis is becoming the mainstream market trend.

8. Frequently Asked Questions (FAQ)

Q1: How do I choose between a steel crawler undercarriage and a rubber track undercarriage for my equipment?

A: The choice depends on your specific operating conditions. If your equipment primarily operates in mines, quarries, rocky terrain, or requires heavy dozing/deep-hole drilling, the Steel Crawler Undercarriage is the better choice due to its higher load capacity and superior wear resistance. If your equipment primarily operates on paved surfaces, urban construction sites, ecologically sensitive areas, or soft farmlands, the Rubber Track Undercarriage is more suitable due to its lower ground pressure and surface-friendly characteristics. MAGEON offers customisation services for both technologies and can recommend the optimal solution based on your specific conditions.

Q2: Is a steel crawler undercarriage suitable for rotary drilling rigs?

A: Yes. The Rotary Drilling Rig Chassis is one of the most important applications for steel crawler undercarriages. Rotary drilling rigs generate enormous reactive torque and vertical loads during deep-hole drilling — only high-strength steel crawler undercarriages can provide the required stability and torsional rigidity. MAGEON provides 10-100 ton heavy-duty steel undercarriages specifically designed for rotary drilling rigs.

Q3: Can MAGEON customise undercarriages for drilling rig equipment?

A: Yes. MAGEON provides customisation services for all types of Drilling Rig Undercarriages, covering water well drills, core drills, geothermal exploration rigs, and more, with load ranges from 0.5 to 50 tons, tailored to rig type, drilling depth, and operating terrain.

Q4: What is an excavator conversion undercarriage?

A: An Excavator Conversion Undercarriage is a complete undercarriage solution that converts older or wheeled excavators into tracked equipment. MAGEON provides custom mounting interfaces compatible with upper structures from different excavator brands, helping customers upgrade equipment at lower cost and extend service life.

Q5: What are the advantages of a telescopic crawler undercarriage?

A: A Telescopic Crawler Undercarriage uses a hydraulic system to adjust the track frame width — narrowing for transport to comply with road width restrictions, and widening during operation to increase stability. This design is particularly suitable for large equipment that frequently transfers between multiple job sites, such as telescopic boom cranes and large drilling rigs.

Q6: What undercarriage parts does MAGEON supply?

A: MAGEON supplies a complete range of Undercarriage Parts, including: drive sprockets, idlers, track rollers, carrier rollers, track chains (including links, pins, bushings, and track shoes), track frames, and tensioning systems. All components are manufactured from premium alloy steels and processed with precision heat treatment.

Q7: How often should steel crawler undercarriage track chains be replaced?

A: Under normal heavy-load conditions, steel track chains typically have a replacement cycle of 3,000 to 6,000 hours. Actual service life depends on the abrasiveness of the operating environment, maintenance practices, and operator habits. Daily inspection of track tension and link wear is recommended, with regular wear data recording to predict replacement timing.

Q8: What is the load capacity range for MAGEON custom undercarriages?

A: MAGEON provides Custom Tracked Chassis solutions from 0.5 to 100 tons, covering the full load range from small exploration drilling rigs to ultra-large rotary drilling rigs and crawler cranes.

Q9: How can I extend the service life of my steel crawler undercarriage?

A: Follow these maintenance golden rules:

 ① Maintain proper track tension — too tight accelerates wear, too loose causes derailment;

 ② Clean mud and debris from tracks and rollers after each shift;

③ Listen for unusual noises during travel to detect early signs of component failure;

④ Regularly inspect floating seals to prevent bearing damage. Regular maintenance can extend undercarriage life by over 30%.

Q10: What is the MAGEON custom undercarriage service process?

A: MAGEON provides a full-process customisation service:

① Requirements analysis and operating condition assessment →

 ② Solution design and technical validation →

③ Detailed engineering design and hydraulic system matching →

④ Manufacturing and quality control →

⑤ Delivery and after-sales support. From start to finish, MAGEON ensures every undercarriage precisely matches your equipment specifications and operational needs.

9. About MAGEON

MAGEON is dedicated to delivering high-quality Steel Crawler Undercarriage and Rubber Track Undercarriage custom solutions to the global heavy machinery industry. With deep technical expertise and extensive engineering experience, we tailor travel-drive solutions that excel in the most extreme working conditions.

Our Core Capabilities:

· Load Capacity: Customised solutions from 0.5 to 100 tons

· Undercarriage Types: Steel track undercarriage, rubber track undercarriage, telescopic track undercarriage

· Application Areas: Rotary drilling rigs, exploration drilling rigs, excavator conversions, bulldozers, crawler cranes, crushing and screening equipment, forestry machinery, agricultural machinery, and more

· Parts Supply: Complete range of Undercarriage Parts including drive sprockets, idlers, track rollers, carrier rollers, and track chains

From design to delivery, MAGEON stands for exceptional quality and dependable service, helping your equipment perform efficiently on the most challenging terrains.
