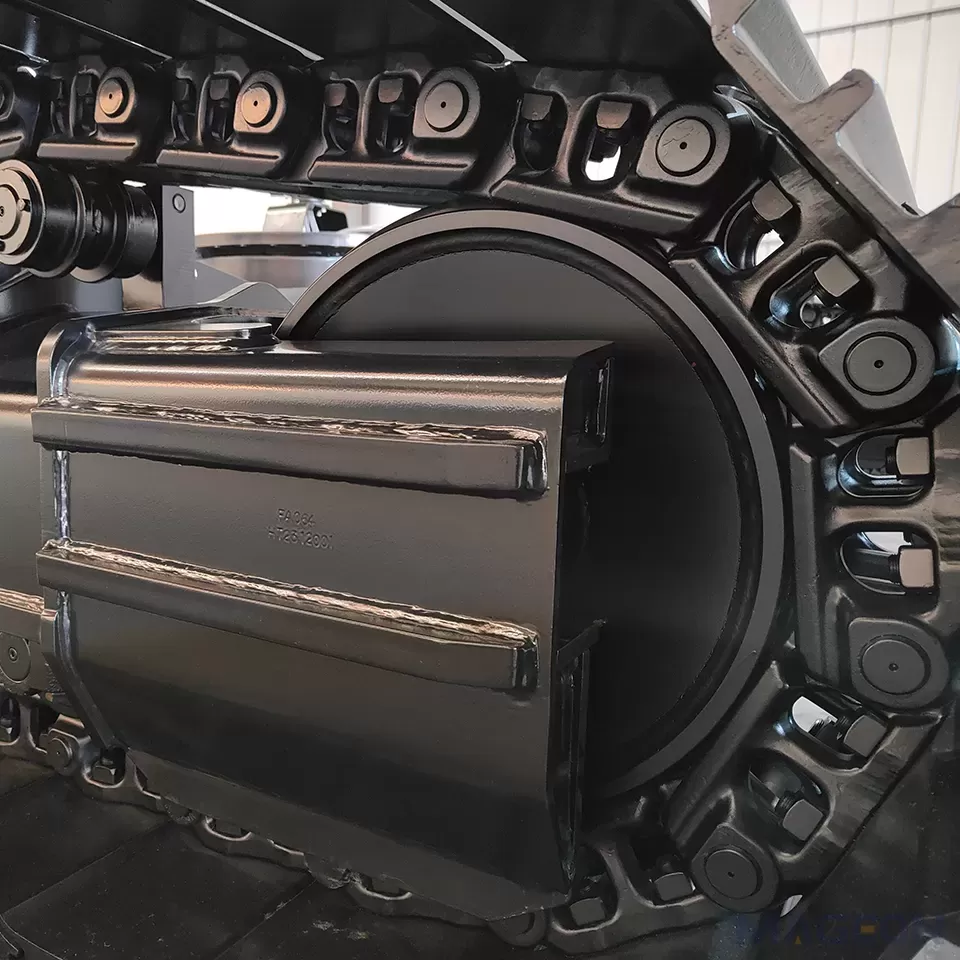

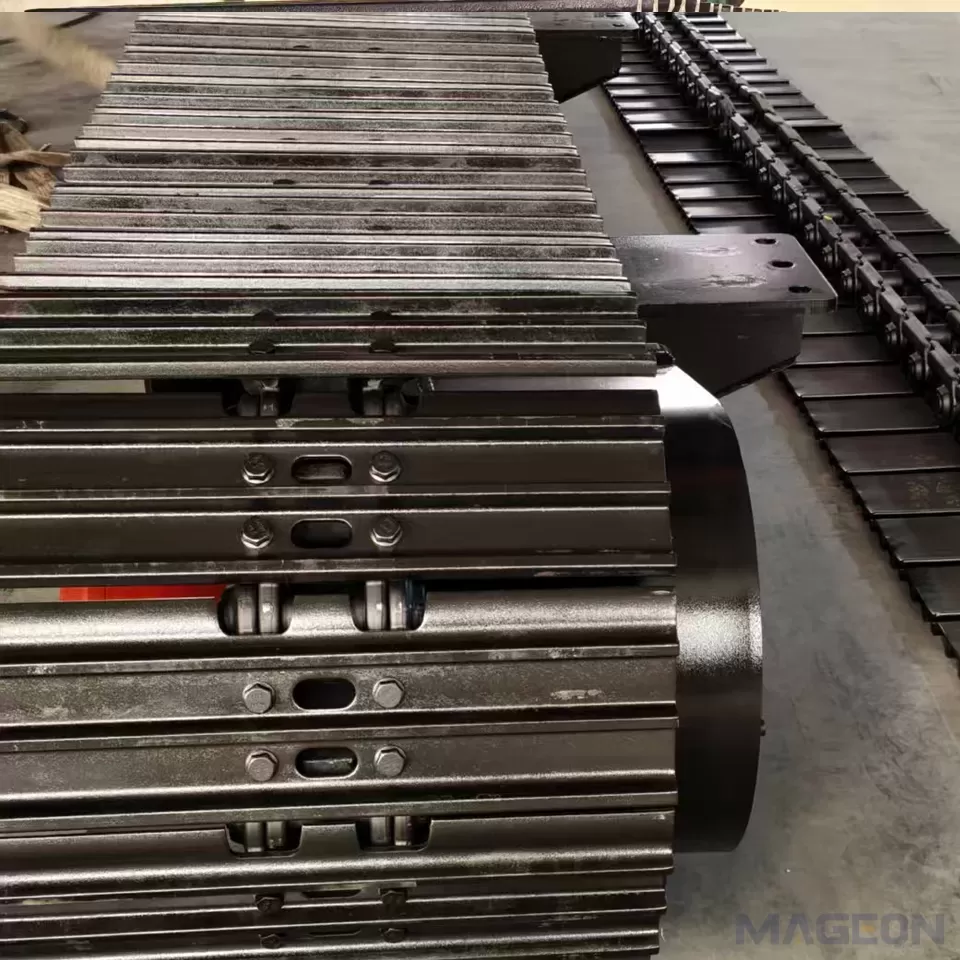

MGS-200B Customizable 20 Tons Steel Track Undercarriage

Product Overview

As a versatile tracked platform for multi-scenario engineering operations, this 20-ton steel track undercarriage adopts a reinforced frame structure and heavy-duty track system, delivering outstanding load-bearing performance and terrain adaptability. It is widely applicable to drilling rigs, mobile crushers, screening machines, mini excavators, forestry equipment, cranes, pipelayers, harvesting machinery, cold milling machines and road paving equipment.

Full Range of MAGEON Track Undercarriage Specification

Core Performance Advantages

1、Modular Track System Design

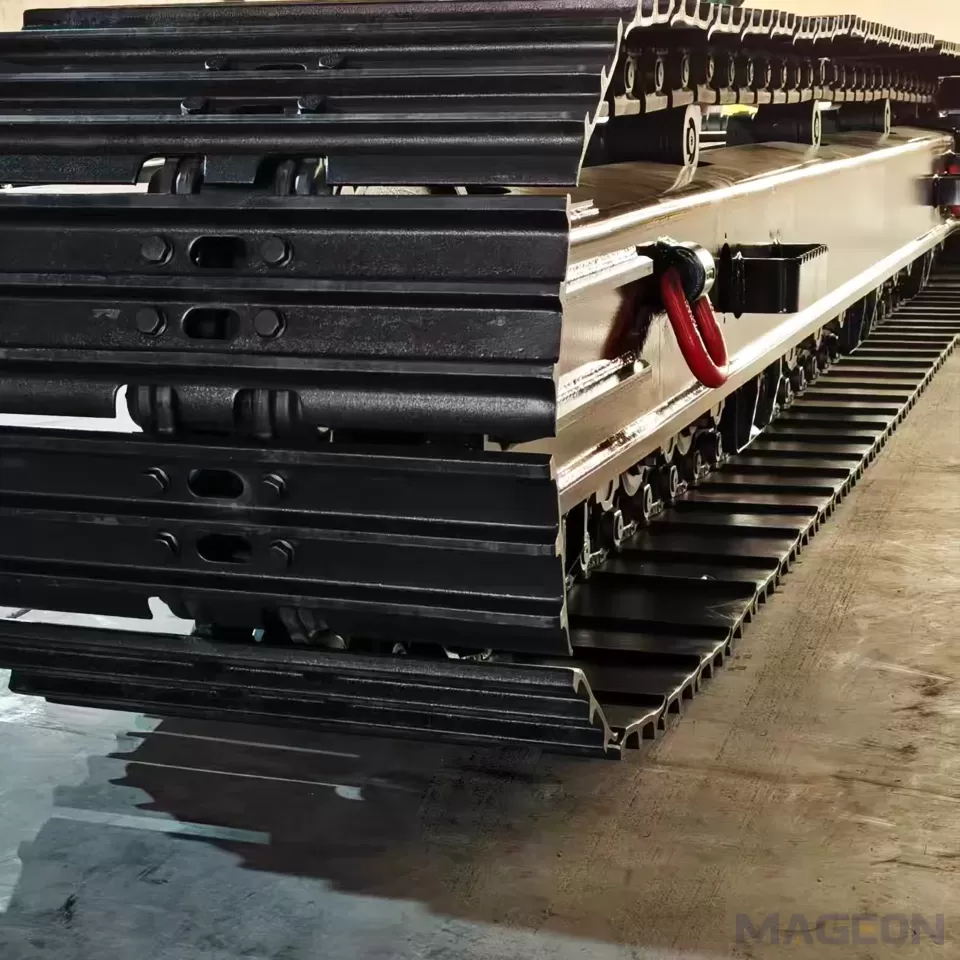

All track systems share core advantages of low ground pressure, 360° in-situ steering and excellent off-road maneuverability, which can flexibly adapt to muddy, sandy, rocky and other complex construction sites. Interchangeable track solution is available to switch between rubber and steel tracks according to working conditions.

2、Heavy-Duty Complete Undercarriage Structure

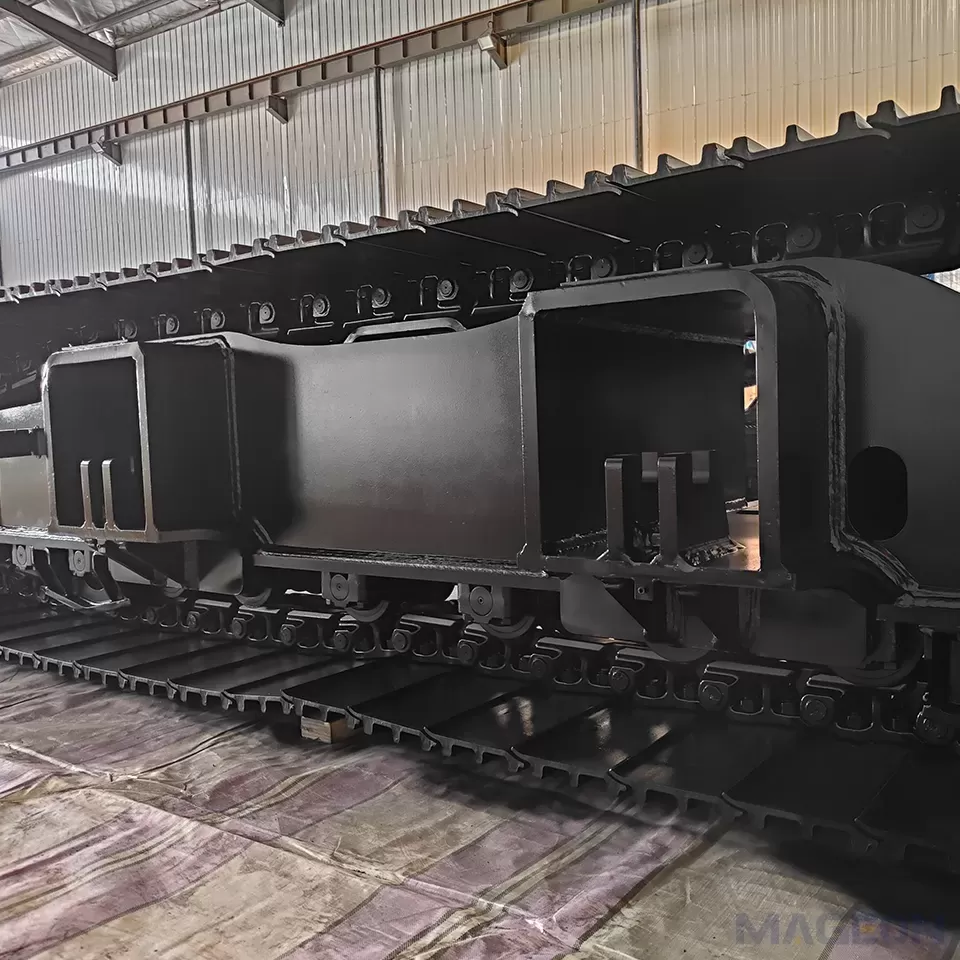

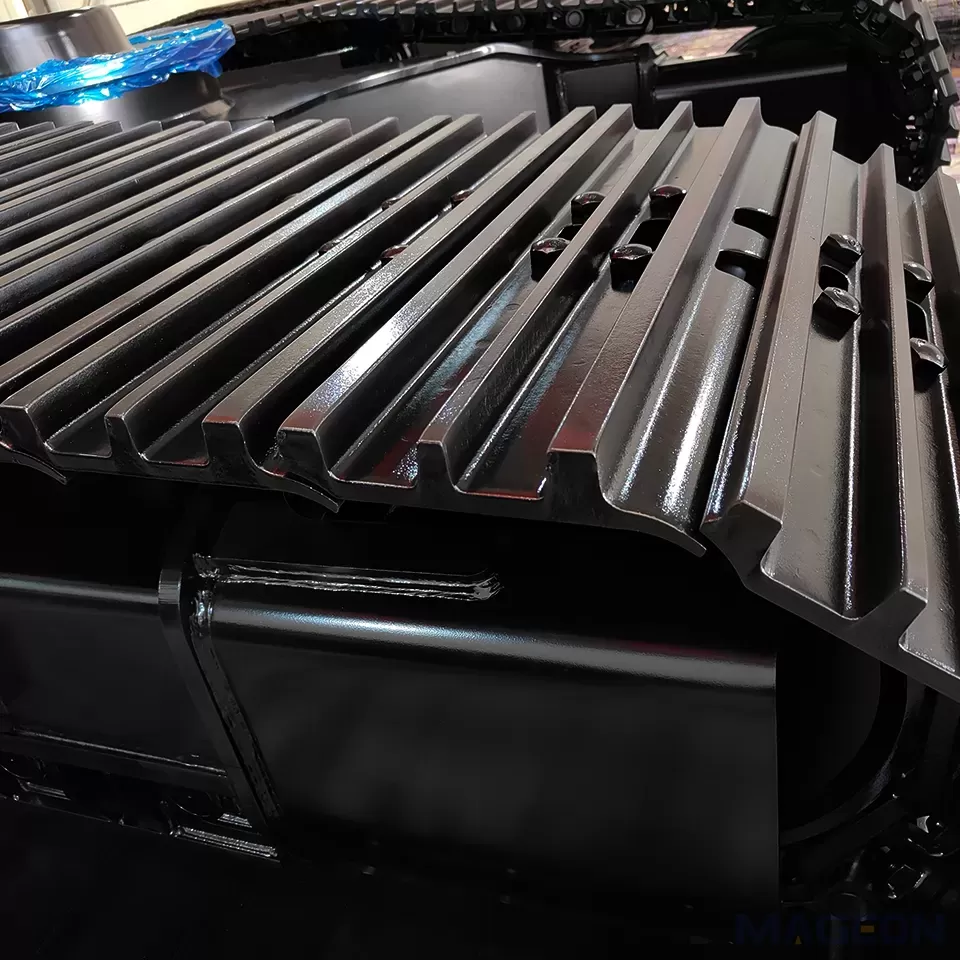

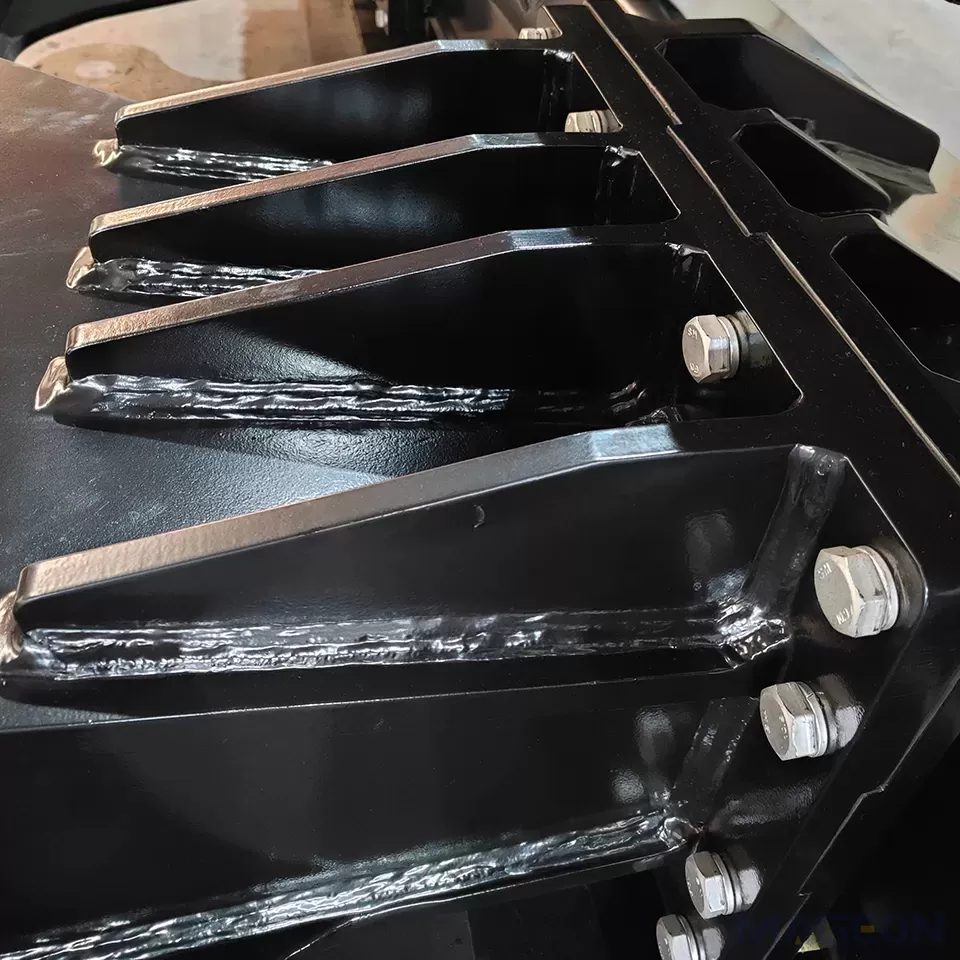

The complete undercarriage adopts high-strength steel frame with reinforced welding process, featuring strong torsion resistance and impact resistance. It is matched with lifetime lubricated rollers and high-wear resistant track shoes, ensuring long service life under high-intensity continuous operation.

3、Customizable Hydraulic Undercarriage Solution

As a professional crawler platform manufacturer, we support full customization of dimensions, load capacity, track width and drive configuration. Hydraulic drive units can be selected from domestic or imported brands according to customer requirements, ensuring matching with upper equipment to the maximum extent.

Packaging & Delivery

Packaging: Standard export wooden pallet or wooden case with shockproof and rust-proof treatment

Lead Time: 30 days for standard models; customized products subject to order complexity

Supply Capacity: 100 sets per month, stable supply for bulk orders

Port: Shanghai Port or designated port by customers

MOQ: 1 set, OEM & ODM services supported

One-Stop Solution

We provide one-stop procurement service for crawler platform accessories, including track rollers, top rollers, idlers, sprockets, tension devices, rubber tracks, steel tracks and other matching parts. Professional technical team provides selection guidance and after-sales support throughout the whole process.

Frequently Asked Questions (FAQ)

Q1: Is this 20-ton steel track undercarriage compatible with my drilling rig equipment?

A: Yes. This MGS-200B undercarriage is designed for 20-ton class engineering machinery and is widely compatible with drilling rigs, mobile crushers and screeners. You only need to provide your equipment model and upper connection dimensions, and our technical team will confirm the matching degree and adjust the connection structure for you.

Q2: Can you customize the undercarriage dimensions and track width?

A: Yes, we support full customization. We can adjust the overall length, width, height, track width, load capacity and intermediate connecting structure according to your actual equipment requirements, and there is no extra charge for conventional size adjustment.

Q3: What is the minimum order quantity for this steel track undercarriage?

A: The MOQ is 1 set. We also support mixed orders of different models and matching accessories, which can help you save overall logistics costs.

Q4: How long is the production lead time?

A: For standard models, the lead time is about 30 days after receiving the deposit. For customized products with special structural requirements, the lead time is 30-60 days, and the specific time will be confirmed with you according to the order complexity.

Q5: What warranty do you provide for the undercarriage?

A: We provide a 1-year or 1000-working-hour warranty (whichever comes first). For quality problems caused by manufacturing defects under normal use, we provide free replacement of spare parts and technical guidance.

Q6: What payment methods do you accept?

A: We accept bank transfer, Western Union and PayPal. The standard payment term is 30% deposit in advance, and 70% balance against the copy of bill of lading.

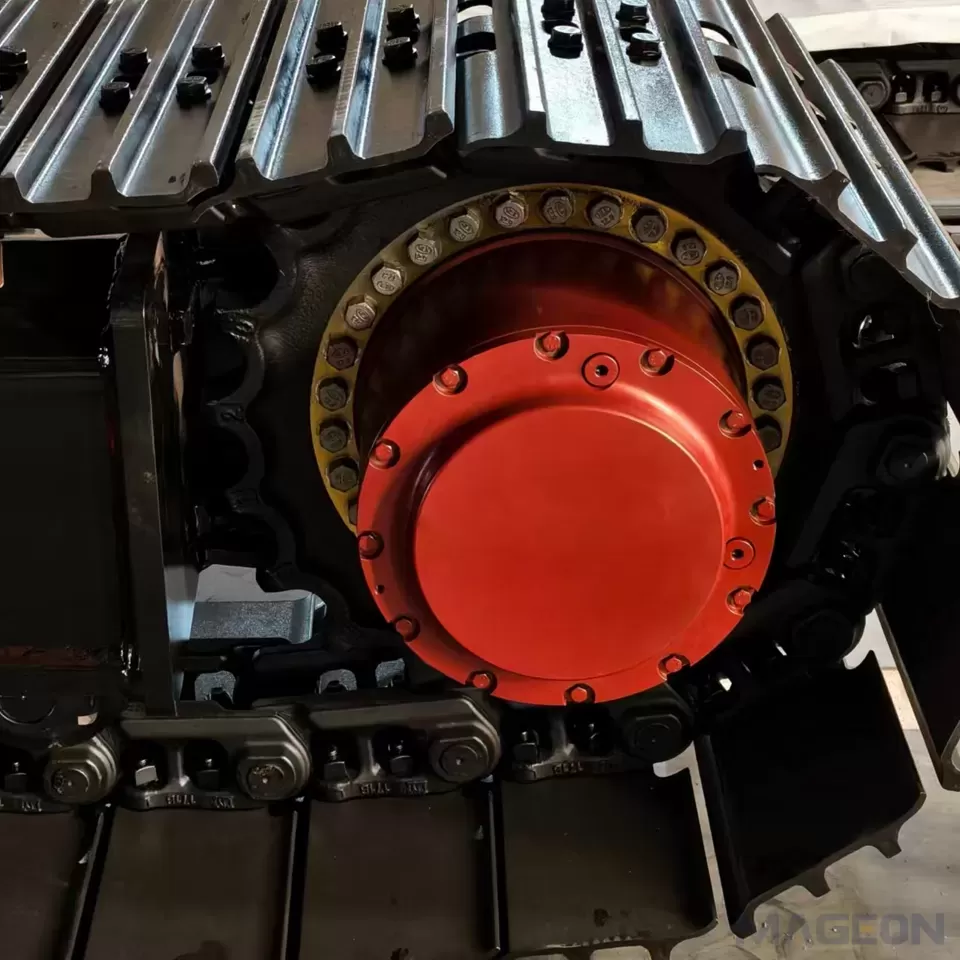

Q7: Can the hydraulic motor be configured with an imported brand?

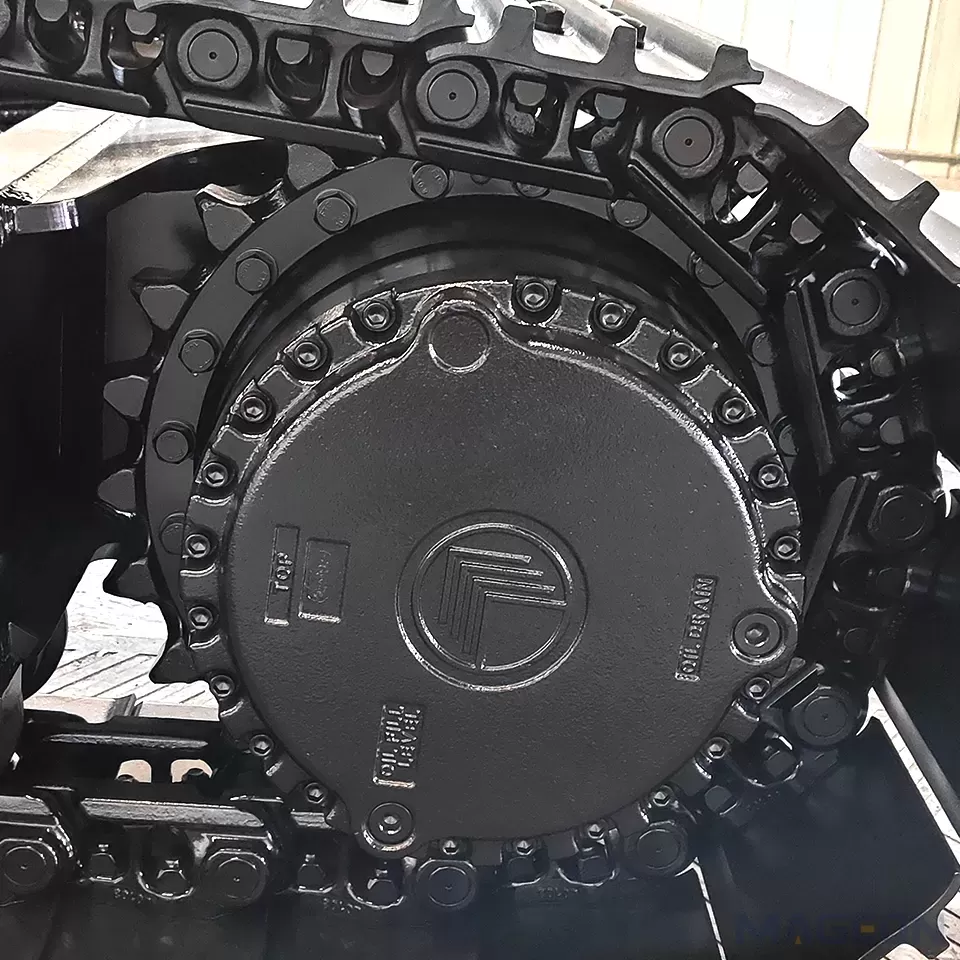

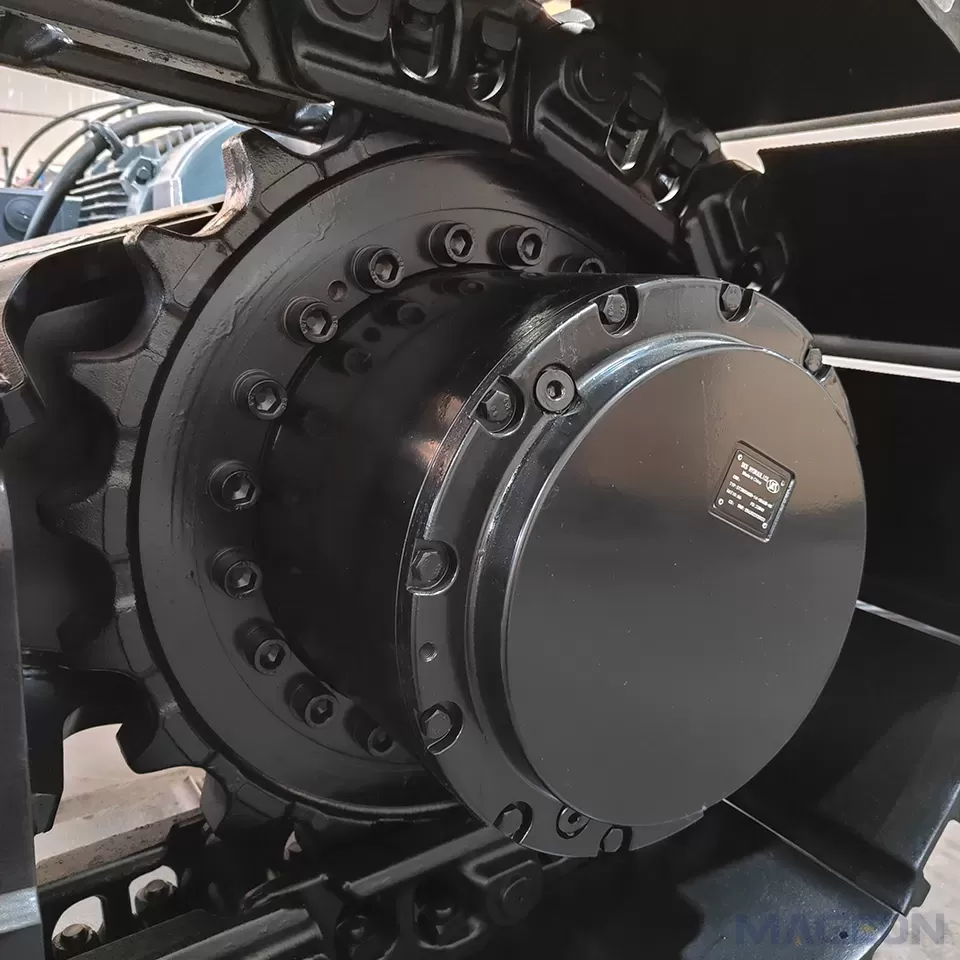

A: Yes. You can choose domestic brands or imported brands such as Eaton and Rexroth according to your budget and working conditions. We will assemble and debug them before delivery.

Q8: Do you provide installation guidance for the undercarriage?

A: Yes. We will provide detailed installation drawings and operation manuals with the product. If necessary, we can also provide remote video guidance to help you complete the assembly and commissioning.

Q9: What certifications do your products have?

A: Our production system has passed ISO9001:2015 quality management system certification. All products undergo strict factory inspection before delivery, and we can provide corresponding test reports upon request.

Q10: Can you supply matching accessories such as track rollers and idlers?

A: Yes. We provide one-stop procurement service, including track rollers, top rollers, front idlers, sprockets, tension devices, track shoes and other wearing parts, which can be ordered together with the undercarriage.
