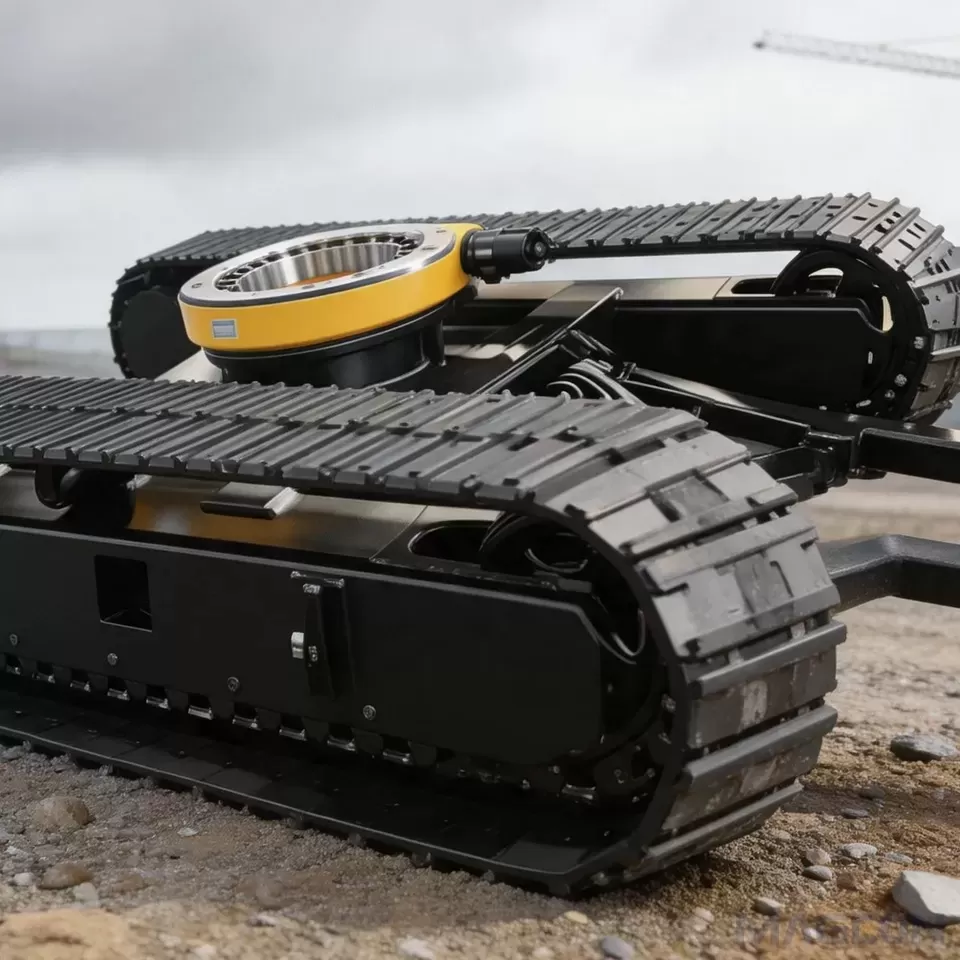

Custom Crawler Undercarriage 1-120 Ton | Rubber & Steel Track Chassis for Crawler Machinery
Professional Custom Track Chassis Manufacturer, Rubber/Steel Track Optional, Full Customization Supported
MAGEON professional custom crawler undercarriage with 1-120 ton load capacity, optional rubber and steel tracks. 20 years manufacturing experience, 1-year warranty, full customization for excavator, drilling rig, robot and mining machinery. OEM & ODM available.
Warranty：1 Year or 1000 Hours
Certification：ISO9001:2015 CE
Overall Load Capacity Range：1 –120 Tons
Rubber Track Load Range：0.8 –30 Tons
Steel Track Load Range：0.5 –150 Tons
Color：Black or Custom Color
Minimum Order Quantity：1 Set
Supply Type：OEM/ODM Custom Service
Price: Submit your requirements and contact us for the lowest quote
Brand & Service Advantages
MAGEON is a professional crawler undercarriage manufacturer with 20 years of experience, we can customize tracked undercarriage according to the requirements of customers:
- 20 years manufacturing experience, reliable product quality
- Within one year of purchase, non-man-made failure, free original spare parts.
- 24-hour after-sales service.
- High configuration，high efficiency，global service, custom design.
- Loading capacity can be from 0.5T to 150T.
- We can supply both rubber track undercarriage and steel track undercarriage.
- We can recommend and assemble the motor & drive equipment as customers’ requests.
- We can also design the whole undercarriage according to special requirements, such as measurements, carrying capacity, climbing etc. which facilitate the customers’ installation successfully.
Wide Application Fields

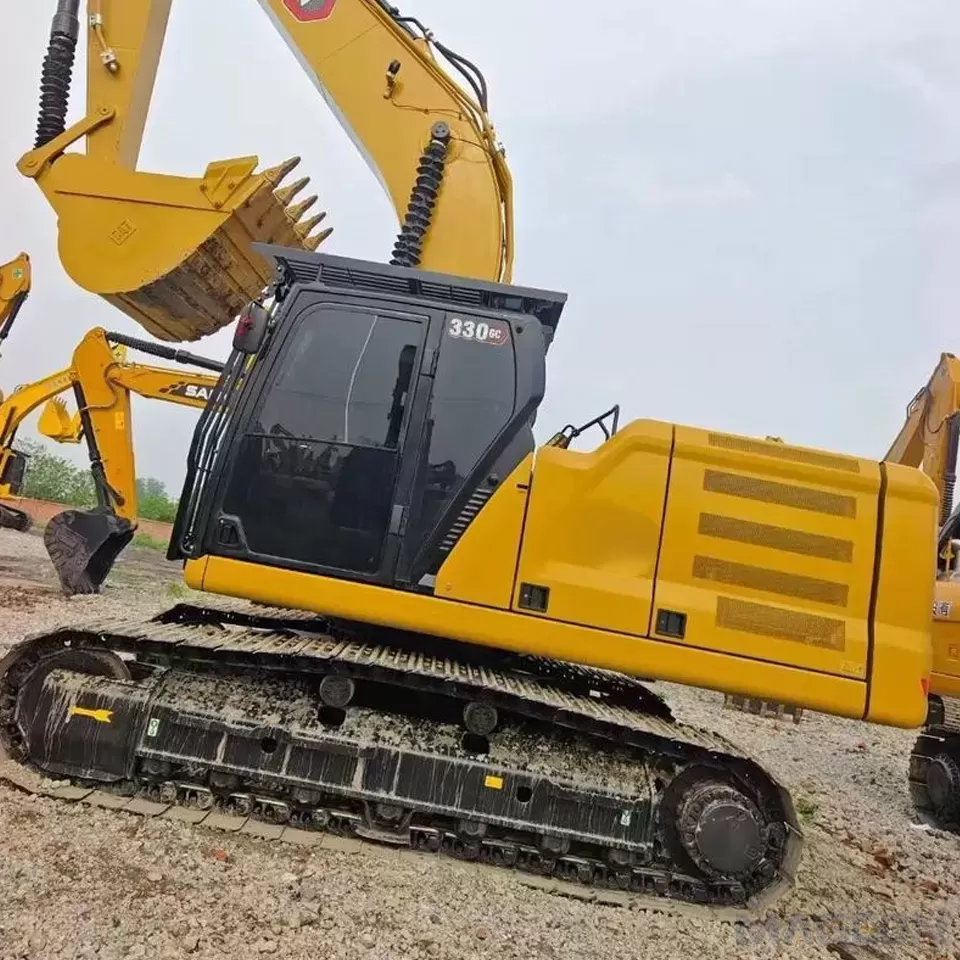

Our customized crawler undercarriages are widely applicable to multiple industries and equipment: fire-fighting robots, aerial work platforms, mobile crushers, drilling rigs, spider lifts, coal mining machinery, mining engineering equipment, urban construction machinery, crawler excavators and general crawler machinery.
Two Main Product Lines
Rubber Track Undercarriage
Load capacity: 0.8 - 30 tons. It runs stably on various road surfaces, featuring flexible movement and high safety, widely used in agriculture, industry and construction fields.
Classic models:
1. SJ300A: Dimension 1800×300×485 mm, Load 3 Ton, Weight 700 kg, Speed 2-4 km/h, Output Torque 3000NM, Climbing Ability ≤30°
2. SJ800A-1: Dimension 2480×400×610 mm, Load 8 Ton, Weight 1300 kg, Speed 1.5 km/h, Output Torque 10900NM, Climbing Ability ≤30°
3. SJ1500A: Dimension 3255×400×653 mm, Load 15-18 Ton, Weight 2000 kg, Speed 1.5 km/h, Output Torque 24000NM, Climbing Ability ≤30°

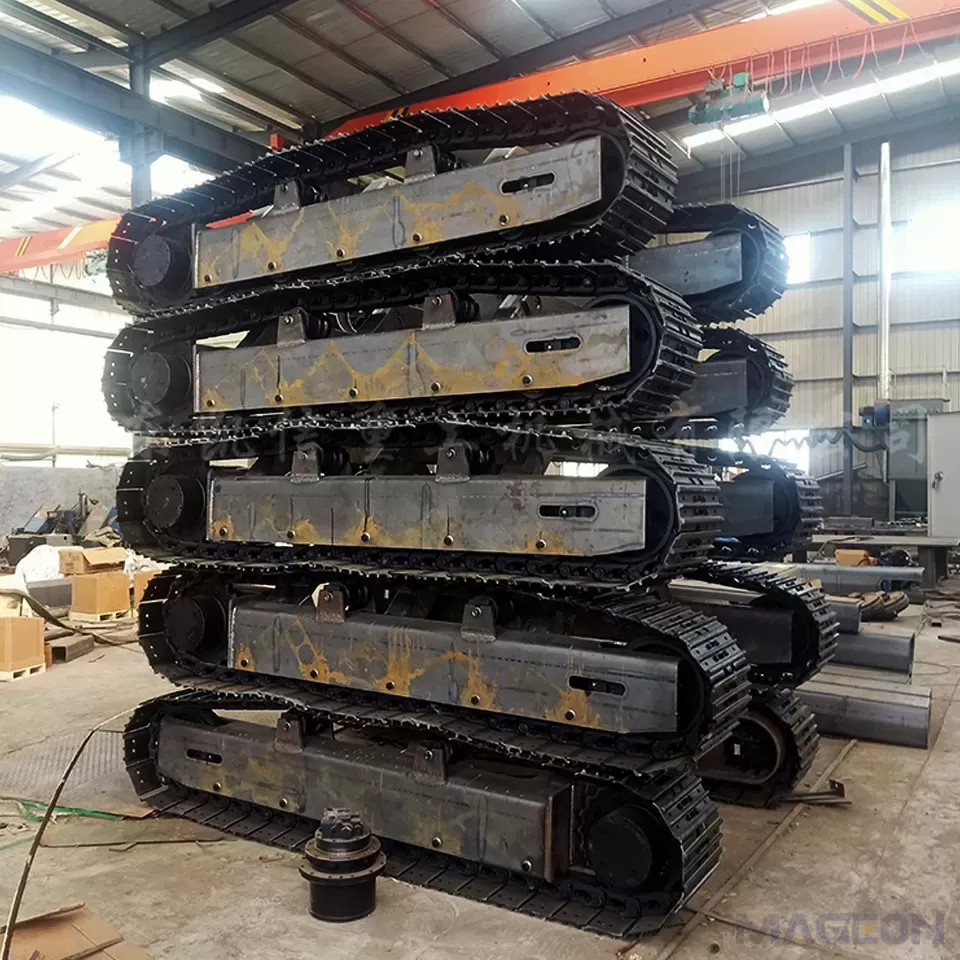

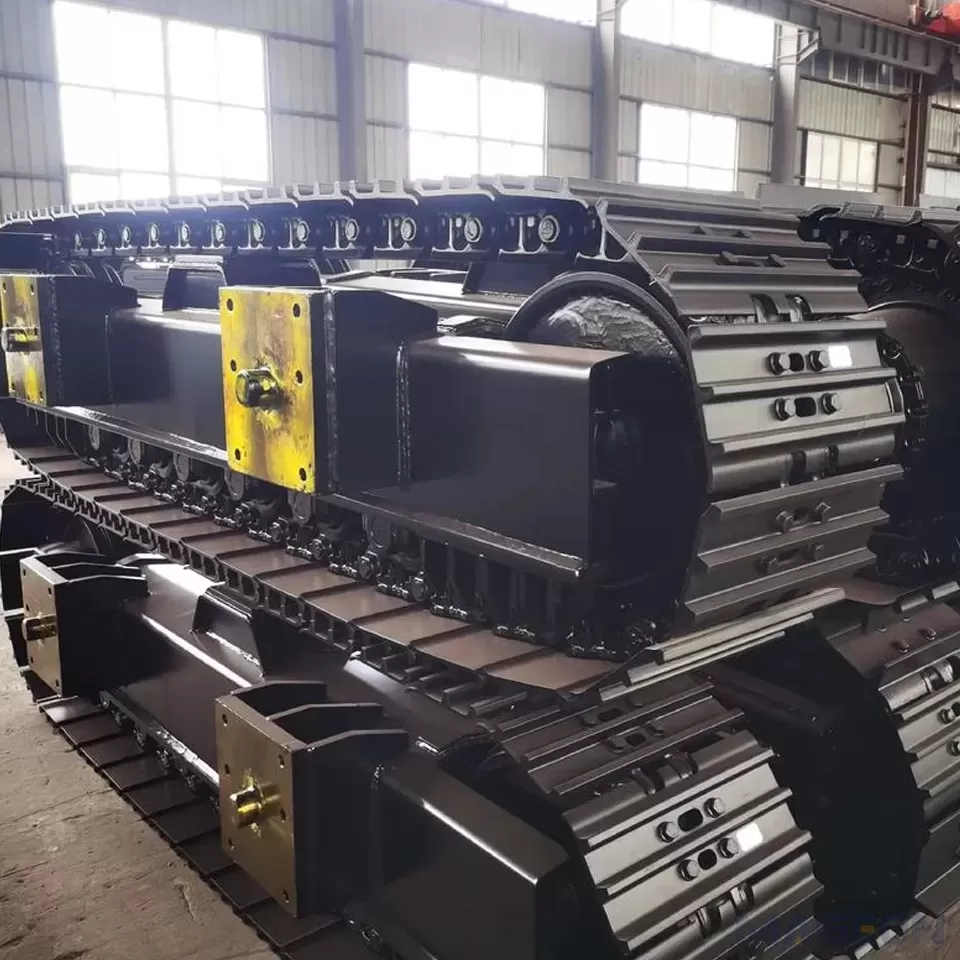

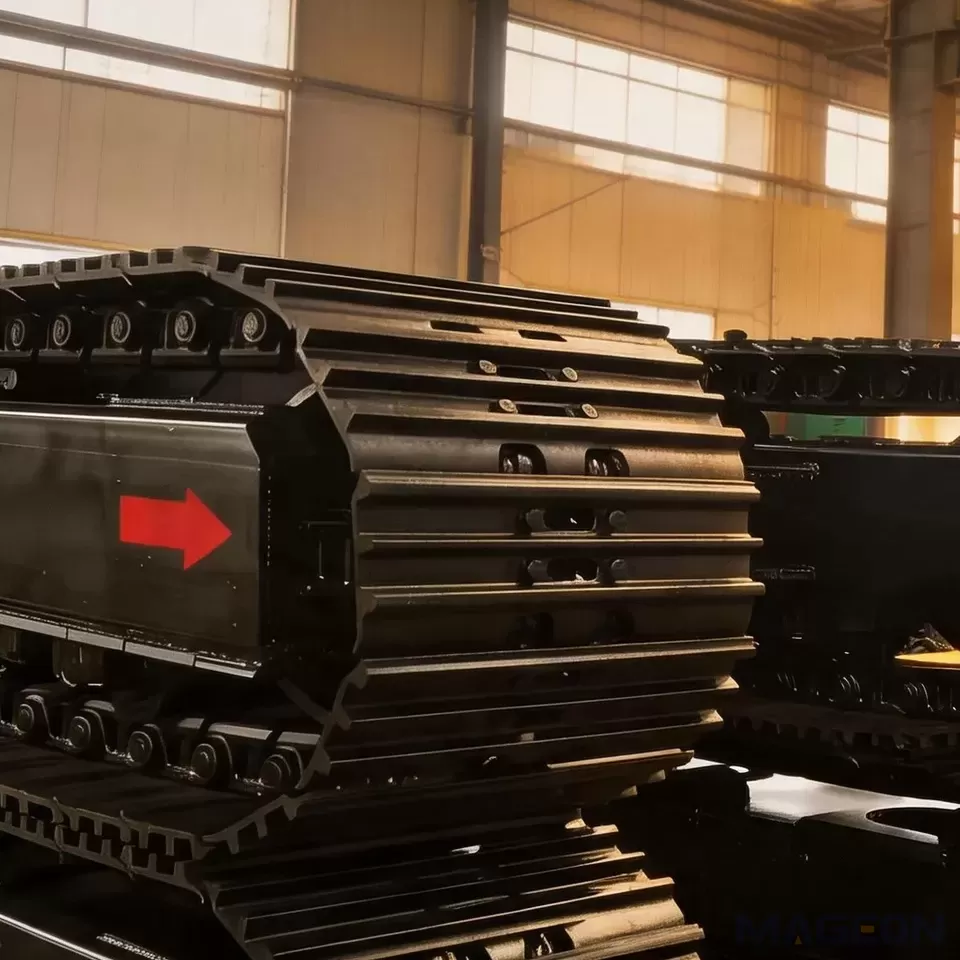

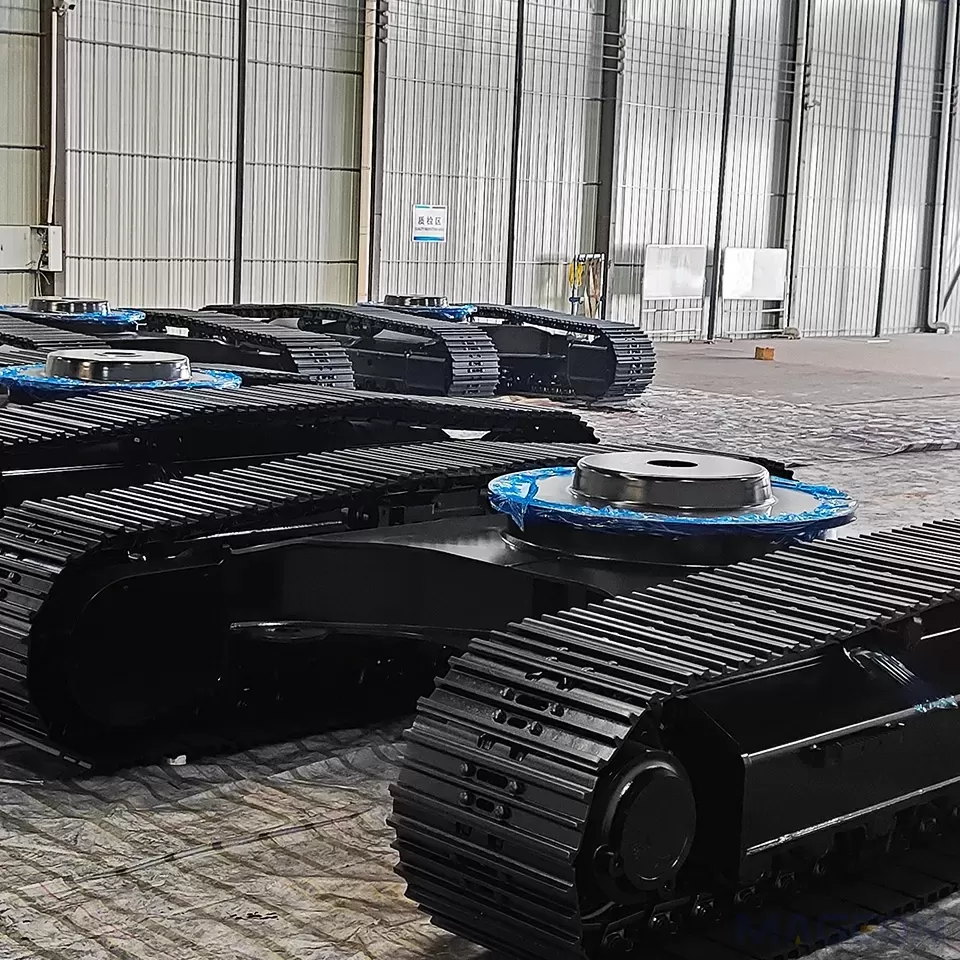

Steel Track Undercarriage
Load capacity: 0.5 - 150 tons, capable of bearing heavy loads. It is suitable for muddy, sandy, rocky and other harsh terrains. The steel chain features excellent wear resistance and anti-fracture performance.
Classic models:
1. SJ400B: Dimension 1998×300×475 mm, Load 4 Ton, Weight 950 kg, Speed 2-4 km/h, Output Torque 4155NM, Climbing Ability ≤30°
2. SJ4500B: Dimension 4556×500×858 mm, Load 40-45 Ton, Weight 6500 kg, Speed 0.8 km/h, Output Torque 74500NM, Climbing Ability ≤30°
3. SJ6000B: Dimension 4985×500×888 mm, Load 60-65 Ton, Weight 8300 kg, Speed 0.8 km/h, Output Torque 74500NM, Climbing Ability ≤30°
Product Structure & Quality

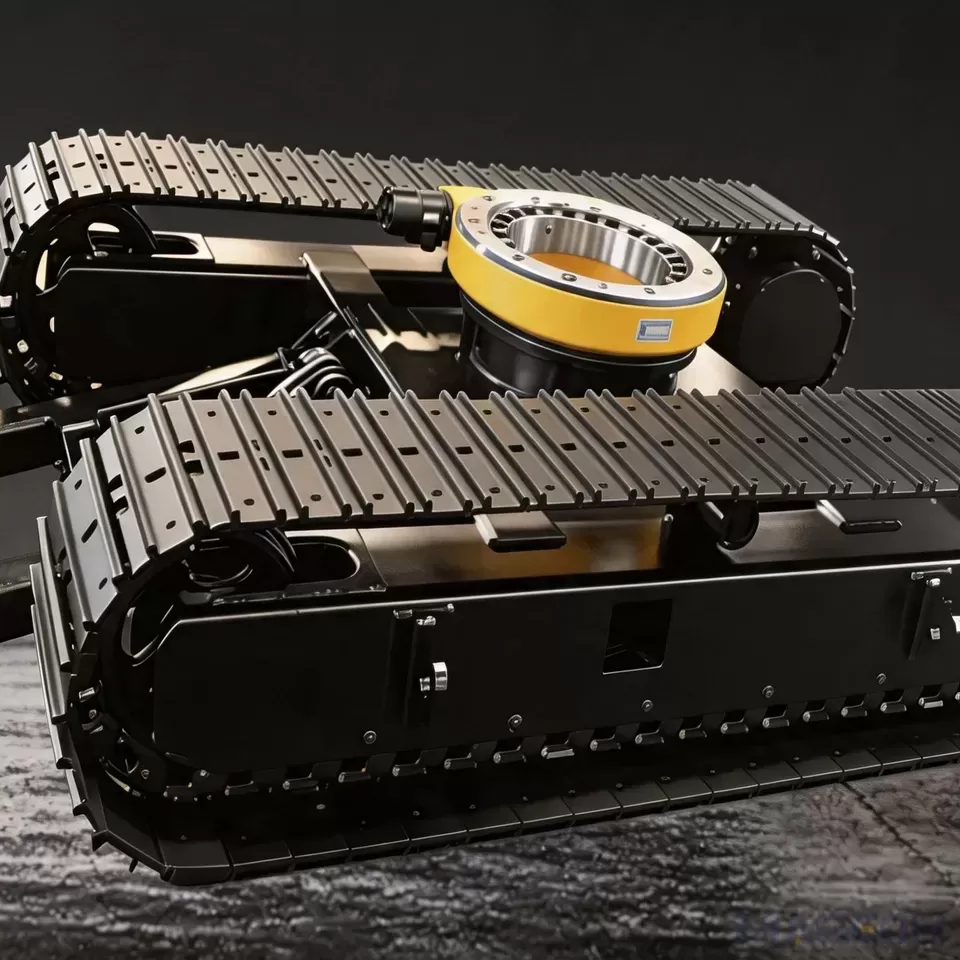

The crawler undercarriage is assembled with track rollers, top rollers, front idlers, sprockets and tension devices. Adopting advanced manufacturing technology, it has compact structure, stable performance, long service life, simple operation and low energy consumption. It supports factory inspection and product testing to guarantee overall quality.
Customized Product Solutions
One-Stop Solution
Our
company has a complete product category which means you can find
everything you need here. Such as track roller, top roller, idler,
sprocket, tension device, rubber track or steel track etc. With the
competitive prices we offer, your purchase will be time-saving and
economic.

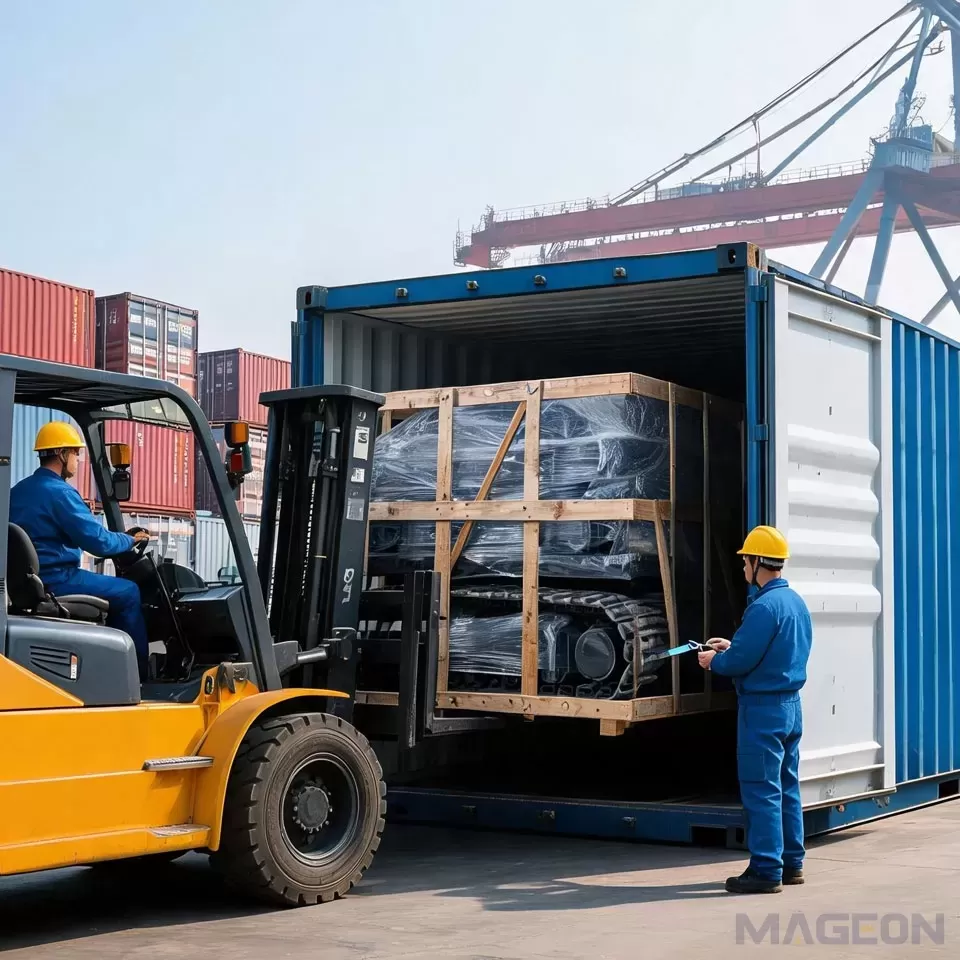

Packaging & Delivery

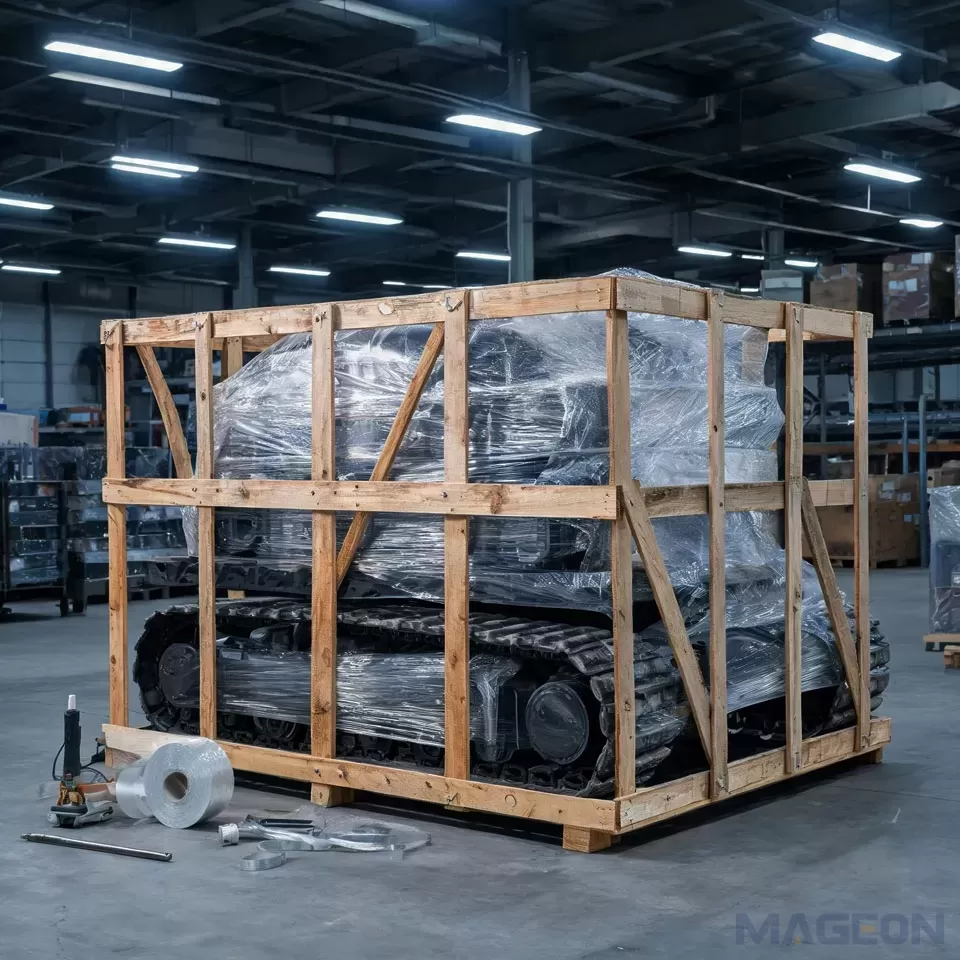

MAGEON track undercarriage packaging: Steel pallet with wrapping fill, or standard wooden pallet.
- Port: Shanghai Port or as per customer requirements
- Shipping Methods: Ocean freight, air freight, land transportation
- Lead Time:
| Order Quantity (sets) | 1 - 1 | 2 - 3 | >3 |
| Est. Lead Time (days) | 20 | 30 | To be negotiated |
Customized steel tracked vehicle products | OEM & ODM Service
Tailored solutions for steel tracked vehicles and distributors worldwide
● Why Choose Our Custom Service
We focus on high-quality steel track undercarriage products for the global engineering machinery market, supporting full-chain customization from design to production.
Stable MOQ, on-time delivery, professional after-sales, helping your brand stand out in the competitive global market.
● Our Customization Scope
We provide flexible customization to meet your brand positioning and market demand.
1. Logo & Marking Customization◆ Laser engraving / Electrochemical etching / Nameplate welding / Forged stamping.
◆ Custom position, size, and style according to your brand standards.
◆ Suitable for steel track undercarriage, track chassis, track shoes, idlers, rollers, etc.
2. Size Customization◆ Custom track width, track length, chassis height, load capacity and installation size.
◆ Suitable for mini excavators, drilling rigs, crawler carriers, and various engineering equipment.
◆ Perfect for machinery manufacturers, OEM factories, brands, and equipment dealers.
3. Material & Performance Customization◆ High-strength alloy steel, wear-resistant steel plate, reinforced track and supporting parts.
◆ High load-bearing, wear-resistant, durable materials that meet EU & US industrial standards.
◆ Support material sample and performance testing before mass production.
4. Packaging Customization◆ Custom fumigation-free wooden box, iron pallet, packaging belt and shipping mark.
◆ Print brand logo, product model, parameter, serial number and handling warnings.
◆ Compliant with international logistics and cross-border transportation requirements.
● Custom MOQ & Production Time
Minimum Order Quantity (MOQ)◆ Logo & marking customization: 1–10 sets.
◆ Size / material customization: 1–10 sets.
◆ Full set customization: 1–5 sets.
◆ (MOQ can be adjusted according to product category, contact us for details).
Production Cycle◆ Sample proofing: 10–15 working days.
◆ Mass production: 20–35 working days after sample confirmed.
◆ Shipping: Sea / Land / Air / Express supported.
● Customization Process
Step One. Inquiry & Demand ConfirmationTell us product type, load capacity, size, quantity and application scenario.
Step Two. Design & QuotationFree design draft + detailed quotation within 24–48 hours.
Step Three. Sample ProductionMake physical sample for your confirmation.
Step Four. Sample ApprovalAdjust until you are completely satisfied.
Step Five. Mass ProductionStrict quality control during production.
Step Six. Inspection & ShipmentFinal inspection, packaging, and on-time delivery.
Step Seven. After-Sales SupportProfessional support for installation, debugging, maintenance and after-sale issues.
● Custom Case Show (Real Photos)
Please leave your customization requirements, and we will contact you as soon as possible!
Leave your requirements, we'll get back to you within 24 hours.
