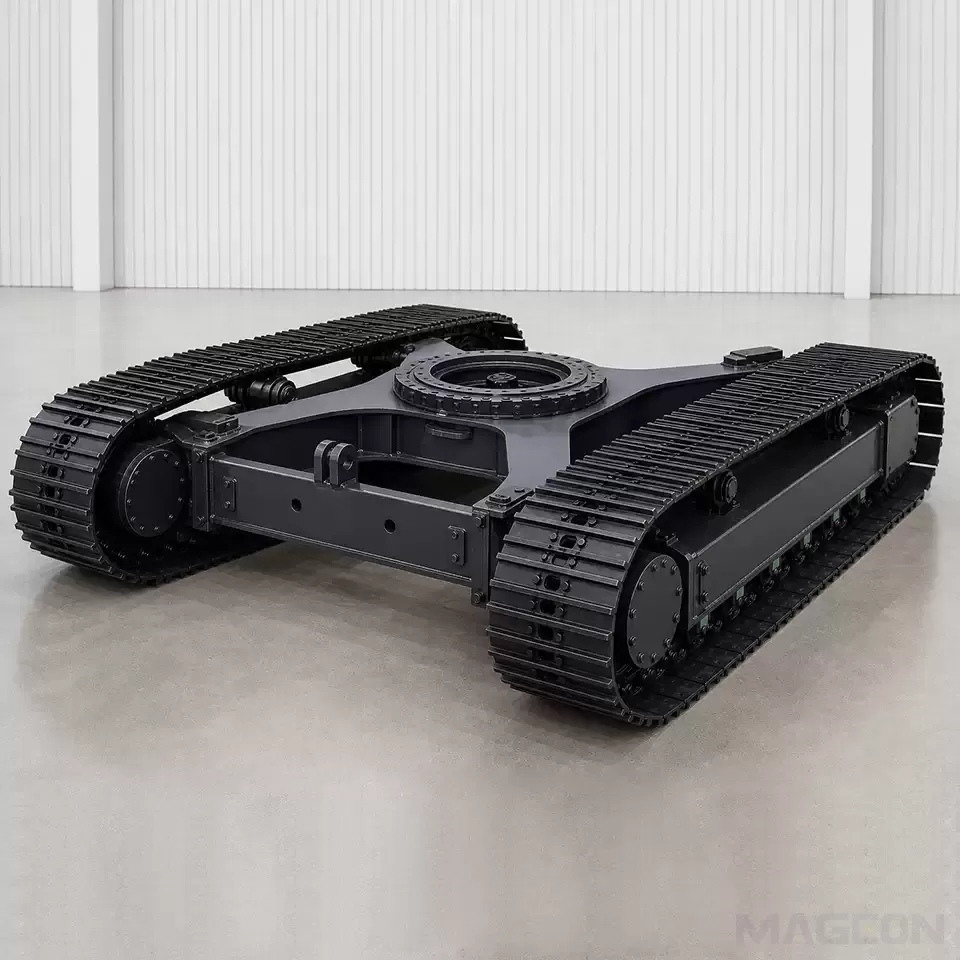

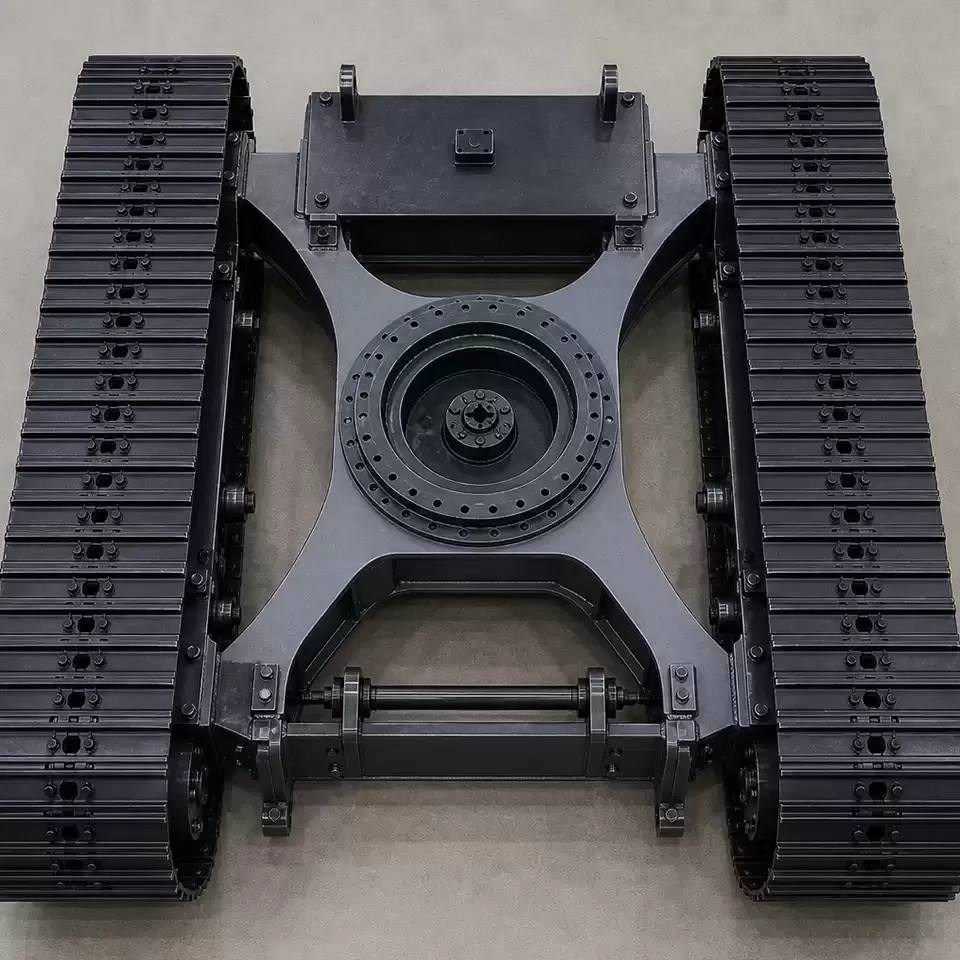

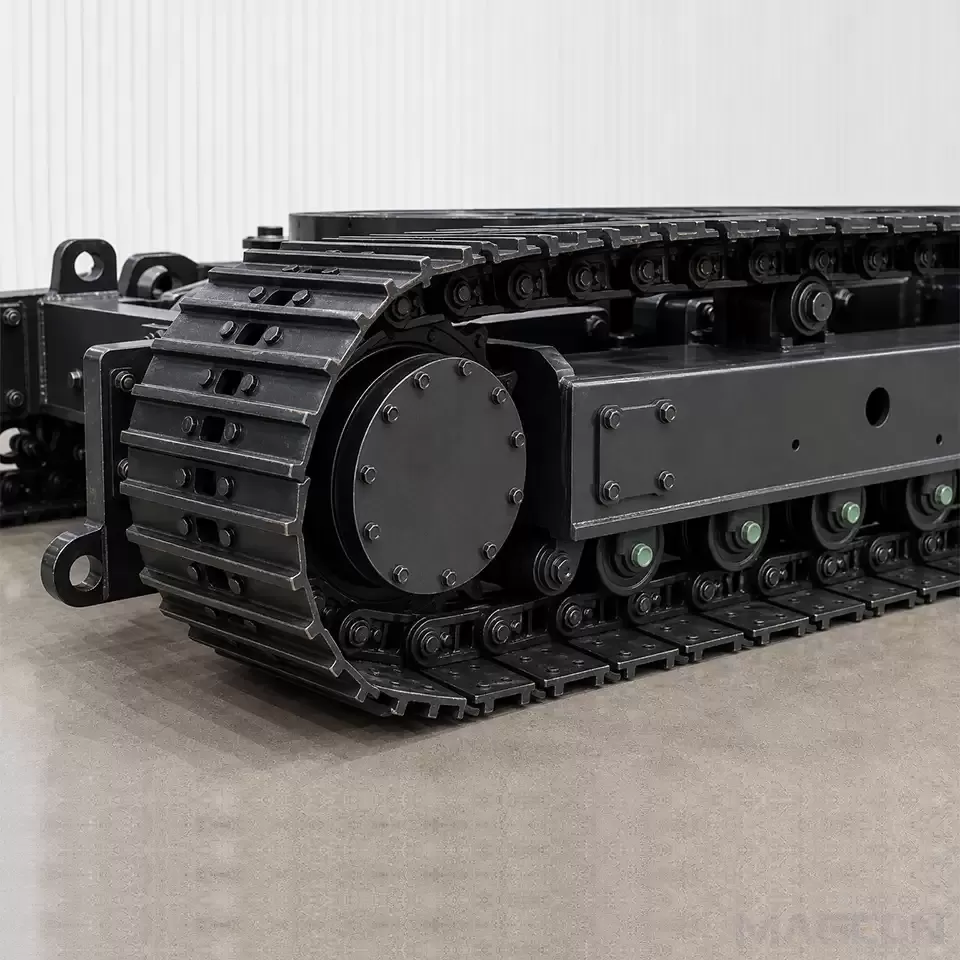

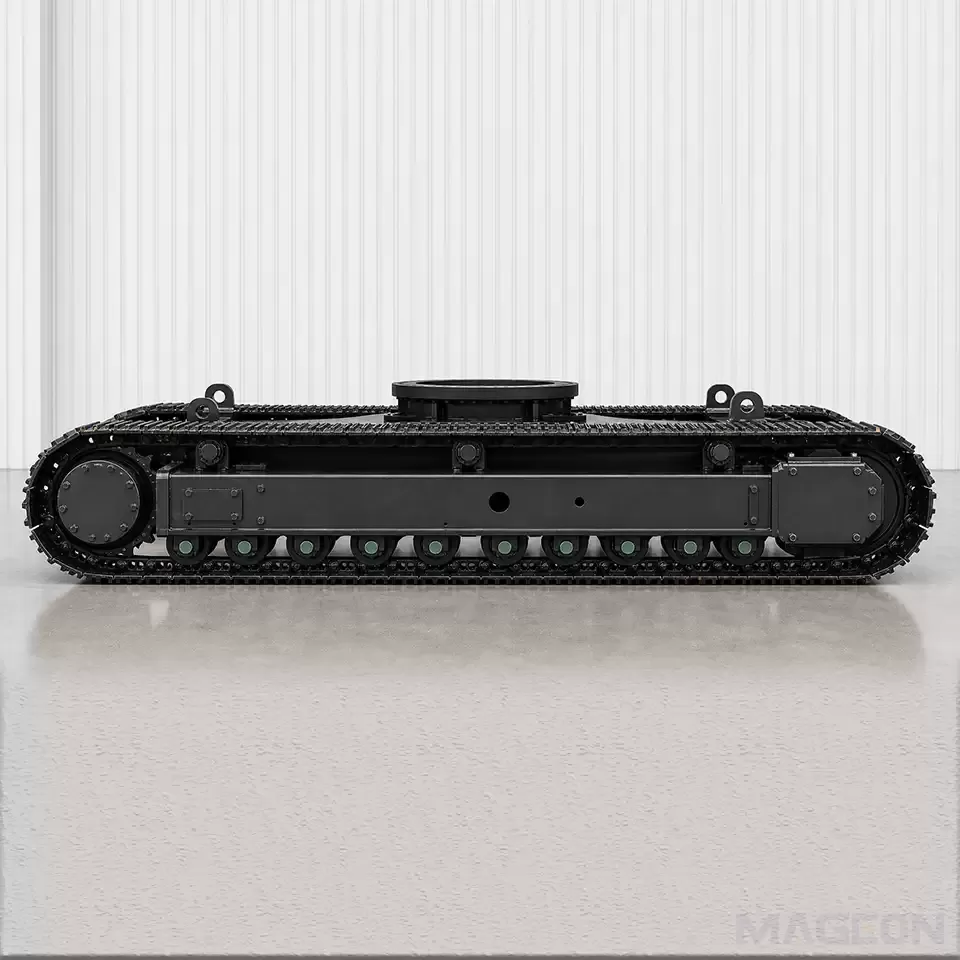

MAGEON Excavator Undercarriage
Low Downtime Excavator Chassis for Custom, Replacement & Special Applications
Excavator track undercarriage system covering three core needs: custom-built, direct replacement, and special-application. Compatible with major brands (Caterpillar, Komatsu, SANY, XCMG, etc.) — replacement units are bolt-on ready, minimizing machine downtime.
Machine Class：1 - 80 tons
Load Capacity：1 - 80 tons
Track Pitch：101.6 / 135 / 154 / 171 / 190 / 202 / 215.9 / 228.6 / 260 mm
Track Shoe Width：300 - 800 mm
Track Shoe Type：Single grouser / triple grouser / flat / swamp type / rubber block
Ground Clearance：300 - 600 mm
Ground Pressure：≤ 0.03 - 0.07 MPa
Price: Submit your requirements and contact us for the lowest quote
Excavator track undercarriage system covering three core needs: custom-built, direct replacement, and special-application. Compatible with major brands (Caterpillar, Komatsu, SANY, XCMG, etc.) — replacement units are bolt-on ready, minimizing machine downtime.
Full compatibility with major brands
— Caterpillar, Komatsu, Hitachi, Doosan, SANY, XCMG and more; precision bolt-on fit for direct replacement.
Three product lines
— Custom undercarriages (new equipment OEM), replacement undercarriages (equipment overhaul), and special-application undercarriages (swamp, tunnel, demolition, etc.).
Silent / road-friendly track options
— Rubber or polyurethane track shoes available for urban construction to reduce road damage and noise.
Undercarriage upgrade service
— Performance upgrade solutions for older equipment: increased load capacity, wear resistance, and terrain adaptability.
Complete undercarriage assembly
— Sprockets, idlers, track rollers, carrier rollers, and track chains — delivered as a full set.
Application field
| Typical Application | |
|---|---|
| Tracked excavator (mini / medium / large) | Earthmoving, mining overburden, municipal works |
| Demolition / long-reach excavator | Building demolition, river dredging |
| Material handler / scrap handler | Scrap processing, port bulk handling |
| Swamp / wetland excavator | Wetland construction, tidal flat operations |
| Tunnel excavator |
Customized steel tracked vehicle products | OEM & ODM Service
Tailored solutions for steel tracked vehicles and distributors worldwide
● Why Choose Our Custom Service
We focus on high-quality steel track undercarriage products for the global engineering machinery market, supporting full-chain customization from design to production.
Stable MOQ, on-time delivery, professional after-sales, helping your brand stand out in the competitive global market.
● Our Customization Scope
We provide flexible customization to meet your brand positioning and market demand.
1. Logo & Marking Customization◆ Laser engraving / Electrochemical etching / Nameplate welding / Forged stamping.
◆ Custom position, size, and style according to your brand standards.
◆ Suitable for steel track undercarriage, track chassis, track shoes, idlers, rollers, etc.
2. Size Customization◆ Custom track width, track length, chassis height, load capacity and installation size.
◆ Suitable for mini excavators, drilling rigs, crawler carriers, and various engineering equipment.
◆ Perfect for machinery manufacturers, OEM factories, brands, and equipment dealers.
3. Material & Performance Customization◆ High-strength alloy steel, wear-resistant steel plate, reinforced track and supporting parts.
◆ High load-bearing, wear-resistant, durable materials that meet EU & US industrial standards.
◆ Support material sample and performance testing before mass production.
4. Packaging Customization◆ Custom fumigation-free wooden box, iron pallet, packaging belt and shipping mark.
◆ Print brand logo, product model, parameter, serial number and handling warnings.
◆ Compliant with international logistics and cross-border transportation requirements.
● Custom MOQ & Production Time
Minimum Order Quantity (MOQ)◆ Logo & marking customization: 1–10 sets.
◆ Size / material customization: 1–10 sets.
◆ Full set customization: 1–5 sets.
◆ (MOQ can be adjusted according to product category, contact us for details).
Production Cycle◆ Sample proofing: 10–15 working days.
◆ Mass production: 20–35 working days after sample confirmed.
◆ Shipping: Sea / Land / Air / Express supported.
● Customization Process
Step One. Inquiry & Demand ConfirmationTell us product type, load capacity, size, quantity and application scenario.
Step Two. Design & QuotationFree design draft + detailed quotation within 24–48 hours.
Step Three. Sample ProductionMake physical sample for your confirmation.
Step Four. Sample ApprovalAdjust until you are completely satisfied.
Step Five. Mass ProductionStrict quality control during production.
Step Six. Inspection & ShipmentFinal inspection, packaging, and on-time delivery.
Step Seven. After-Sales SupportProfessional support for installation, debugging, maintenance and after-sale issues.

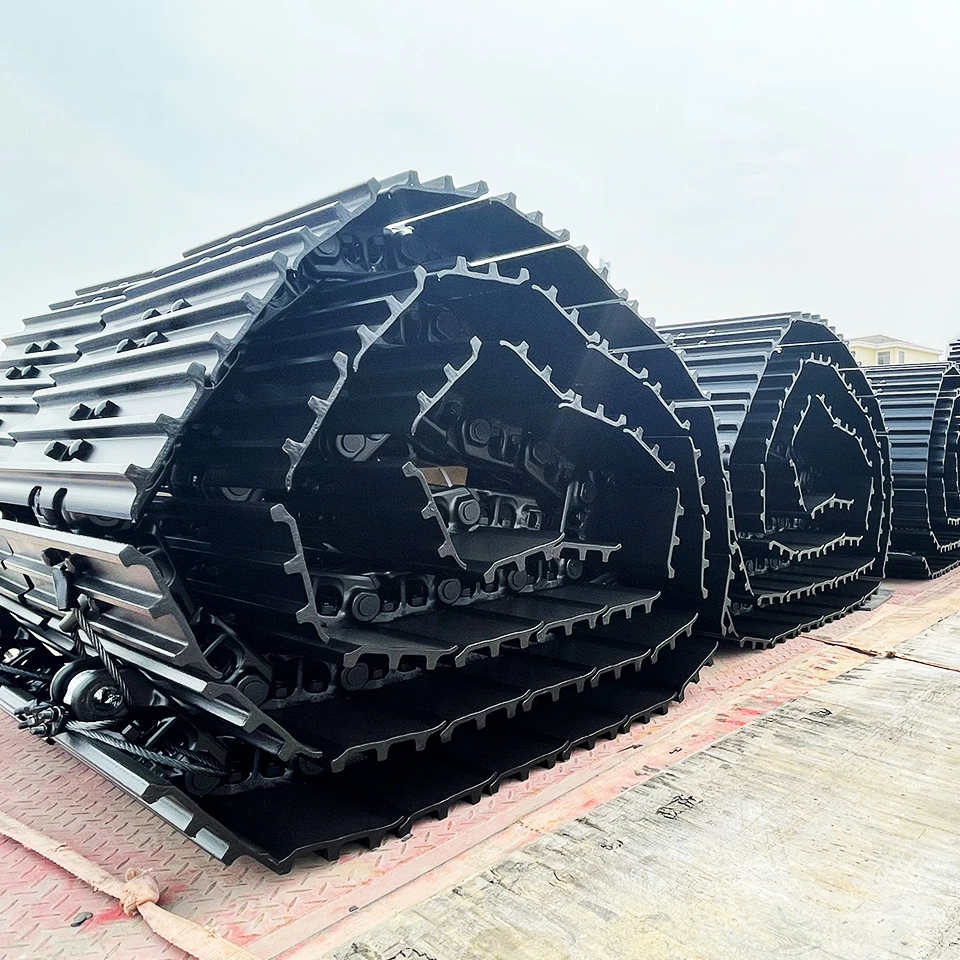

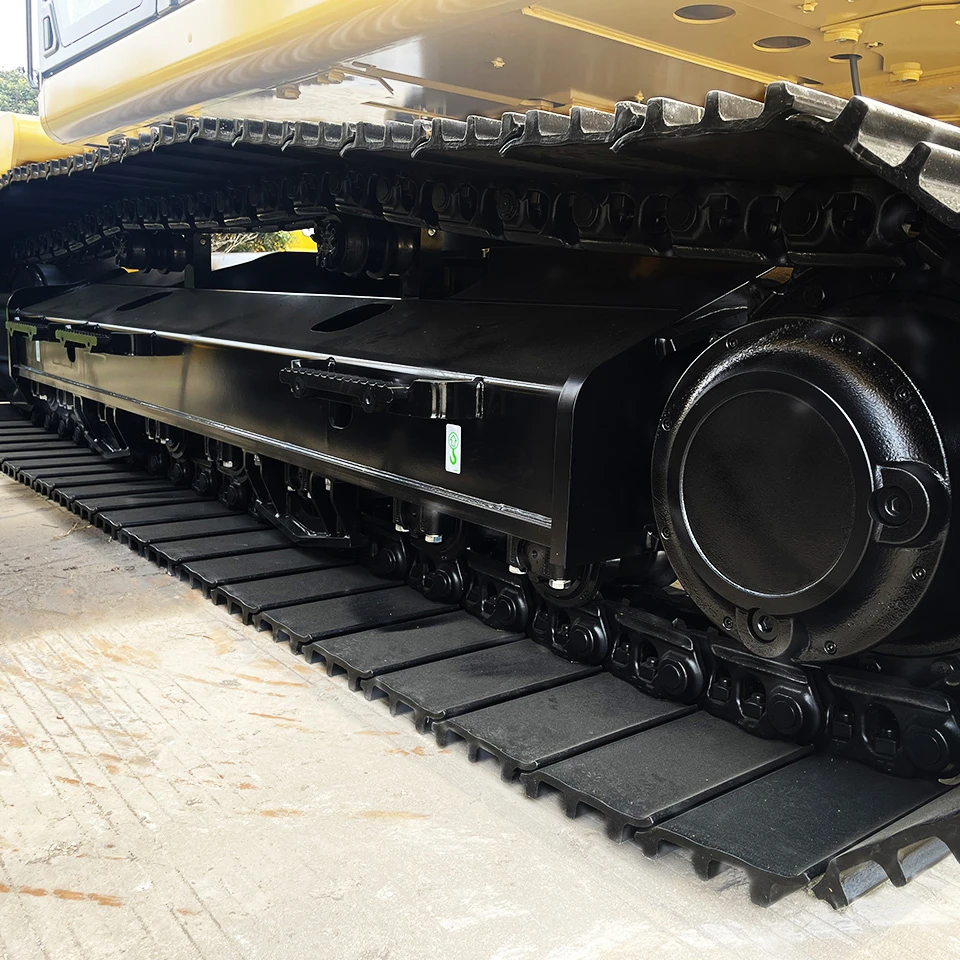

● Custom Case Show (Real Photos)
Please leave your customization requirements, and we will contact you as soon as possible!
Leave your requirements, we'll get back to you within 24 hours.
