Construction Triangular Rubber Tracked Chassis for Skid Steer Loader

MAGEON construction triangular rubber tracked chassis is specially designed for skid steer loaders, compatible with Bobcat, XCMG, Liugong, Case, Caterpillar, Lonking, Sanhe Intelligence and other mainstream brands, as well as customized crawler skid loaders. Adopting a high-drive triangular structure and high-strength rubber track with steel cord, it features extremely low ground pressure, excellent traction and strong multi-terrain adaptability. It is an ideal track conversion solution for construction, municipal engineering, landscaping and snow removal scenarios, supporting full customization of specifications and configurations.

Product Overview

This triangular rubber tracked chassis combines the flexibility of skid steer with the high passability of crawler chassis. Its core advantage comes from the synergy of the "high-drive" triangular structure and rubber tracks. It can be directly used as a track conversion system for wheeled skid steer loaders, significantly improving the equipment's off-road capability and working scope.

Structural Features

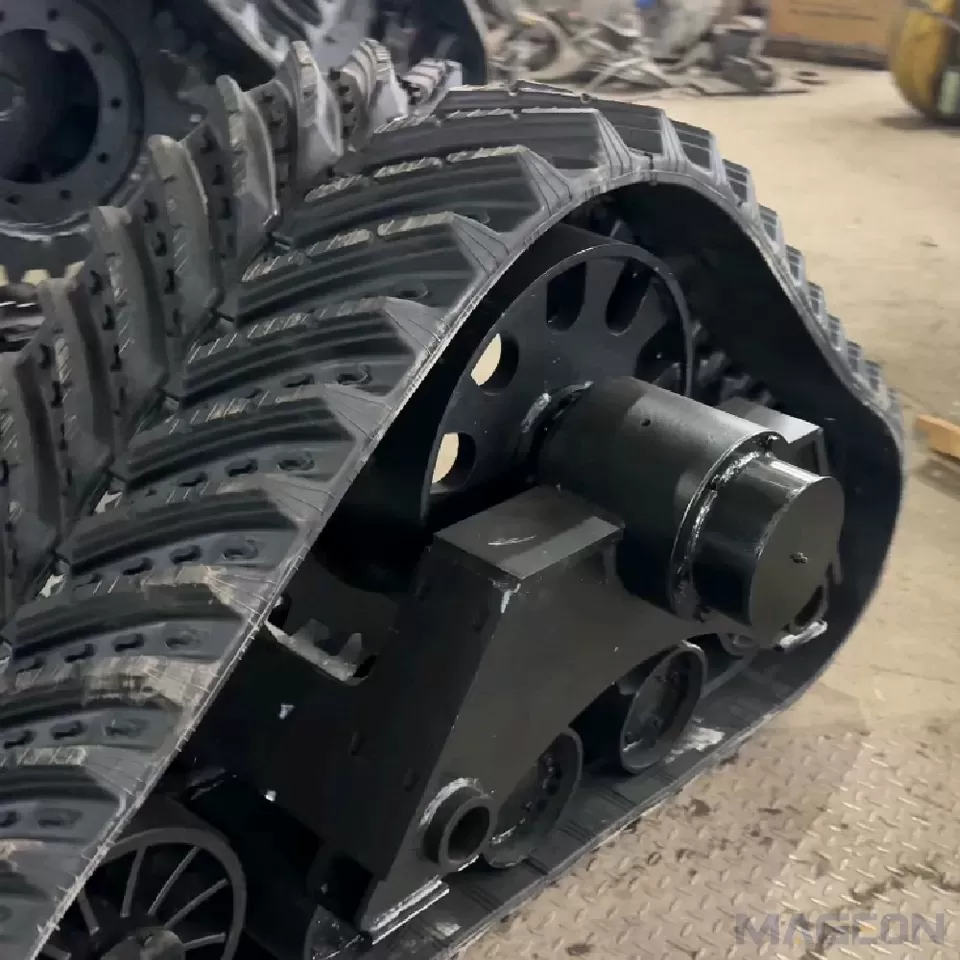

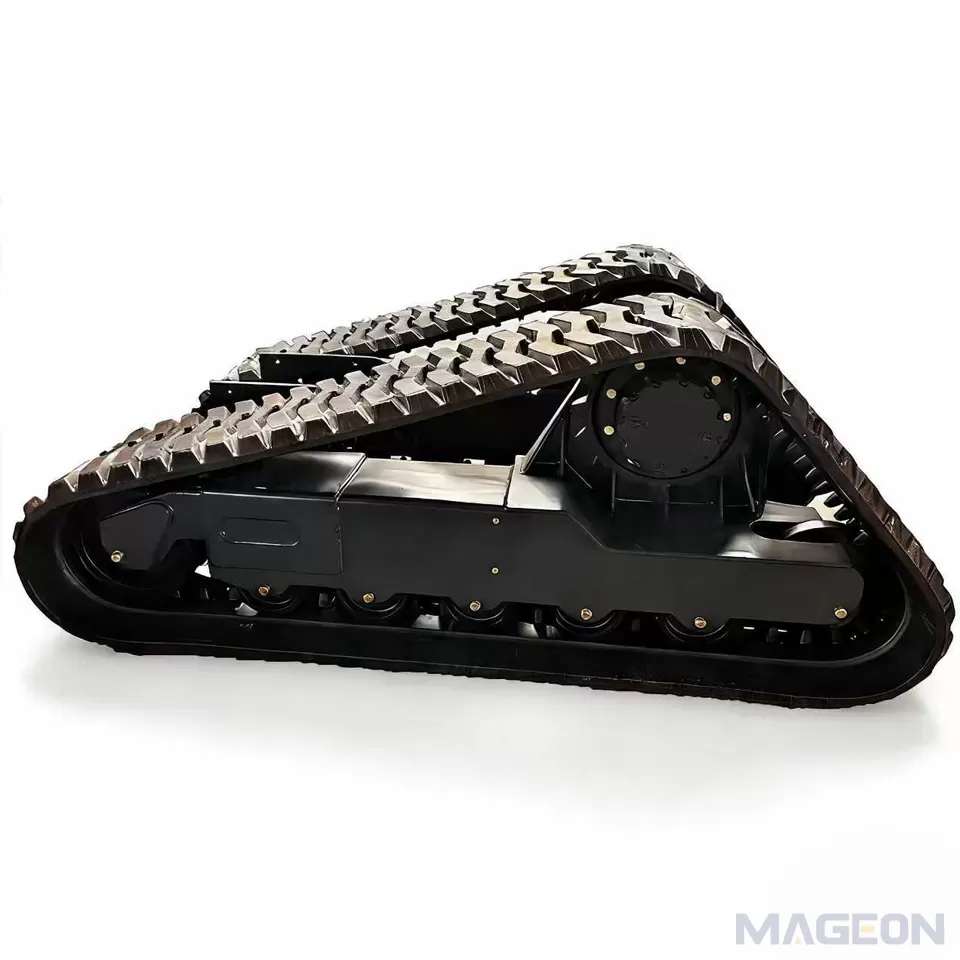

1、High-Drive Triangular Design

The drive wheel is located at the top of the triangle, avoiding direct impact from ground debris and stones. This structure separates the bearing load from the driving force, effectively protecting the reducer and hydraulic motor and extending the service life of core transmission parts.

2、High-Strength Rubber Track

The rubber track is internally embedded with high-strength steel wire cord and steel core, ensuring excellent tensile strength and tear resistance, and maintaining stable performance under heavy load and long-time operation.

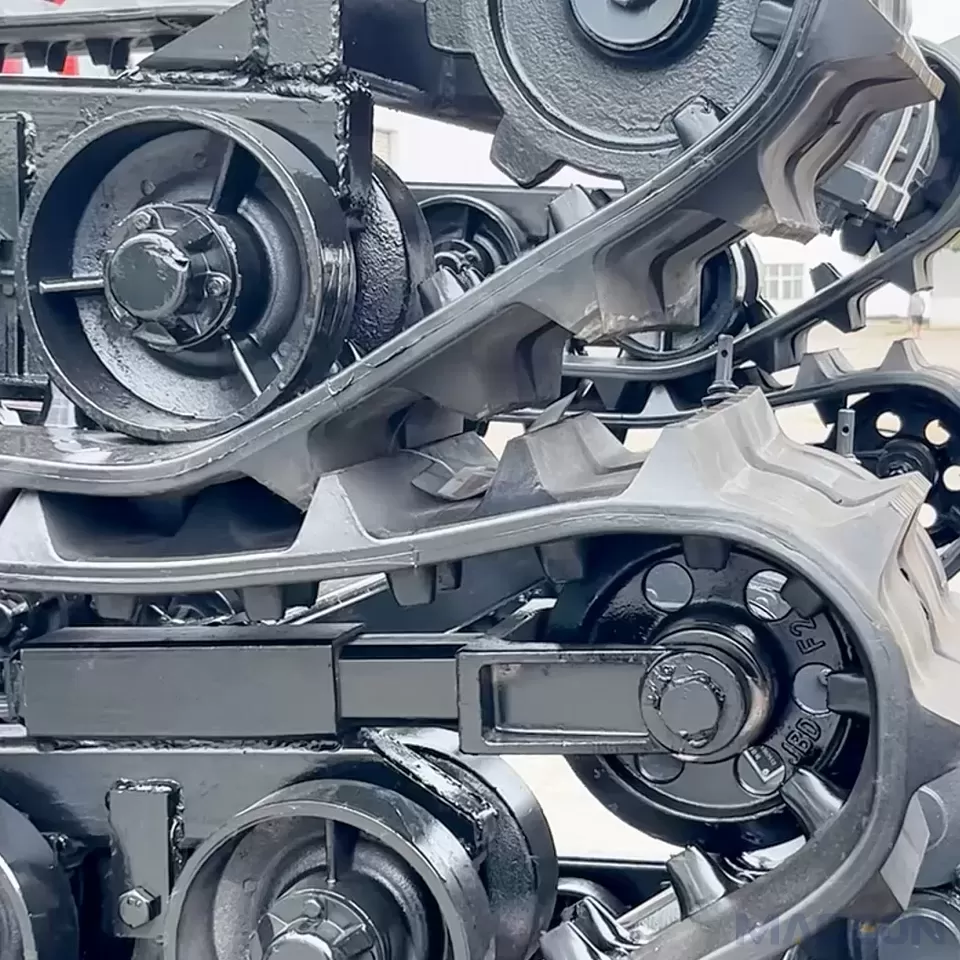

3、Support & Suspension System

The chassis is composed of track rollers, idlers and drive wheels. High-end configurations can be equipped with a suspension system, which can float adaptively according to terrain, improving operation comfort and reducing the impact of uneven road surfaces on the equipment.

Core Performance Advantages

1、Ultra-Low Ground Pressure

Compared with tire structures, rubber tracks have a much larger contact area, which can reduce ground pressure by up to 75%. It enables equipment to operate on muddy, sandy, snowy or delicate lawns without sinking or damaging the ground surface.

2、Excellent Traction & Stability

It provides stronger pushing and digging force than wheel loaders on soft ground. The lower center of gravity and wide support surface enhance the anti-tilt ability during slope operation, ensuring safer construction.

3、Strong Multi-Terrain Adaptability

The rubber material reduces vibration and noise, suitable for outdoor construction; it can also drive on hard surfaces such as asphalt and concrete roads without damaging the road surface, realizing one machine for multiple scenarios.

Common Track Pattern Options

Selecting the appropriate pattern according to the operating environment can effectively extend the service life of the chassis:

Block Pattern: General-purpose type, suitable for paved roads, gravel ground and hard soil, with good wear resistance.

C-Lug Pattern: Provides excellent grip in muddy and soft soil conditions.

Bar Pattern: Causes minimal disturbance to the ground, suitable for delicate landscaping and snow removal operations.

Zig-Zag Pattern: Specially designed for extreme muddy or slippery environments, with strong mud removal capacity.

Key Maintenance Points

Track Tension Check: Loose tracks may cause tooth jumping or derailment, while over-tight tracks will aggravate wear and power loss. Regular adjustment is required.

Drive Gear Wear Detection: Regularly measure the wear of drive wheel teeth. When the wear exceeds 75%, replacement is necessary to avoid damaging the track steel core.

Foreign Object Cleaning: Clean stones and debris inside the chassis in time to prevent rubber tearing or idler damage caused by extrusion.

Full Range Load Coverage

MAGEON track systems support multi-functional applications, with load capacity ranging from 300 kg to 120,000 kg. Optional configurations include rubber track, steel track and interchangeable track systems. All series feature low ground pressure, 360° steering and excellent off-road maneuverability.

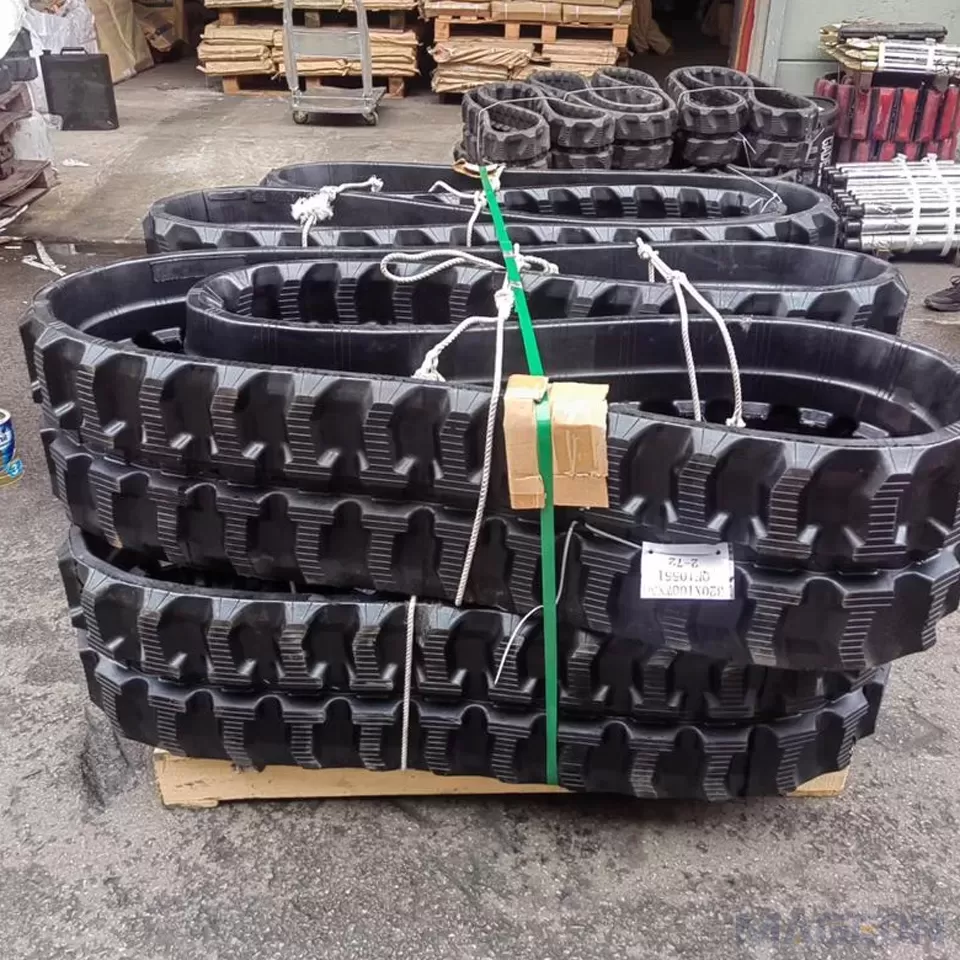

Packaging & Delivery

Packaging: Standard export wooden pallet with shockproof and rust-proof treatment

Lead Time: Standard models about 25-30 days; customized products subject to order complexity

Port: Shanghai Port or customer-specified port

MOQ: 1 set, OEM & ODM customization supported

Frequently Asked Questions (FAQ)

Q1: Is this triangular rubber chassis compatible with my Bobcat skid steer loader?

A: Yes. Our triangular rubber tracked chassis is compatible with Bobcat, XCMG, Liugong, Case, Caterpillar and other mainstream brands. You only need to provide the specific model of your equipment, and we will match the corresponding connection frame and confirm the installation dimensions.

Q2: What is the difference between a triangular track chassis and an ordinary crawler chassis?

A: The triangular chassis adopts a high-drive structure with the drive wheel at the top, which can better avoid ground impact and protect the transmission parts. It also has a larger grounding area and lower ground pressure, making it more suitable for soft ground and fragile road surface operations.

Q3: Can I choose different track patterns?

A: Yes. We provide four common patterns: block, C-Lug, bar and zig-zag. We can recommend the most suitable pattern according to your main working scenarios such as construction, landscaping or snow removal.

Q4: Can the size and load capacity be customized?

A: Yes. Our track system covers a load range from 300 kg to 120 tons. We can customize the overall dimensions, track width, load capacity and connection structure according to your actual equipment requirements.

Q5: Is it difficult to install this track conversion chassis?

A: The installation is simple. We will provide detailed installation drawings and operation manuals. You can complete the modification according to the instructions. If necessary, we can also provide remote video guidance.

Q6: What is the service life of the rubber track?

A: Under normal use and standard maintenance, the service life of the rubber track is usually 2-3 years. The specific service life will be affected by factors such as working environment, load intensity and maintenance frequency.

Q7: What is your warranty policy?

A: We provide a 1-year or 1000-working-hour warranty (whichever comes first) for the whole chassis. For quality problems caused by manufacturing defects under normal use, we provide free replacement of spare parts and technical support.

Q8: Can this chassis run on asphalt roads? Will it damage the road surface?

A: Yes, it can. The rubber track material is soft and will not damage asphalt or concrete pavement. It can realize the transition between construction sites and urban roads, with strong scene adaptability.

Q9: What is the minimum order quantity? Do you support sample order?

A: The MOQ is 1 set. We support sample trial order. For bulk purchase, you can contact us for a more favorable quotation.

Q10: How long is the delivery time?

A: For standard models, the delivery time is about 25-30 days after receiving the deposit. For customized products with special specifications, the delivery time is 30-45 days, subject to the specific order requirements.
