Complete Guide to Track Undercarriage Applications Across Five Core Industries: MAGEON‘s Industry Map for Heavy Machinery’s “Steel Tracks”

Executive Summary

From underground mine tunnels hundreds of metres deep to muddy paddy fields in the south, from fire scene ruins to solar piling job sites — the track undercarriage is everywhere. As a globally leading manufacturer of Custom Tracked Chassis, MAGEON draws on engineering experience covering five industries and hundreds of real-world projects to systematically map out the application landscape and selection logic for track undercarriages across construction, mining, agriculture & forestry, emergency rescue, and customised special-purpose equipment — helping industry users find the most suitable travel solution for their specific needs.

1. Engineering & Construction — The Largest Market for Track Undercarriages

Engineering and construction is the largest application market for track undercarriages by volume, covering everything from foundation construction to building demolition.

1.1 Piling Machinery

Solar piling rigs, anchor drilling rigs, jet grouting rigs, and other piling equipment often operate on unhardened wasteland, slopes, or muddy job sites. MAGEON‘s track undercarriages for these equipment types optimise track width and pitch design to control ground pressure within reasonable limits, effectively preventing equipment from sinking on soft ground.

Typical Configuration：

· Undercarriage Type：Primarily Steel Crawler Undercarriage

· Load Range：3 – 30 tons

· Key Requirements：Low-speed high torque, climbing ability ≥25°

1.2 Drilling Equipment

Water well drills, DTH drills, and tunnel drilling rigs frequently encounter complex terrain such as gravel slopes and riverbeds during field operations. MAGEON‘s Drilling Rig Undercarriage can be customised based on drill type, drilling depth, and relocation frequency, ensuring operational stability while maintaining transport convenience.

Typical Configuration：

· Undercarriage Type：Steel / Rubber Track Undercarriage (depending on conditions)

· Load Range：0.5 – 50 tons

· Key Requirements：High stability, low ground pressure

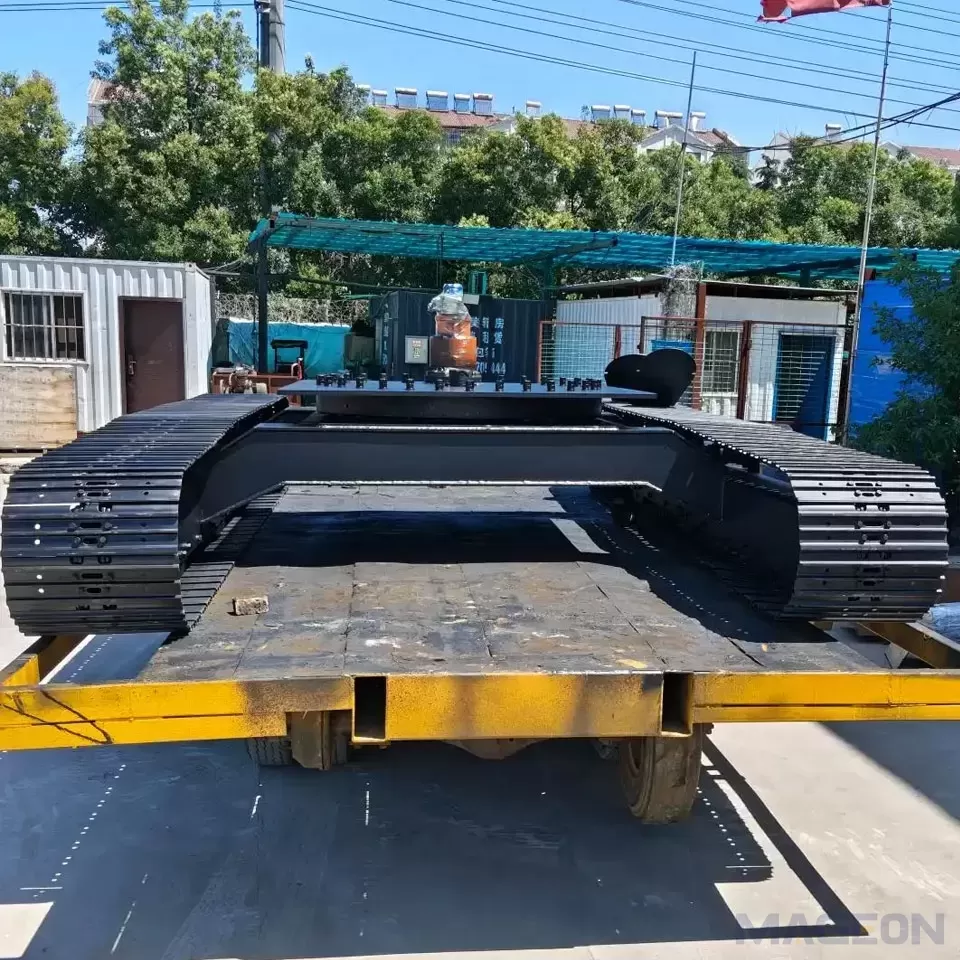

1.3 Excavation & Earthmoving Equipment

Mini excavators, bulldozers, and loaders are indispensable for urban pipeline renovation and rural infrastructure projects. MAGEON‘s Excavator Conversion Undercarriage can upgrade the chassis of older wheeled or tracked excavators, revitalising equipment performance at a fraction of the cost of new machinery.

1.4 Crushing & Screening Equipment

Mobile jaw crushers, cone crushers, impact crushers, and other equipment require frequent relocation during construction waste processing and mining operations. MAGEON‘s heavy-duty steel undercarriages feature high-load design and impact-resistant structures that effectively absorb vibration generated by the crusher during operation, extending overall equipment life.

2. Mining & Underground Engineering — The “Extreme Testing Ground” for Steel Tracks

The mining environment is the “extreme testing ground” for track undercarriages — heavy loads, high abrasion, steep slopes, narrow tunnels — every factor tests the undercarriage‘s performance.

2.1 Underground Mining Equipment

Mucking loaders, rock loaders, and underground transport vehicles operate in narrow tunnels where space is confined but loads are not light. MAGEON‘s steel crawler undercarriages for underground equipment achieve maximum load capacity and traction within compact dimensions, with track shoes cast from wear-resistant alloy steel to effectively handle the impact and abrasion of ore fragments.

Key Data： The average service life of steel crawler undercarriages in underground conditions is 3,000-5,000 hours, but can shorten to around 2,000 hours in highly abrasive mining areas — replacement schedules must be based on actual wear conditions.

2.2 Open-Pit Mining Equipment

Tracked drilling rigs, mini roadheaders, and mining dump trucks operate on gravel roads and steep slopes in open-pit mines, demanding extremely high traction and lateral stability from the undercarriage. MAGEON‘s Rotary Drilling Rig Chassis undertakes drilling tasks with large diameters, deep holes, and high rotary torque in open-pit mines — the chassis design must simultaneously satisfy load-bearing, torsional resistance, and travel functions.

2.3 Tunnel Construction Equipment

Pipe canopy drilling rigs and tunnel bolting jumbos operate inside tunnels where space is confined and the ground often has standing water and mud. MAGEON‘s Telescopic Crawler Undercarriage offers clear advantages in tunnel construction — narrowing to within 2.5 metres for transport in and out of tunnels, and expanding to over 3 metres during operation for stable support.

Core Value of Telescopic Undercarriage： One undercarriage simultaneously satisfies the seemingly contradictory requirements of “transport width restriction” and “operational stability” — eliminating the cumbersome process of track disassembly and reassembly.

3. Agriculture & Forestry — The “Green Territory” for Rubber Tracks

The agriculture and forestry sectors place extremely high demands on ground protection. The value of track undercarriages in these fields lies not only in mobility, but in “gentle walking.”

3.1 Farmland Machinery

Tracked combine harvesters and tracked tractors operating in paddy fields and swamps often cause wheeled equipment to sink. Rubber tracks, with their wide design and low ground pressure, can “float” on soft soil surfaces. MAGEON‘s Rubber Track Undercarriage effectively prevents soil compaction in agricultural applications — the most common hazard caused by repeated wheeled equipment passes in paddy fields.

Data Comparison： A wheeled tractor of the same tonnage in a paddy field has a ground pressure of approximately 1.2-1.5 kg/cm², while a rubber track undercarriage can achieve as low as 0.3-0.5 kg/cm² — a difference of over 3 times.

3.2 Orchard & Horticultural Equipment

Tracked orchard trenchers, pruning platforms, and transport vehicles manoeuvre between rows of fruit trees, requiring flexible steering, small turning radius, and no damage to tree root systems. Narrow rubber track designs are the ideal choice for orchard equipment.

3.3 Forestry Harvesting & Transport Equipment

Tracked feller bunchers and skidders operate on muddy slopes in forest terrain. Steel crawler undercarriages provide excellent traction through deep grouser designs, ensuring heavy timber transport without slipping.

4. Emergency Rescue & Special Operations — The “Lifeline” in Critical Moments

In disasters and emergencies, wheeled equipment is often unable to reach due to terrain obstacles, while track undercarriages can traverse ruins, mudslides, and flood zones — truly becoming a “lifeline.”

4.1 Fire Rescue Equipment

Tracked firefighting robots can enter high-temperature, toxic, and collapsed fire scenes for reconnaissance and fire suppression. The low noise characteristics of rubber tracks enable robots to approach targets without alarming trapped personnel.

Technical Points： Firefighting robot undercarriages must possess special performance including high-temperature resistance (short-term tolerance of 200°C+), waterproofing (wading depth ≥300mm), and impact resistance — MAGEON can customise according to firefighting standards.

4.2 Disaster Relief Equipment

Tracked emergency drainage vehicles and rescue material transport vehicles traverse mud and ruins during floods and earthquakes. The high reliability and ease of maintenance of steel crawler undercarriages are particularly important in disaster scenarios — once equipment fails, repair conditions are often very limited.

4.3 Special Environment Operations

Nuclear power plant inspection robots, explosion-proof tracked vehicles, chemical plant leak disposal equipment, and more replace human tasks in high-risk environments where entry is not suitable. MAGEON can customise undercarriages based on special requirements including explosion-proof ratings, corrosion resistance, and radiation shielding.

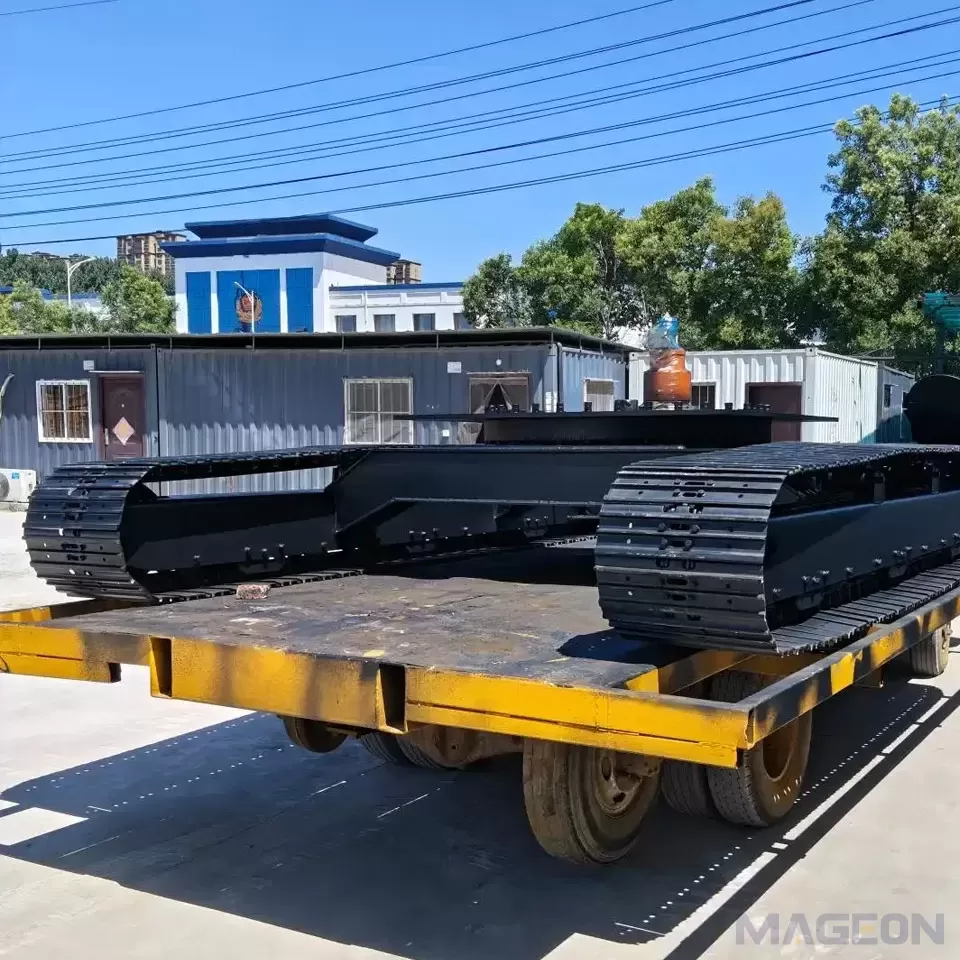

5. Customised Special-Purpose Equipment Undercarriages — MAGEON‘s Core Capability

When standard products cannot meet specific requirements, the value of Custom Tracked Chassis becomes clear.

5.1 Special-Purpose Engineering Equipment

Scenic sightseeing vehicles, wetland exploration platforms, farm manure cleaning vehicles, desert exploration vehicles — the requirements for undercarriages vary across these equipment types, but the core objective is the same: stable and reliable travel on specific terrains. MAGEON‘s customisation services cover the full load range from 0.5 tons to over 100 tons, with designs tailored to equipment use, terrain conditions, and power configuration.

5.2 Equipment Refurbishment & Upgrade

Excavator Conversion Undercarriage is an important category in customisation services. Replacing the undercarriage of ageing wheeled excavators or older tracked equipment with severe wear can achieve near-new equipment performance at a cost far below purchasing new machinery.

Economic Value of Conversion： Replacing the undercarriage of a medium-sized excavator with a new MAGEON steel undercarriage costs approximately 15%-25% of the price of a new machine, while extending equipment service life by 5-8 years.

5.3 Undercarriage Type Selection Matrix

To help customers quickly identify the most suitable undercarriage type, MAGEON has developed the following selection matrix:

6. Steel vs. Rubber — Industry-Specific Selection Quick Reference

MAGEON‘s engineering team has quantified the applicability of steel crawler undercarriages and rubber track undercarriages across industries on a 5-point scale for quick reference：

Score Interpretation：

· Mining：Steel 5 stars, Rubber 1 star — the highly abrasive mining environment almost eliminates the possibility of rubber track use

· Agriculture：Rubber 5 stars, Steel 2 stars — soil protection is the primary consideration in agriculture

· Construction：Both 4 stars — depends on whether the application is heavy piling or urban pipeline work

7. Track Undercarriage Core Components & Selection Parameters

Understanding the Undercarriage Parts and key selection parameters is the foundation for making the right procurement decision.

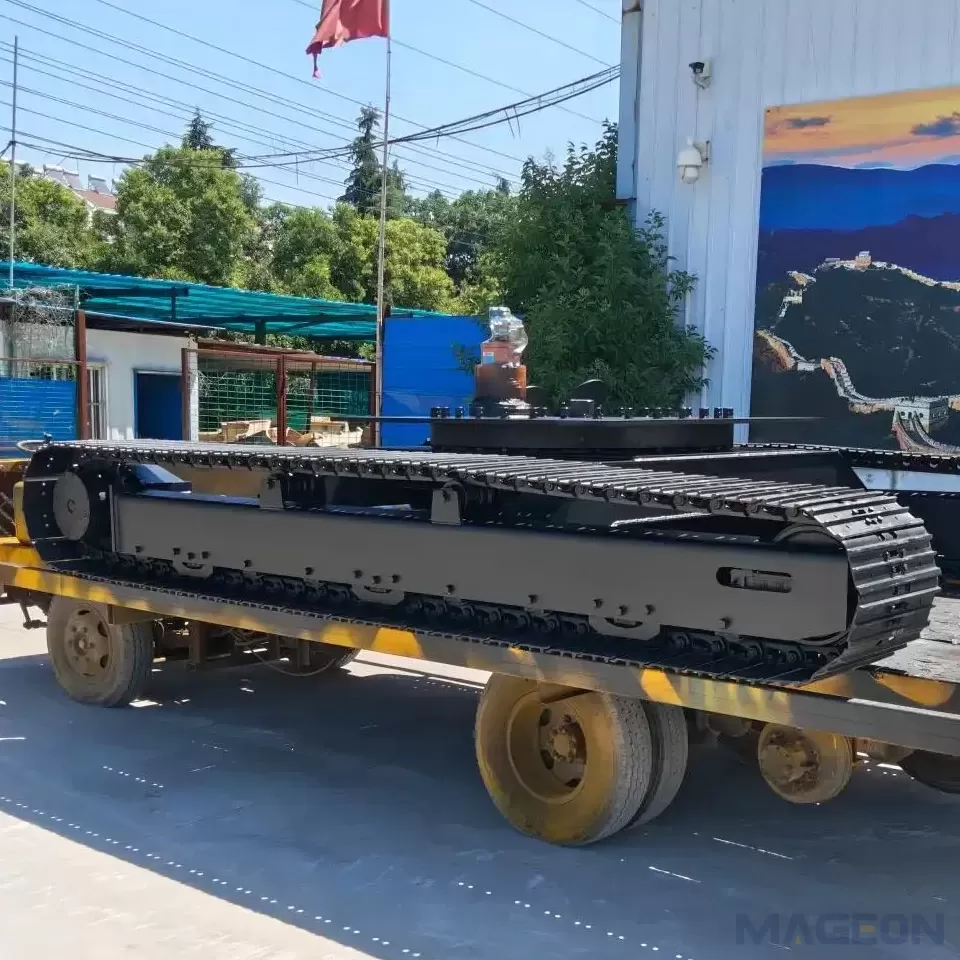

7.1 Core Component Overview

7.2 Three-Step Selection Process

MAGEON recommends customers follow these three steps for undercarriage selection：

Step 1: Identify Operating Scenario

· Where does it operate? (Mine/Job site/Farmland/Tunnel/Urban)

· What are the ground conditions? (Rock/Soft soil/Mud/Slope/Paved)

· Does it require frequent relocation?

Step 2: Determine Load & Dimensions

· What is the total equipment weight?

· What are the mounting interface requirements for the upper structure?

· Is transport width restricted?

Step 3: Match Technology & Cost

· Choose steel or rubber? (Refer to scoring table in Section 6)

· Is telescopic function needed?

· Is total lifecycle cost (procurement + maintenance + replacement) within budget?

8. Maintenance：Practical Tips for Extending Undercarriage Life

Good maintenance habits can extend the service life of a track undercarriage by over 30%. The following are practical tips summarised by the MAGEON service team across hundreds of project sites：

8.1 Daily (5 minutes/shift)

1、Clean accumulated mud — Use a pressure washer or shovel to remove hardened mud and debris from around tracks and track rollers. Accumulated mud accelerates track roller seal wear, leading to oil leaks and failure.

2、Visual inspection — Quick check for loose bolts, oil hose leaks, broken track shoes, and other obvious abnormalities.

8.2 Weekly (30 minutes/week)

1、Check track tension — Measure track sag (typically 7-10cm). Too tight accelerates pin and bushing wear; too loose causes derailment.

2、Check drive sprocket teeth — Inspect tooth surfaces for “hooking” wear or sharpening. Timely replacement prevents track breakage caused by skipping.

8.3 Monthly (2 hours/month)

1、Comprehensive undercarriage inspection — Check wear on all rollers, idlers, sprockets, and carrier rollers one by one. Record wear data.

2、Check floating seals — Once the floating seals of track rollers and idlers leak, bearings will fail within hours — immediate action required.

9. Frequently Asked Questions (FAQ)

Q1：What equipment types in engineering and construction primarily use track undercarriages?

A：Engineering and construction is the largest application market for track undercarriages. Major equipment types include：piling machinery (solar piling rigs, anchor drilling rigs, jet grouting rigs), drilling equipment (water well drills, DTH drills, tunnel drilling rigs), excavation and earthmoving equipment (mini excavators, bulldozers), and crushing & screening equipment (mobile crushers). MAGEON provides customised undercarriage solutions for all of the above equipment types.

Q2：Why must steel crawler undercarriages be used in mining environments?

A：The abrasiveness of mining environments is several times to dozens of times higher than other industries. Ore fragments cause severe cutting and abrasion to rubber tracks — rubber tracks typically last less than 500 hours in mining conditions, while steel crawler undercarriages can achieve 3,000-8,000 hours under the same conditions. Additionally, mining equipment typically weighs over 10 tons, far exceeding the load limit of rubber tracks (typically ≤30 tons). In summary, steel crawler undercarriages are the only reasonable choice for mining environments.

Q3：Why are rubber track undercarriages prioritised in agriculture?

A：The core objective in agriculture is protecting the soil topsoil layer. Repeated passes by wheeled equipment and paddy tractors cause soil compaction, affecting crop root growth and yield. Rubber track undercarriages have a ground pressure (0.2-0.5 kg/cm²) far lower than wheeled equipment (1.2-1.5 kg/cm²), causing minimal damage to soil structure, with low operating noise that does not disturb livestock — the overall advantages are clear.

Q4：Can MAGEON customise dedicated undercarriages for rotary drilling rigs?

A：Yes. The Rotary Drilling Rig Chassis is one of MAGEON‘s core products. Rotary drilling rigs must simultaneously承受 enormous vertical loads (drill pipe + bit weight) and horizontal torque reaction forces during deep-hole drilling. MAGEON‘s dedicated undercarriages ensure absolute stability during large-diameter, deep-hole drilling through large-diameter slewing bearings, thickened track frame steel plates, and high-strength track chain designs. Load coverage is 10-100 tons.

Q5：What scenarios use telescopic crawler undercarriages?

A：The core value of the Telescopic Crawler Undercarriage is “one undercarriage that satisfies both transport and operational requirements.” Typical scenarios include：tunnel construction (narrowing to within 2.5 metres for tunnel entry/exit, expanding to over 3 metres for stability during operation), large drilling rigs that frequently relocate (eliminating the cumbersome track disassembly process), and mining equipment that needs to transport on narrow mountain roads.

Q6：What is the economic value of excavator conversion undercarriages?

A：The Excavator Conversion Undercarriage offers significant economic advantages. Replacing the undercarriage of a medium-sized excavator with a new MAGEON steel undercarriage costs approximately 15%-25% of the price of a new machine, while extending equipment service life by 5-8 years. For users with limited budgets but good equipment host condition, this is a highly cost-effective upgrade solution.

Q7：What undercarriage parts does MAGEON supply?

A：MAGEON supplies a complete range of Undercarriage Parts, including：track chains (links, pins, bushings), track shoes (steel/rubber), track rollers, carrier rollers, idlers, drive sprockets, track frames, tensioning systems, and more. All components are manufactured to MAGEON‘s own technical standards and are compatible with mainstream host brands.

Q8：What special requirements do emergency rescue and firefighting equipment have for track undercarriages?

A：Emergency rescue and firefighting equipment have requirements far beyond conventional construction equipment. These include：

①High-temperature resistance — short-term tolerance of 200°C+；

②Waterproof and dustproof — wading depth typically ≥300mm, IP67+ protection rating；

③Impact resistance — stone impacts and drops during debris operations；

④Reliability — cannot “fail” when it matters most. MAGEON can fully customise according to firefighting and rescue standards.

Q9：What is the minimum and maximum load capacity for MAGEON custom undercarriages?

A：MAGEON‘s Custom Tracked Chassis covers the full load range from 0.5 tons to over 100 tons. The minimum can adapt to mini exploration drilling rigs and firefighting robots (0.5-ton class), and the maximum can adapt to ultra-large rotary drilling rigs and thousand-ton class crawler cranes (100+ tons).

Q10：What is MAGEON‘s custom undercarriage service process?

A：MAGEON provides a full-process customisation service：①Requirements consultation and on-site operating condition assessment → ②Preliminary solution design and technical validation → ③Detailed engineering design and hydraulic system matching calculations → ④Manufacturing and full-process quality control → ⑤Delivery, installation guidance, and after-sales support. From requirements to delivery, MAGEON ensures every undercarriage precisely matches the customer‘s equipment parameters and operating scenarios.

10. About MAGEON

MAGEON is dedicated to delivering high-quality Steel Crawler Undercarriage and Rubber Track Undercarriage custom solutions to the global heavy machinery industry. With engineering experience covering five industries and hundreds of real-world projects, we tailor travel-drive solutions that excel in the most extreme working conditions.

Our Core Capabilities：

· Load Capacity：Full-load custom solutions from 0.5 tons to over 100 tons

· Undercarriage Types：Steel crawler undercarriage, rubber track undercarriage, telescopic crawler undercarriage, customised special-purpose undercarriage

· Core Applications：Engineering & construction (rotary drilling rigs, drilling rigs, crushing & screening), mining & underground engineering (underground equipment, open-pit drills, tunnel equipment), agriculture & forestry (tractors, harvesters, feller bunchers), emergency rescue (firefighting robots, rescue transport vehicles), customised special-purpose equipment

Parts Supply：Complete range of Undercarriage Parts including drive sprockets, idlers, track rollers, carrier rollers, track chains, and track shoes

From requirements analysis to delivery and use, MAGEON stands for exceptional quality and dependable service, helping your equipment perform efficiently on the most challenging terrains.
