In-Depth Analysis of Steel Crawler Undercarriage Technical Features: MAGEON's Complete Guide to the "Steel Boots" of Heavy Machinery

Executive Summary

In mining, construction, piling, and other heavy industries, the Steel Crawler Undercarriage is the most critical travel and support component for heavy equipment. As a globally leading manufacturer of Custom Tracked Chassis, MAGEON draws on decades of engineering practice to provide a systematic analysis of steel crawler undercarriage core technical features, structural principles, performance specifications, and selection and maintenance guidelines — helping industry users gain a comprehensive understanding of this "steel boot" of heavy machinery.

1. What Is a Steel Crawler Undercarriage? — Core Definition & Technical Positioning

A Steel Crawler Undercarriage is the core travel component used in heavy machinery for support and mobility, particularly suited for mining excavators, rotary drilling rigs, bulldozers, crawler cranes, and other heavy equipment that requires high load capacity and complex terrain adaptability. Its core function is to evenly distribute the machine weight across the ground through continuous contact between the high-strength steel tracks and the ground, significantly reducing ground pressure while providing stable and reliable traction.

Compared with a Rubber Track Undercarriage, the steel crawler undercarriage has become the mainstream choice for heavy-load, high-abrasion applications due to its high strength, excellent wear resistance, and long service life. MAGEON steel crawler undercarriages cover a full load range from 0.5 tons to over 100 tons, meeting diverse requirements from mini exploration equipment to ultra-large rotary drilling rigs.

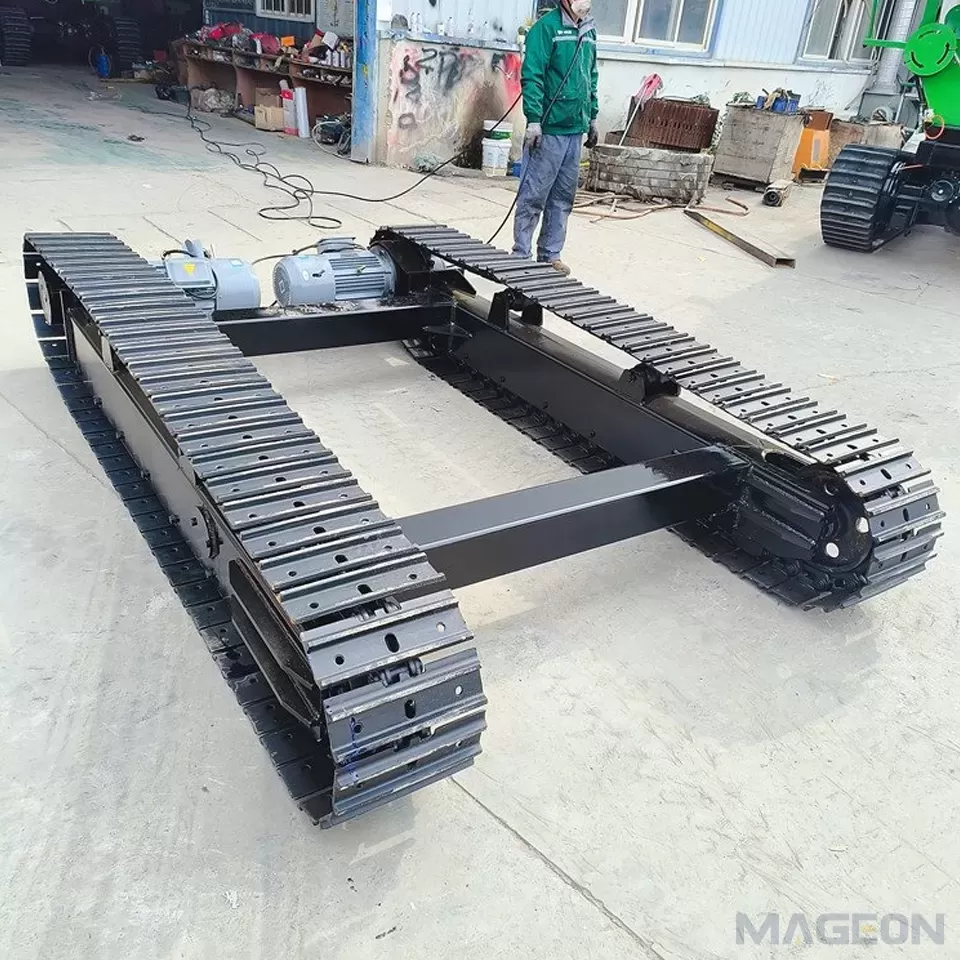

2. Structural Composition & Technical Principles of Steel Crawler Undercarriage

A complete steel crawler undercarriage consists of multiple precision components working in coordination. Understanding the structure and function of these Undercarriage Parts is essential for correct selection and effective maintenance.

2.1 Core Structural Components

A steel crawler undercarriage is mainly composed of the following components:

2.2 Technical Principles

The working principle of a steel crawler undercarriage can be summarised in the following complete chain:

Hydraulic Energy Input → Hydraulic pump delivers oil to the travel motor (e.g., TM60 model) → Mechanical Energy Conversion → Travel motor converts hydraulic energy to rotational mechanical energy → Torque Multiplication → Gearbox (reduction ratio up to 45) outputs stable torque → Engagement Transmission → Drive sprocket teeth engage precisely with track pin bushings → Track Rolling → Drive sprocket rotation drives continuous track movement → Ground Drive → Track contacts ground to generate traction, propelling the equipment

Steering Principle: Steering is achieved by controlling the speed difference between the left and right track travel motors — equal speeds for straight travel, one side faster than the other for turning toward the slower side, and opposite directions for zero-radius turning.

3. Core Technical Features of Steel Crawler Undercarriage

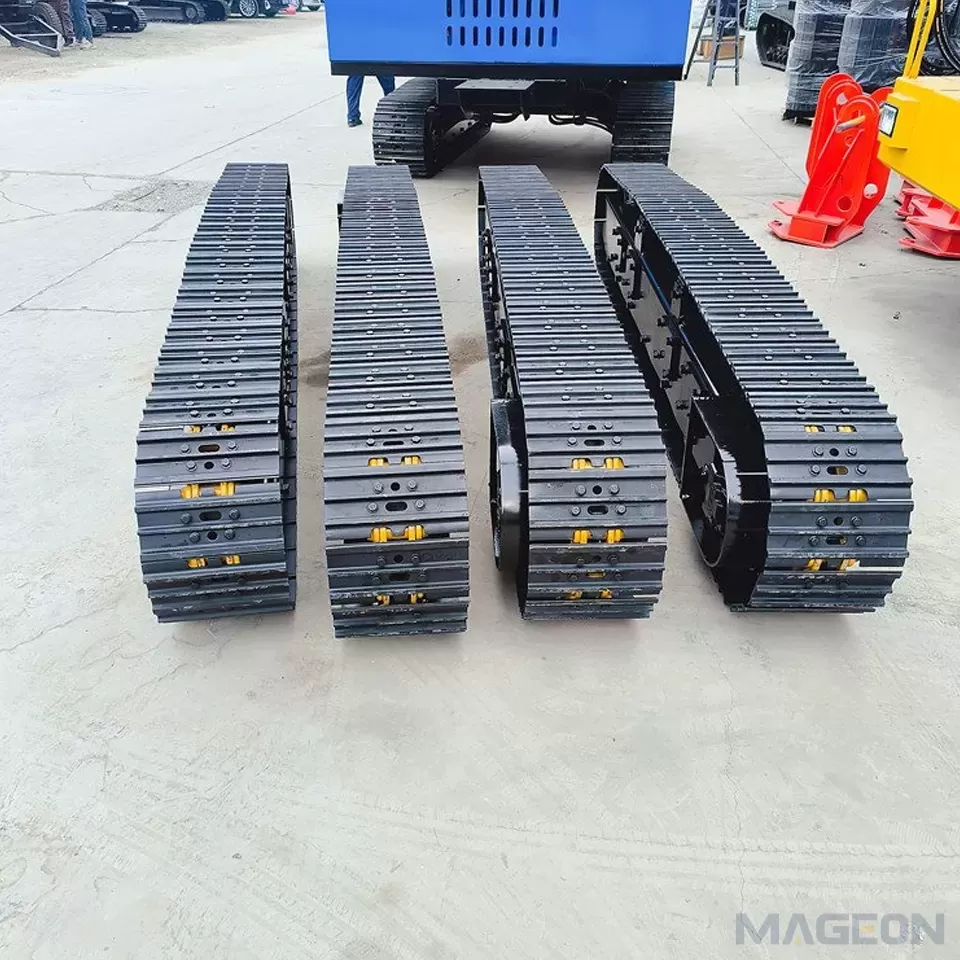

Feature 1: Ultra-High Load Capacity

The greatest technical advantage of the steel crawler undercarriage is its ultra-high load capacity. Taking MAGEON steel crawler undercarriages as an example, a single track can support tens or even hundreds of tons of equipment weight. Track shoes are cast from high-strength alloy steel, with widths typically ranging from 300-600mm and thickness up to 80mm, evenly distributing equipment weight through optimised grouser design and significantly reducing ground pressure.

Technical Data: MAGEON steel crawler undercarriages achieve ground pressure as low as 0.3-0.8 kg/cm², providing excellent flotation on soft soil and swamp conditions.

Feature 2: Excellent Wear Resistance & Long Service Life

The wear resistance of steel tracks is one of the core advantages distinguishing them from Rubber Track Undercarriage. Track shoes are manufactured from high-strength alloy steels (such as 35MnB, 40Mn2), and after overall quenching and tempering plus surface induction hardening, hardness reaches HRC 50-58, demonstrating excellent wear resistance in highly abrasive environments such as mines and quarries.

Service Life Comparison: Under heavy-load conditions, steel crawler undercarriages have a service life of 3,000-8,000 hours — 2-3 times longer than rubber track undercarriages (typically 800-2,000 hours).

Feature 3: Powerful Hydraulic Drive System

The travel system of the steel crawler undercarriage uses hydraulic drive technology, efficiently converting hydraulic energy into mechanical energy through the travel motor, with the drive sprocket rotating the track to achieve equipment movement. The hydraulic system's continuous working pressure reaches 30MPa, and with a gearbox reduction ratio of 45, it outputs stable, high torque to easily handle heavy-load climbing and other extreme conditions.

MAGEON Engineering Tip: The performance of the hydraulic system directly affects the travel efficiency and reliability of the undercarriage. When customising undercarriages, MAGEON precisely matches the travel motor displacement and gearbox reduction ratio based on equipment tonnage and operating conditions to ensure optimal power system matching.

Feature 4: Superior Complex Terrain Adaptability

The deep grouser design of steel crawler undercarriages provides exceptional traction, enabling stable operation on gravel, mud, steep slopes, snow, deserts, and other extreme terrains. Two-speed design (high/low speed切换) accommodates both low-speed climbing and high-speed transport requirements, while remote control valves enhance operational safety in complex environments.

4. Steel Crawler Undercarriage vs. Rubber Track Undercarriage: Comprehensive Technical Comparison

When recommending or customising an undercarriage for clients, the MAGEON engineering team first assesses a core question: Does your equipment need a steel track or a rubber track?

MAGEON Selection Recommendations:

· Choose Steel Crawler Undercarriage: If your equipment primarily operates in mines, quarries, rocky terrain, or requires heavy-load operations

· Choose Rubber Track Undercarriage: If your equipment primarily operates on paved surfaces, urban construction sites, ecologically sensitive areas, or soft farmlands

5. Key Technical Specifications of Steel Crawler Undercarriage

The technical specifications of a track undercarriage directly affect its applicable scenarios and operational performance. The following is a summary of key specifications based on MAGEON's years of engineering practice:

MAGEON Selection Reference — Recommended Track Pitch by Equipment Weight:

6. Core Application Areas of Steel Crawler Undercarriage

Steel crawler undercarriages play an irreplaceable role in the following sectors, thanks to their ultra-high load capacity, excellent wear resistance, and complex terrain adaptability:

6.1 Mining Machinery

In harsh environments such as gravel quarries and open-pit mines, excavators, loaders, and other equipment must withstand continuous impact and abrasion from ore fragments. The high load capacity (1-80 ton options available) and impact resistance of steel crawler undercarriages effectively handle gravel, mud, and other challenging terrains. MAGEON heavy-duty steel undercarriages for mining machinery feature reinforced track shoes and triple-grouser designs for extended service life in extremely abrasive conditions.

6.2 Rotary Drilling Rig Chassis

Rotary drilling rigs represent one of the most important applications for steel crawler undercarriages. A Rotary Drilling Rig Chassis must withstand the high reactive torque and enormous vertical loads generated during deep-hole drilling. MAGEON provides dedicated heavy-duty steel undercarriages for rotary drilling rigs, equipped with large-diameter slewing bearings and high-strength track frames.

Typical Load Range: 10 – 100 tons

6.3 Drilling Rig Undercarriage

Whether for water well drills, core drills, or geothermal exploration rigs, a Drilling Rig Undercarriage must provide a stable working platform across diverse terrains. Steel crawler undercarriages are adaptable to drilling rigs and other engineering equipment, and with their superior traction and impact resistance, they are the preferred travel solution for drilling equipment.

Typical Load Range: 0.5 – 50 tons

6.4 Excavator Conversion Undercarriage

Converting older or wheeled excavators into tracked equipment is the core value proposition of an Excavator Conversion Undercarriage. Steel crawler undercarriages are adaptable to excavators and other engineering equipment, and MAGEON provides complete conversion undercarriage solutions, including custom mounting interfaces compatible with upper structures from different excavator brands.

Typical Load Range: 5 – 50 tons

6.5 Telescopic Crawler Undercarriage

A Telescopic Crawler Undercarriage uses a hydraulic system to adjust the track frame width — narrowing for transport to comply with road width restrictions, and widening during operation to increase stability. Thanks to modular design, users can customise track width, pitch, and other parameters based on actual requirements.

Typical Load Range: 20 – 100 tons

6.6 Construction Machinery & Special-Purpose Vehicles

On construction sites, the precise control capability of hydraulic drive meets the requirements of confined space operations. Steel crawler undercarriages are also used in mining transport vehicles, agricultural machinery, and other special-purpose vehicles.

6.7 Application Overview

7. Operation & Maintenance Guidelines for Steel Crawler Undercarriage

Correct operation and maintenance are the keys to extending the service life of Undercarriage Parts. The following operation and maintenance guidelines are based on MAGEON's years of engineering practice:

7.1 Pre-Operation Inspection (Daily)

Before operation, inspect the following items to prevent failures caused by negligence:

· Hydraulic oil level: Ensure hydraulic oil is within normal range

· Track tension: Check that tracks are neither too loose nor too tight to prevent derailment or accelerated wear

· Fastener tightness: Check that bolts, pins, and other connections are not loose

7.2 Operational Precautions

· Select speed based on terrain: Two-speed design accommodates both low-speed climbing and high-speed transport; avoid sudden acceleration or braking that causes abnormal track wear

· Avoid sharp turns: Frequent zero-radius turns accelerate track and drive sprocket wear

· Listen for unusual noises: Unusual sounds during travel often indicate impending component failure

7.3 Maintenance Schedule

7.4 MAGEON Golden Rules of Maintenance

1、Spend 5 minutes cleaning each day: Removing mud and debris from tracks and rollers after each shift can prevent 60% of undercarriage failures

2、Maintain proper tension: Too tight accelerates wear; too loose causes derailment

3、Replace worn parts promptly: Address drive sprocket tooth wear, roller seal leaks, and other issues in a timely manner

4、Use genuine parts: Using MAGEON genuine Undercarriage Parts ensures optimal fit and longest service life

8. Core Technical Advantages of MAGEON Steel Crawler Undercarriage

As a globally leading manufacturer of Custom Tracked Chassis, MAGEON has accumulated deep technical expertise in steel crawler undercarriages:

9. Frequently Asked Questions (FAQ)

Q1: What are the core technical features of a steel crawler undercarriage?

A: The core technical features of a steel crawler undercarriage include: ① Ultra-high load capacity — can support 80 tons or even over 100 tons of equipment weight; ② Excellent wear resistance — track shoes are made of high-strength alloy steel with hardness up to HRC 50-58, service life up to 3,000-8,000 hours; ③ Powerful hydraulic drive system — working pressure up to 30MPa, combined with high-reduction-ratio gearbox for stable torque output; ④ Superior complex terrain adaptability — stable operation on gravel, mud, steep slopes, and other extreme terrains.

Q2: What is the difference between a steel crawler undercarriage and a rubber track undercarriage? How do I choose?

A: The Steel Crawler Undercarriage offers extremely high load capacity (up to 100+ tons) and excellent wear resistance, suitable for mines, quarries, rocky terrain, and other highly abrasive environments, with a service life of 3,000-8,000 hours — but it damages paved surfaces. The Rubber Track Undercarriage offers low ground pressure, no surface damage, and low noise, suitable for urban construction and ecologically sensitive areas, but its load capacity is limited (typically ≤ 30 tons) and service life is shorter (800-2,000 hours). The choice depends on your specific operating conditions — MAGEON offers customisation services for both technologies.

Q3: What is the hydraulic system working pressure of a steel crawler undercarriage?

A: The hydraulic travel system of a steel crawler undercarriage has a continuous working pressure of 30MPa. Through the travel motor (e.g., TM60 model), hydraulic energy is converted into mechanical energy, and with a gearbox reduction ratio of up to 45, it outputs stable, high torque to easily handle heavy-load climbing and other extreme conditions.

Q4: What is the typical track shoe thickness of a steel crawler undercarriage?

A: The track shoe thickness of a steel crawler undercarriage typically reaches 80mm. Track shoes are cast from high-strength alloy steel, with widths typically ranging from 300-600mm, connected to track links by bolts to form a closed loop. Greater thickness provides better wear resistance and impact resistance.

Q5: Can MAGEON customise undercarriages for rotary drilling rigs?

A: Yes. The Rotary Drilling Rig Chassis is one of MAGEON's core businesses. MAGEON provides 10-100 ton heavy-duty steel undercarriages specifically designed for rotary drilling rigs, equipped with large-diameter slewing bearings and high-strength track frames to ensure absolute stability during deep-hole drilling.

Q6: How often does a steel crawler undercarriage need maintenance?

A: MAGEON recommends: After each shift — clean mud and debris from tracks and rollers; Every 500 hours — inspect hydraulic system seals, replace aged hoses; Weekly — check track tension and drive sprocket tooth wear; Monthly — check floating seals for leaks. Regular maintenance can extend undercarriage life by over 30%.

Q7: What is an excavator conversion undercarriage?

A: An Excavator Conversion Undercarriage is a complete undercarriage solution that converts older or wheeled excavators into tracked equipment. MAGEON provides custom mounting interfaces compatible with upper structures from different excavator brands, helping customers upgrade equipment at lower cost.

Q8: What are the advantages of a telescopic crawler undercarriage?

A: A Telescopic Crawler Undercarriage uses a hydraulic system to adjust the track frame width — narrowing for transport to comply with road width restrictions, and widening during operation to increase stability. Thanks to modular design, users can customise track width, pitch, and other parameters based on actual requirements.

Q9: What is the load capacity range for MAGEON custom undercarriages?

A: MAGEON provides Custom Tracked Chassis solutions from 0.5 tons to over 100 tons, covering the full load range from small exploration drilling rigs to ultra-large rotary drilling rigs and crawler cranes.

Q10: What is the MAGEON custom undercarriage service process?

A: MAGEON provides a full-process customisation service: ① Requirements analysis and operating condition assessment → ② Solution design and technical validation → ③ Detailed engineering design and hydraulic system matching → ④ Manufacturing and quality control → ⑤ Delivery and after-sales support. From start to finish, MAGEON ensures every undercarriage precisely matches your equipment specifications and operational needs.

10. About MAGEON

MAGEON is dedicated to delivering high-quality Steel Crawler Undercarriage and Rubber Track Undercarriage custom solutions to the global heavy machinery industry. With deep technical expertise and extensive engineering experience, we tailor travel-drive solutions that excel in the most extreme working conditions.

Our Core Capabilities:

· Load Capacity: Customised solutions from 0.5 tons to over 100 tons

· Undercarriage Types: Steel track undercarriage, rubber track undercarriage, telescopic track undercarriage

· Application Areas: Mining machinery, rotary drilling rigs, exploration drilling rigs, excavator conversions, bulldozers, crawler cranes, crushing and screening equipment, agricultural machinery, mining transport vehicles, and more

· Parts Supply: Complete range of Undercarriage Parts including drive sprockets, idlers, track rollers, carrier rollers, and track shoes

From design to delivery, MAGEON stands for exceptional quality and dependable service, helping your equipment perform efficiently on the most challenging terrains.
