The Complete Guide to Steel Crawler Undercarriage: Structure, Core Advantages, Selection & Maintenance

Executive Summary

In excavators, bulldozers, rotary drilling rigs, and other heavy machinery, the Steel Crawler Undercarriage is the core travel component that determines whether equipment can "stand firm" on the ground. As a globally leading manufacturer of Custom Tracked Chassis, MAGEON draws on decades of engineering practice to provide a systematic analysis of steel crawler undercarriage structure, core technical advantages, application scenarios, and selection and maintenance guidelines — helping industry users gain a comprehensive understanding of this "walking foundation" of heavy machinery.

1. What Is a Steel Crawler Undercarriage? — Structural Principle Analysis

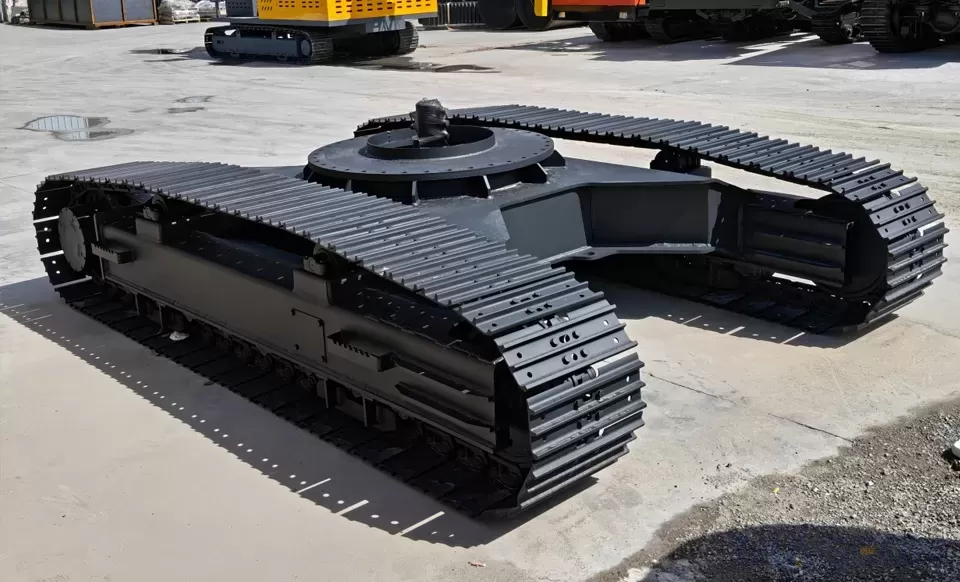

A Steel Crawler Undercarriage is a track-type travel assembly consisting of tracks, drive sprockets, track rollers, carrier rollers, idlers, and track frames. It equips heavy machinery with a pair of "steel boots," enabling stable operation on complex terrains including mud, mountains, gravel, and snow.

1.1 Core Components

A complete steel crawler undercarriage consists of the following key components working in coordination:

1.2 Working Principle

The working principle of a steel crawler undercarriage can be summarised in the following complete chain:

Power Input → The engine or hydraulic motor generates rotational power, transmitted to the drive sprocket → Engagement Transmission → The drive sprocket teeth engage precisely with the track pin bushings → Track Rolling → The drive sprocket rotates, continuously rolling the track from the rear → Ground Reaction → The ground-contacting portion of the track exerts a rearward force on the ground; the ground exerts a forward reaction force (tractive force) on the track → Equipment Movement → Under the tractive force, the entire equipment moves forward, backward, or turns.

Steering Principle: Steering is achieved by controlling the speed difference between the left and right tracks — equal speeds for straight travel, one side faster than the other for turning toward the slower side, and opposite directions for zero-radius turning.

2. Four Core Advantages of Steel Crawler Undercarriage

Compared with wheeled travel systems and Rubber Track Undercarriage, steel crawler undercarriages offer the following significant advantages:

Advantage 1: Extremely High Load Capacity

The ground contact area of steel tracks is over 30% larger than that of tyres of the same specification, allowing machine weight to be evenly distributed to the ground. For example, mining excavators weighing tens or even hundreds of tons rely entirely on steel tracks for support, remaining stable even when operating on steep slopes. MAGEON steel crawler undercarriages can support equipment weighing over 100 tons.

Technical Data: The ground pressure of steel crawler undercarriages can be as low as 0.3-0.8 kg/cm², significantly lower than that of wheeled equipment, meaning better flotation on soft soil.

Advantage 2: Superior Complex Terrain Adaptability

The "grouser" design of steel tracks provides excellent grip on mud, snow, mountains, gravel, deserts, and other extreme terrains. According to tracking data from MAGEON engineering teams across multiple mining sites, equipment equipped with steel crawler undercarriages operates over 40% more efficiently than wheeled equipment on muddy terrain after heavy rain. The deep grouser design of steel tracks provides superior traction that Rubber Track Undercarriage cannot match in extreme terrain.

Advantage 3: Long Service Life & Lower Total Cost of Ownership

Steel track shoes are typically manufactured from high-strength manganese steel (such as 35MnB, 40Mn2 alloy steels). After overall quenching and tempering plus surface induction hardening, hardness reaches HRC 50-58, providing excellent wear resistance. Under normal heavy-load conditions, steel crawler undercarriages can operate continuously for 3,000 to 8,000 hours — 2-3 times longer than rubber tracks (typically 800-2,000 hours). Although initial investment is higher, the total cost of ownership is significantly lower in heavy-load, high-abrasion applications.

Advantage 4: High Operational Safety

The low-centre-of-gravity design and wide tracks of steel crawler undercarriages provide exceptional lateral stability, reducing the risk of rollover on steep slopes and inclined ground. Additionally, the rigid structure of steel tracks offers better impact resistance when encountering rocks, tree roots, and other obstacles.

3. Steel Crawler Undercarriage vs. Rubber Track Undercarriage: Comprehensive Technical Comparison

When recommending or customising an undercarriage for clients, the MAGEON engineering team first assesses a core question: Does your equipment need a steel track or a rubber track?

MAGEON Selection Recommendations:

· Choose Steel Crawler Undercarriage: If your equipment primarily operates in mines, quarries, rocky terrain, or requires heavy dozing/drilling

· Choose Rubber Track Undercarriage: If your equipment primarily operates on paved surfaces, urban construction sites, ecologically sensitive areas, or soft farmlands

4. Core Application Areas of Steel Crawler Undercarriage

Steel crawler undercarriages play an irreplaceable role in the following sectors, thanks to their ultra-high load capacity and extreme environmental adaptability:

4.1 Mining Machinery

Excavators, loaders, and other equipment operating in gravel quarries and open-pit mines require steel crawler undercarriages with excellent wear resistance and anti-slip performance to withstand the impact and abrasion of ore fragments. MAGEON heavy-duty steel undercarriages for mining machinery feature reinforced track shoes and triple-grouser designs for extended service life in extremely abrasive conditions.

4.2 Rotary Drilling Rig Chassis

Rotary drilling rigs represent one of the most important applications for steel crawler undercarriages. A Rotary Drilling Rig Chassis must withstand the high reactive torque and enormous vertical loads generated during deep-hole drilling. MAGEON provides dedicated heavy-duty steel undercarriages for rotary drilling rigs, equipped with large-diameter slewing bearings and high-strength track frames.

Typical Load Range: 10 – 100 tons

4.3 Drilling Rig Undercarriage

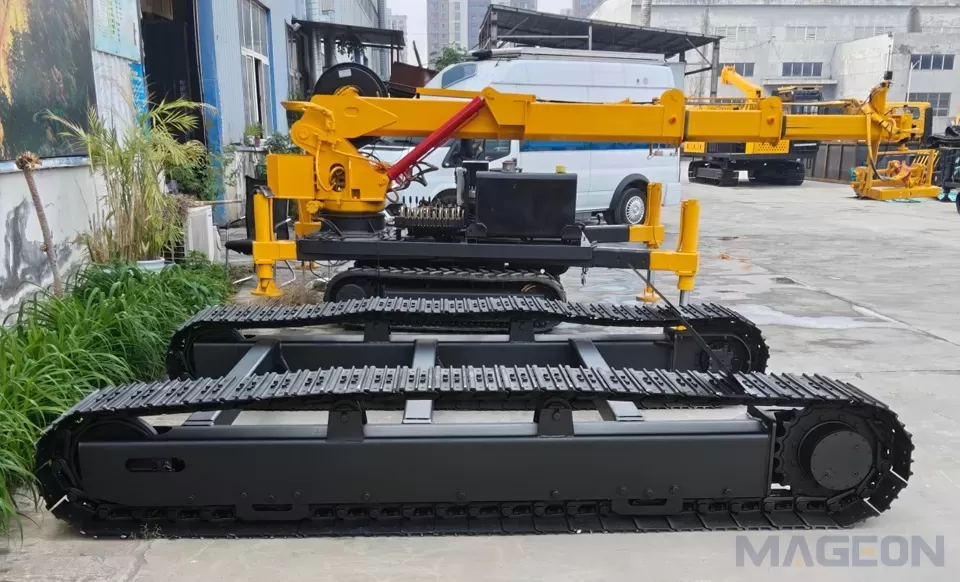

Whether for water well drills, core drills, or geothermal exploration rigs, a Drilling Rig Undercarriage must provide a stable working platform across diverse terrains. Steel crawler undercarriages, with their superior traction and impact resistance, are the preferred travel solution for drilling equipment.

Typical Load Range: 0.5 – 50 tons

4.4 Excavator Conversion Undercarriage

Converting older or wheeled excavators into tracked equipment is the core value proposition of an Excavator Conversion Undercarriage. MAGEON provides complete conversion undercarriage solutions, including custom mounting interfaces compatible with upper structures from different excavator brands.

Typical Load Range: 5 – 50 tons

4.5 Telescopic Crawler Undercarriage

A Telescopic Crawler Undercarriage uses a hydraulic system to adjust the track frame width — narrowing for transport to comply with road width restrictions, and widening during operation to increase stability.

Typical Load Range: 20 – 100 tons

4.6 Agricultural Machinery & Special-Purpose Vehicles

Tracked tractors operating in paddy fields and mountainous areas benefit from steel tracks that prevent soil compaction and protect the topsoil layer. Snow rescue vehicles, desert exploration vehicles, and other special-purpose vehicles rely on steel tracks for mobility in extreme environments.

4.7 Application Overview

5. Selection Guide for Steel Crawler Undercarriage

Correct selection is the prerequisite for ensuring efficient equipment operation. The following selection guidelines are based on MAGEON's years of engineering practice:

5.1 Select Track Pitch Based on Equipment Weight

Track pitch is the distance between centres of adjacent pin joints and is one of the most important parameters in selection. Selecting too small a pitch results in insufficient strength; selecting too large a pitch increases weight and cost.

MAGEON Selection Reference:

5.2 Select Track Shoe Type Based on Operating Conditions

5.3 Prioritise Manganese Steel Track Shoes

The material of track shoes directly affects undercarriage service life. MAGEON recommends prioritising track shoes manufactured from high-strength manganese steel (such as 35MnB, 40Mn2). After overall quenching and tempering plus surface induction hardening, hardness and wear resistance are significantly improved.

6. Maintenance & Lifecycle Management of Steel Crawler Undercarriage Components

Proper maintenance is the key to extending the service life of Undercarriage Parts. The following maintenance guidelines are based on MAGEON's years of engineering practice:

MAGEON Golden Rules of Maintenance:

1、Check track tension every 200 hours — too tight accelerates wear; too loose causes derailment

2、Clean debris monthly — prevent debris from jamming the drive sprocket and causing abnormal wear

3、Clean accumulated mud after each shift — removing mud and debris from tracks and rollers can prevent 60% of undercarriage failures

4、Listen for unusual noises — unusual sounds during travel often indicate impending component failure

5、Regularly inspect seals — floating seal failure leads to rapid bearing damage

7. Core Technical Advantages of MAGEON Steel Crawler Undercarriage

As a globally leading manufacturer of Custom Tracked Chassis, MAGEON has accumulated deep technical expertise in steel crawler undercarriages:

8. Frequently Asked Questions (FAQ)

Q1: What are the main components of a steel crawler undercarriage?

A: A steel crawler undercarriage consists of six core components: the track (ground-contacting travel component), drive sprocket (power transmission), track rollers (load bearing), carrier rollers (supporting the upper track run), idler (guidance and tensioning), and track frame (structural backbone), working together with the tensioning system to form a complete travel system.

Q2: What is the difference between a steel crawler undercarriage and a rubber track undercarriage? How do I choose?

A: The Steel Crawler Undercarriage offers extremely high load capacity (up to 100+ tons) and excellent wear resistance, suitable for mines, quarries, rocky terrain, and other highly abrasive environments, with a service life of 3,000-8,000 hours — but it damages paved surfaces. The Rubber Track Undercarriage offers low ground pressure, no surface damage, and low noise, suitable for urban construction and ecologically sensitive areas, but its load capacity is limited (typically ≤ 30 tons) and service life is shorter (800-2,000 hours). The choice depends on your specific operating conditions.

Q3: What is the maximum load capacity of a steel crawler undercarriage?

A: MAGEON steel crawler undercarriages can support equipment weighing over 100 tons, covering the full load range from 0.5-ton mini equipment to over 100-ton ultra-large equipment (such as ultra-large rotary drilling rigs and crawler cranes).

Q4: How do I select track pitch based on equipment weight?

A: Generally, 0.5-3 ton equipment recommends 101-135mm pitch; 3-10 ton equipment recommends 135-175mm pitch; 10-30 ton equipment recommends 175-216mm pitch; 30-50 ton equipment recommends 216-260mm pitch; over 50 ton equipment recommends 260mm+ pitch. Specific selection should also consider equipment type and operating conditions — MAGEON engineering team can provide professional selection recommendations.

Q5: What is the service life of a steel crawler undercarriage?

A: Under normal heavy-load conditions, steel crawler undercarriages can operate continuously for 3,000 to 8,000 hours, depending on the abrasiveness of the operating environment, maintenance practices, and operator habits. Steel tracks typically last 2-3 times longer than rubber tracks.

Q6: Can MAGEON customise undercarriages for rotary drilling rigs?

A: Yes. The Rotary Drilling Rig Chassis is one of MAGEON's core businesses. MAGEON provides 10-100 ton heavy-duty steel undercarriages specifically designed for rotary drilling rigs, equipped with large-diameter slewing bearings and high-strength track frames to ensure absolute stability during deep-hole drilling.

Q7: What is an excavator conversion undercarriage?

A: An Excavator Conversion Undercarriage is a complete undercarriage solution that converts older or wheeled excavators into tracked equipment. MAGEON provides custom mounting interfaces compatible with upper structures from different excavator brands, helping customers upgrade equipment at lower cost.

Q8: How often does a steel crawler undercarriage need maintenance?

A: MAGEON recommends checking track tension every 200 hours and cleaning mud and debris from tracks and rollers monthly. Simple cleaning and visual inspection after each shift can prevent most undercarriage failures.

Q9: What is the load capacity range for MAGEON custom undercarriages?

A: MAGEON provides Custom Tracked Chassis solutions from 0.5 to 100 tons, covering the full load range from small exploration drilling rigs to ultra-large rotary drilling rigs and crawler cranes.

Q10: What is the MAGEON custom undercarriage service process?

A: MAGEON provides a full-process customisation service: ① Requirements analysis and operating condition assessment → ② Solution design and technical validation → ③ Detailed engineering design and hydraulic system matching → ④ Manufacturing and quality control → ⑤ Delivery and after-sales support. From start to finish, MAGEON ensures every undercarriage precisely matches your equipment specifications and operational needs.

9. About MAGEON

MAGEON is dedicated to delivering high-quality Steel Crawler Undercarriage and Rubber Track Undercarriage custom solutions to the global heavy machinery industry. With deep technical expertise and extensive engineering experience, we tailor travel-drive solutions that excel in the most extreme working conditions.

Our Core Capabilities:

· Load Capacity: Customised solutions from 0.5 to 100 tons

· Undercarriage Types: Steel track undercarriage, rubber track undercarriage, telescopic track undercarriage

· Application Areas: Mining machinery, rotary drilling rigs, exploration drilling rigs, excavator conversions, bulldozers, crawler cranes, agricultural machinery, special-purpose vehicles, and more

· Parts Supply: Complete range of Undercarriage Parts including drive sprockets, idlers, track rollers, carrier rollers, and tracks

From design to delivery, MAGEON stands for exceptional quality and dependable service, helping your equipment perform efficiently on the most challenging terrains.
