Steel Crawler Undercarriage vs. Rubber Track Undercarriage: MAGEON‘s Complete Guide to Parameter Comparison and Selection Logic for Two Technology Paths

Executive Summary

In the heavy machinery and special-purpose vehicle sectors, the choice of track undercarriage often determines the success or failure of equipment in specific operating conditions. The Steel Crawler Undercarriage and the Rubber Track Undercarriage each possess distinctly different technical characteristics and application scenarios — steel undercarriages dominate mining and heavy-load applications with a broad load range of 2-120 tons and extreme wear resistance, while rubber undercarriages统治 agriculture and urban construction with lightweight design (0.5-12 tons) and surface-friendly characteristics. As a globally leading manufacturer of Custom Tracked Chassis, MAGEON draws on deep understanding of both technology paths and hundreds of real-world project experiences to provide a systematic analysis of steel vs. rubber track undercarriages across structural design, core parameters, performance characteristics, and application scenarios — helping industry users make precise selection decisions.

1. Overview of the Two Track Undercarriage Types: The Technical Divide Between Steel and Rubber

Track undercarriages are primarily divided into two categories based on track material: steel crawler undercarriages and rubber track undercarriages. These two types differ fundamentally in load capacity, applicable conditions, service life, and maintenance methods.

1.1 Steel Crawler Undercarriage

Steel crawler undercarriages use high-strength alloy steel track chains as the travel medium, with a load capacity covering a broad range of 2 to 120 tons. This type of undercarriage features compact structure, stable performance, and high durability, making it suitable for heavy-load and high-abrasion applications such as mining, tunnelling, and piling engineering.

Core Specifications at a Glance：

· Load Range：2 – 120 tons

· Track Type：Steel chain + steel track shoes (rubber pads optional for surface protection)

· Applicable Scenarios：Mines, quarries, tunnels, piling engineering, heavy transport

· Service Life：3,000 – 8,000 hours (heavy-load conditions)

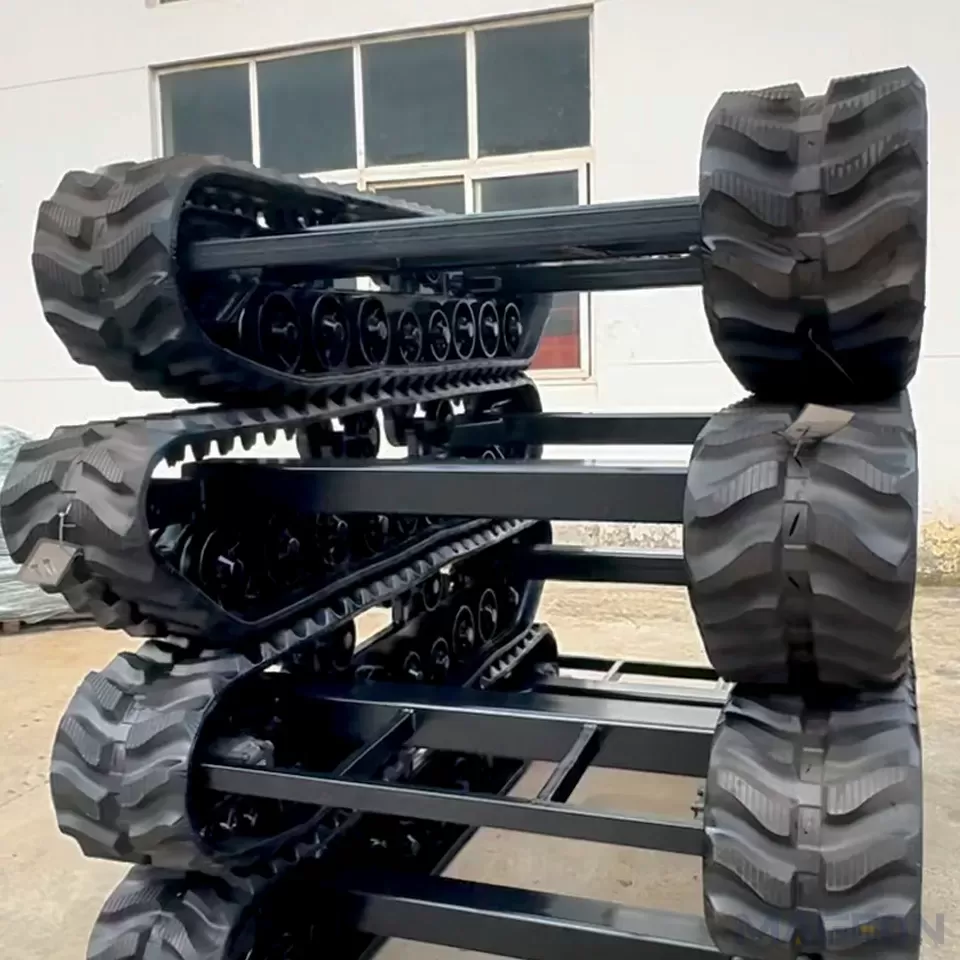

1.2 Rubber Track Undercarriage

Rubber track undercarriages use rubber as the primary material with embedded steel cord or fabric reinforcement, with a load capacity covering 0.5 to 12 tons. Rubber track undercarriages are lightweight, low-noise, and do not damage paved surfaces, making them particularly suitable for light industrial equipment and urban construction.

Core Specifications at a Glance：

· Load Range：0.5 – 12 tons

· Track Type：Rubber track (steel cord reinforced)

· Applicable Scenarios：Agricultural machinery, small drilling, urban construction, aerial work platforms

· Operating Temperature Range：-25℃ to 55℃

· Service Life：800 – 2,000 hours (depending on conditions)

2. Core Components of Track Undercarriages: Analysis of Seven Key Components

Whether steel or rubber, the core components of track undercarriages are highly consistent. Each complete track undercarriage contains the following seven key components：

MAGEON systematically matches all seven components in every undercarriage design, ensuring协同 efficiency and overall reliability.

3. In-Depth Analysis of Steel Crawler Undercarriage Structure and Performance Characteristics

Steel crawler undercarriages are the absolute主力 for heavy-load applications. The following are the core performance characteristics of steel crawler undercarriages, compiled by MAGEON based on industry standards and technical specifications：

3.1 Load-Bearing and Travel Capability

Steel crawler undercarriages effectively support the full weight of the host equipment and provide complete forward, reverse, and turning travel functions. The travel motor assembly offers both single-speed and two-speed options, with high output torque and travel speed flexibly adjustable based on operating conditions.

3.2 Manufacturing Process and Structural Strength

MAGEON steel crawler undercarriages feature high-strength, high-rigidity steel structures, with key structural components precision-fabricated through laser cutting and CNC bending processes, ensuring dimensional accuracy and structural consistency. The undercarriage design is highly flexible — track shoe width, overall chassis length and width, and mounting interfaces for upper components can all be customised based on customer host equipment requirements.

3.3 Wear Resistance and Seal Design of Core Components

· Track Rollers and Idlers：Equipped with deep groove ball bearings — one grease application provides long-term lubrication, eliminating the need for frequent in-service maintenance

· Shaft End Seals：Dual-seal structure ensures lubricant does not leak and effectively prevents mud and water from entering the wheel cavity

· Teeth of Drive Sprockets, Track Rollers, and Idlers：Made of alloy steel and hardened for excellent wear resistance, ensuring long service life

· Tensioning Mechanism：Elastic tensioning mechanism with simple screw adjustment for high reliability

3.4 Surface Protection Options

To protect asphalt and paved surfaces, steel crawler undercarriages can also be equipped with rubber track shoes (rubber pads) as an option, retaining the load capacity of steel undercarriages while reducing surface damage.

4. Rubber Track Undercarriage：Structure and Usage Precautions

Rubber track undercarriages occupy an important position in light industry and agriculture due to their lightweight, low-noise, and surface-friendly characteristics.

4.1 Application Areas and Load Range

In the light industry sector, rubber track undercarriages are commonly used in agricultural machinery within 1 to 4 tons；in the construction machinery sector, particularly small drilling, their application is also quite extensive. MAGEON rubber track undercarriages cover a load range of 0.5 to 12 tons and can be customised for various host equipment requirements.

4.2 Operating Temperature and Environmental Requirements

Rubber tracks are designed to operate stably within a temperature range of -25℃ to 55℃. Beyond this range, the physical properties of the rubber material may change, affecting track service life and safety.

4.3 Five Key Usage Precautions

Based on extensive field application cases, MAGEON has summarised five key precautions for rubber track undercarriage usage：

5. Steel Crawler Undercarriage vs. Rubber Track Undercarriage：Comprehensive Technical Comparison

When recommending an undercarriage to clients, the MAGEON engineering team first assesses a core question：Does your equipment need a steel track or a rubber track? The following is a comprehensive comparison across multiple dimensions：

6. Core Application Areas of Track Undercarriage Assemblies

MAGEON track undercarriage assemblies are widely used across five major categories of host equipment：

6.1 Drilling Equipment

Track undercarriages are the “mobile base” for all types of drilling equipment. MAGEON products are applicable to anchor drilling rigs, water well drills, core drills, jet grouting rigs, DTH drills, tunnel drilling rigs, horizontal directional drilling rigs, and many other drill types. The Rotary Drilling Rig Chassis is one of the most technically demanding applications, requiring simultaneous承受 of enormous vertical loads and horizontal torque reaction forces.

The key to Drilling Rig Undercarriage selection lies in matching drill type, drilling depth, and relocation frequency. MAGEON customises undercarriage solutions for each drilling rig based on these parameters.

6.2 Construction Machinery

In the construction machinery sector, MAGEON track undercarriages are widely used in mini excavators, small piling rigs, aerial work platforms, small loading equipment, and more. The Excavator Conversion Undercarriage is an important category — upgrading the undercarriage of older or wheeled excavators to revitalise equipment performance at a fraction of the cost of new machinery.

6.3 Coal Mining and Mining Equipment

The coal mining and mining sectors are the core battlefield for steel crawler undercarriages. MAGEON products are widely used in mucking loaders, tunnel drilling rigs, fully hydraulic drilling rigs, and other equipment. The high strength, high wear resistance, and impact resistance of steel crawler undercarriages make them excel in the harsh conditions of underground tunnels and open-pit mines.

6.4 Agricultural Equipment

Agriculture is an important application scenario for rubber track undercarriages. MAGEON products are widely used in sugarcane harvesters, mowers, compost turners, and other agricultural equipment. The low ground pressure and soil protection characteristics of rubber track undercarriages make them irreplaceable in paddy fields, orchards, and soft farmland.

6.5 Application Overview

7. MAGEON‘s Core Capabilities in Custom Track Undercarriages

As a globally leading manufacturer of Custom Tracked Chassis, MAGEON possesses the following core capabilities in undercarriage customisation：

7.1 Flexible Customisation Parameters

MAGEON undercarriage designs are highly flexible and can meet the requirements of various host equipment：

· Track Shoe Width：Customisable based on operating conditions

· Overall Chassis Length and Width：Adaptable to different equipment dimensions

· Upper Mounting Components：Customised to host equipment interfaces

7.2 End-to-End Customisation Process

MAGEON provides a full-process customisation service from requirements analysis to delivery：
① Requirements consultation and operating condition assessment → ② Solution design and technical validation → ③ Detailed engineering design and component matching → ④ Manufacturing and quality control → ⑤ Delivery and after-sales support

7.3 Value-Added Services

MAGEON also offers a range of value-added services to enhance the customer product experience：

· Technical consultation and selection support

· Installation guidance and commissioning

· Spare parts supply and after-sales maintenance

8. Maintenance and Lifecycle Management of Track Undercarriage Components

Proper maintenance is the key to extending the service life of Undercarriage Parts. The following maintenance guidelines are summarised by MAGEON for different undercarriage types：

MAGEON Golden Rules of Maintenance：

1、Steel Undercarriages：Focus on tooth wear and seal condition — replace when the alloy steel hardened layer is worn

2、Rubber Undercarriages：Focus on rubber ageing and external damage — cracks not reaching steel cord are still usable；once cords are damaged, replacement is required

3、Both Types：Maintain proper tension, clean debris promptly, listen for unusual noises

9. Frequently Asked Questions (FAQ)

Q1：What are the load ranges for steel crawler undercarriages and rubber track undercarriages respectively?

A：According to MAGEON product standards, the Steel Crawler Undercarriage covers a load range of 2 to 120 tons, suitable for everything from medium-small equipment to ultra-large heavy equipment. The Rubber Track Undercarriage covers a load range of 0.5 to 12 tons, primarily for light industrial and agricultural equipment. The significant gap in load capacity determines their respective application areas — steel undercarriages for heavy loads, rubber undercarriages for light loads.

Q2：What are the core performance characteristics of steel crawler undercarriages?

A：The core performance characteristics of steel crawler undercarriages include：

①Outstanding load capacity and impressive traction, with good noise control；

②High-strength, high-rigidity steel structure, precision-fabricated through laser cutting and CNC bending；

③Track rollers and idlers equipped with deep groove ball bearings — one grease application provides long-term lubrication without in-service maintenance；

④Dual-seal structure at shaft ends — ensures lubricant does not leak and effectively prevents mud and water ingress；

⑤Teeth of drive sprockets, track rollers, and idlers are made of alloy steel and hardened for excellent wear resistance；

⑥Tensioning mechanism with simple screw adjustment for high reliability.

Q3：What is the operating temperature range for rubber track undercarriages? What are the usage precautions?

A：The operating temperature range for rubber track undercarriages is -25℃ to 55℃. Usage precautions include：

①Avoid contact with chemicals, oil, or saltwater；

②Avoid sharp protrusions (rebar, rocks) that can cause external damage；

③Pay attention to early wear on roller contact rubber surfaces when driving on gravel and crushed stone roads；

④Rinse thoroughly with clean water after use.

Q4：How can steel crawler undercarriages protect paved surfaces?

A：Steel crawler undercarriages themselves cause significant damage to asphalt and concrete surfaces. To protect paved surfaces, MAGEON offers rubber track shoes (rubber pads) as an option. Adding rubber pads to steel track shoes retains the load capacity of steel undercarriages while significantly reducing surface damage — ideal for equipment that frequently moves between urban roads and job sites.

Q5：Can MAGEON customise undercarriages for rotary drilling rigs?

A：Yes. The Rotary Drilling Rig Chassis is one of MAGEON‘s core products. Rotary drilling rigs must simultaneously承受 enormous vertical loads and horizontal torque reaction forces during deep-hole drilling. MAGEON‘s dedicated steel undercarriages ensure absolute stability during large-diameter, deep-hole drilling through large-diameter slewing bearings, thickened track frame steel plates, and high-strength track chain designs, with load coverage of 10-100 tons.

Q6：Can MAGEON customise undercarriages for drilling rig equipment?

A：Yes. MAGEON provides customisation services for all types of Drilling Rig Undercarriages, covering anchor drilling rigs, water well drills, core drills, jet grouting rigs, DTH drills, tunnel drilling rigs, horizontal directional drilling rigs, and more. Based on drill type, drilling depth, and operating terrain, MAGEON provides precise matching of steel or rubber track undercarriages, with load ranges of 0.5-50 tons.

Q7：What is an excavator conversion undercarriage? Can MAGEON provide it?

A：An Excavator Conversion Undercarriage is a complete undercarriage solution that converts older or wheeled excavators into tracked equipment. MAGEON provides custom mounting interfaces compatible with upper structures from different excavator brands, helping customers upgrade equipment at far below the cost of new machinery, extending equipment service life by 5-8 years.

Q8：What are the advantages of a telescopic crawler undercarriage? Can MAGEON customise it?

A：A Telescopic Crawler Undercarriage uses a hydraulic system to adjust the track frame width — narrowing for transport to meet road transport restrictions, and widening during operation to increase stability. MAGEON provides customisation services for telescopic undercarriages, particularly suitable for tunnel construction, large drilling rigs and cranes that frequently relocate, with load coverage of 20-100 tons.

Q9：What is the load capacity range for MAGEON custom undercarriages?

A：MAGEON‘s Custom Tracked Chassis covers the full load range of 0.5 to 120 tons. The minimum can adapt to mini agricultural equipment and firefighting robots (0.5-ton class), and the maximum can adapt to ultra-large rotary drilling rigs and crawler cranes (120-ton class). Whether steel or rubber, MAGEON can precisely customise based on customer requirements.

Q10：What undercarriage parts does MAGEON supply?

A：MAGEON supplies a complete range of Undercarriage Parts, including：hydraulic travel reducers (travel motor assemblies), steel tracks/rubber tracks, track chains, drive sprockets, idlers, track rollers, carrier rollers, tensioning mechanisms, and more. All components are manufactured to MAGEON‘s own technical standards and are compatible with mainstream host brands.

10. About MAGEON

MAGEON is dedicated to delivering high-quality Steel Crawler Undercarriage and Rubber Track Undercarriage custom solutions to the global heavy machinery industry. With deep understanding of both technology paths and customisation capabilities covering the full load range of 0.5 to 120 tons, we tailor travel-drive solutions that excel in the most extreme working conditions.

Our Core Capabilities：

· Load Range：Full-load custom solutions from 0.5 to 120 tons

· Undercarriage Types：Steel crawler undercarriage (2-120 tons), rubber track undercarriage (0.5-12 tons), telescopic crawler undercarriage

· Core Applications：Drilling (anchor drills, water well drills, jet grouting rigs, DTH drills, tunnel drills, HDD rigs), construction machinery (mini excavators, small piling rigs, aerial work platforms), coal mining and mining (mucking loaders, roadheaders, fully hydraulic drills), agriculture (sugarcane harvesters, mowers, compost turners)

· Parts Supply：Complete range of Undercarriage Parts including travel motor assemblies, drive sprockets, idlers, track rollers, carrier rollers, track chains, tensioning mechanisms, and more

From requirements analysis to delivery and use, MAGEON stands for exceptional quality and dependable service, helping your equipment perform efficiently on the most challenging terrains.
