Basic Definition of Crawler Undercarriage

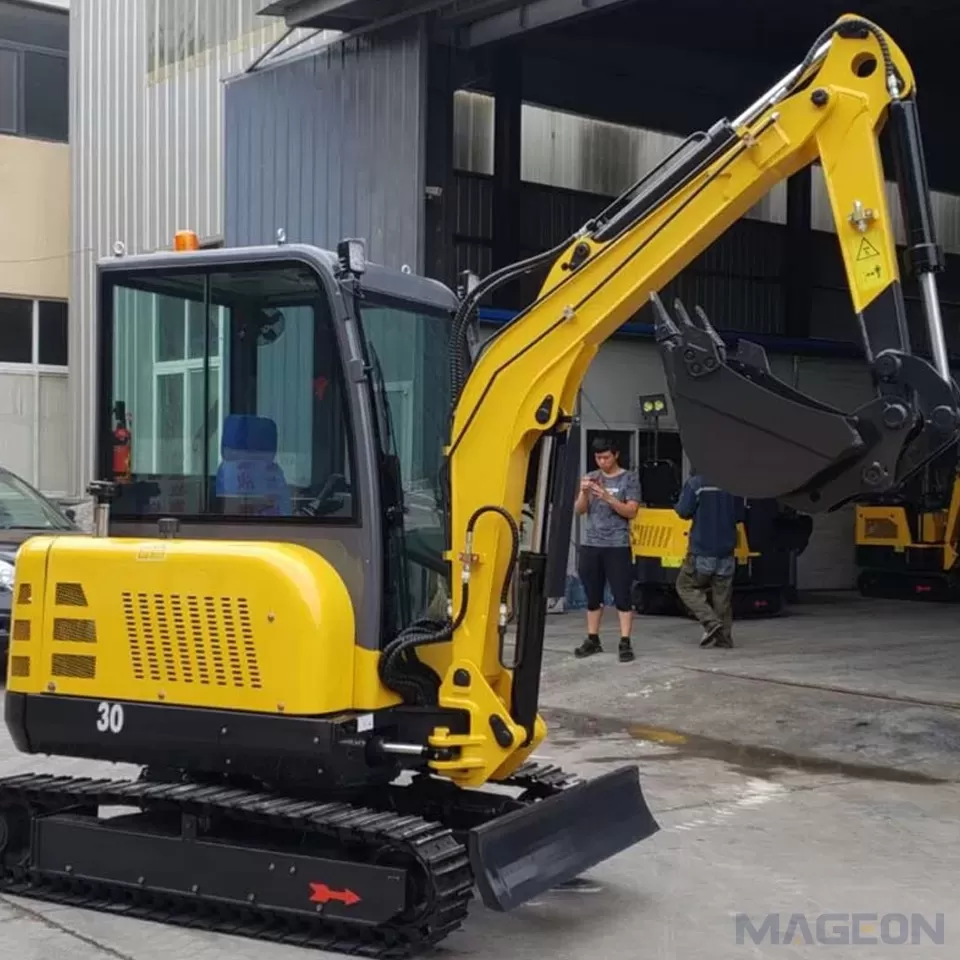

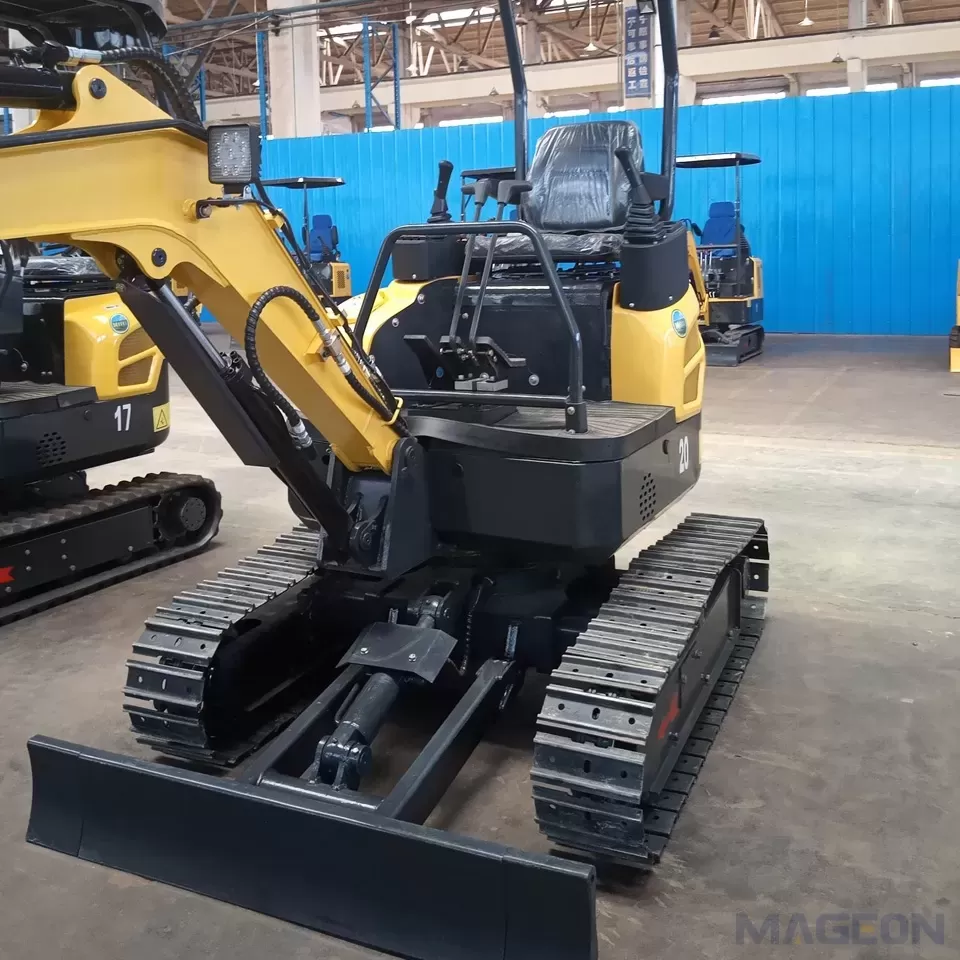

A crawler undercarriage is the core traveling component of off-highway construction, agricultural, and forestry machinery, replacing traditional wheeled chassis to adapt to complex and harsh working conditions. Unlike wheeled undercarriage that relies on tire rotation, the crawler undercarriage uses endless track belts to convert the machine’s driving force into forward traction, enabling stable operation on muddy, rocky, uneven, and low-bearing-capacity ground. It is an essential part for mini excavators, aerial work platforms, agricultural harvesters, drilling rigs, and forestry machinery widely used in European urban renovation, farmland operation, and municipal engineering.

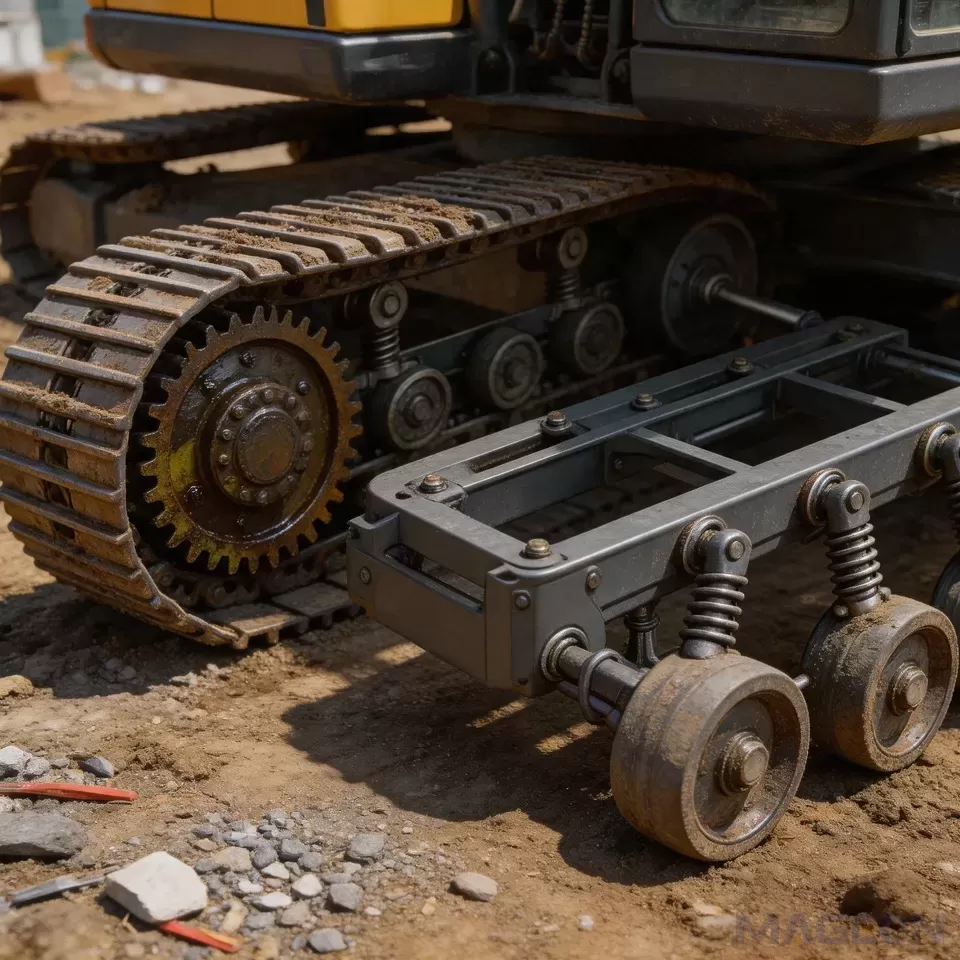

Core Structural Components
A complete standard crawler undercarriage consists of six core parts, known as “four wheels, one belt and one tension system”, which determines the overall stability and service life of the equipment:
- Track chain & track shoe：The direct contact part with the ground, bearing the full machine weight and providing friction traction;
- Drive wheel：Connects the hydraulic motor, provides power to drive the track operation;
- Idler wheel：Located at the front of the chassis, guides the track direction and buffers impact force;
- Track roller：Bears the main machine weight and supports the track to run stably;
- Carrier roller：Supports the upper track to prevent sagging and deviation;
- Track tension system：Adjusts track tightness to avoid derailment and excessive wear.

Working Principle
The hydraulic system outputs power to the drive wheel, which meshes with the track chain to drive the endless track to circulate. The track increases the ground contact area, reduces ground pressure, and disperses the machine’s weight evenly on the ground. This working principle fundamentally solves the problems of skidding and sinking of wheeled equipment on soft ground, which is why European fleets prefer crawler machinery for farmland, old urban street, and wetland construction projects.

Track Undercarriage vs Wheeled Undercarriage
Wheeled chassis is suitable for flat, hard urban roads with fast moving speed, but poor terrain adaptability. Crawler undercarriage has lower ground pressure, stronger passability, and higher stability, though with slightly slower moving speed. For most European small and medium-sized engineering and agricultural scenarios, crawler undercarriage has irreplaceable application value.
