Types and Application Scenarios of Steel Track Undercarriage

Steel track undercarriage systems are widely adopted in engineering machinery, agricultural equipment and other industries for their superior terrain passability and operational stability. Different crawler chassis models vary in structural design, performance parameters and applicable scenarios. As a professional undercarriage manufacturer, MAGEON offers a full range of steel track solutions to match diverse working requirements.

Classification & Core Technical Specifications

Below is the detailed classification and key parameter comparison of common steel track undercarriage products:

🔴 Classification by Drive Mode

Full Hydraulic Drive Chassis

This type of track undercarriage is driven directly by a hydraulic motor, featuring high power transmission efficiency and flexible steering performance. It supports zero-radius in-situ turning, making it ideal for operations in complex and narrow terrains such as mountain construction and deep farmland tillage. It is also widely used in orchard equipment that requires frequent steering in confined paths.

Mechanical Transmission Chassis

It transmits power through gearboxes and transmission shafts, with a simple and reliable structure and low daily maintenance cost. This type is mostly deployed on small and medium-sized engineering machinery such as mini excavators and loaders, and is commonly seen in port loading/unloading and municipal engineering projects.

🔴Classification by Track Structure

Integrated Track Undercarriage

It adopts an integrated design of track shoes, drive sprockets and idlers, with high structural strength and excellent impact resistance. It is suitable for heavy-load operations such as mining transportation and heavy crane carriers. The heavy-duty integrated crawler undercarriage from MAGEON can support a load capacity of over 50 tons, meeting the requirements of extreme heavy-duty scenarios.

Modular Track Undercarriage

Track shoes can be disassembled and replaced individually, which facilitates daily maintenance and allows adjustment of ground contact pressure according to ground conditions. It is suitable for multi-terrain general equipment such as inspection robots and special operation vehicles. Users can swap track models for different ground conditions to achieve optimal passability and traction.

🔴Classification by Application Purpose

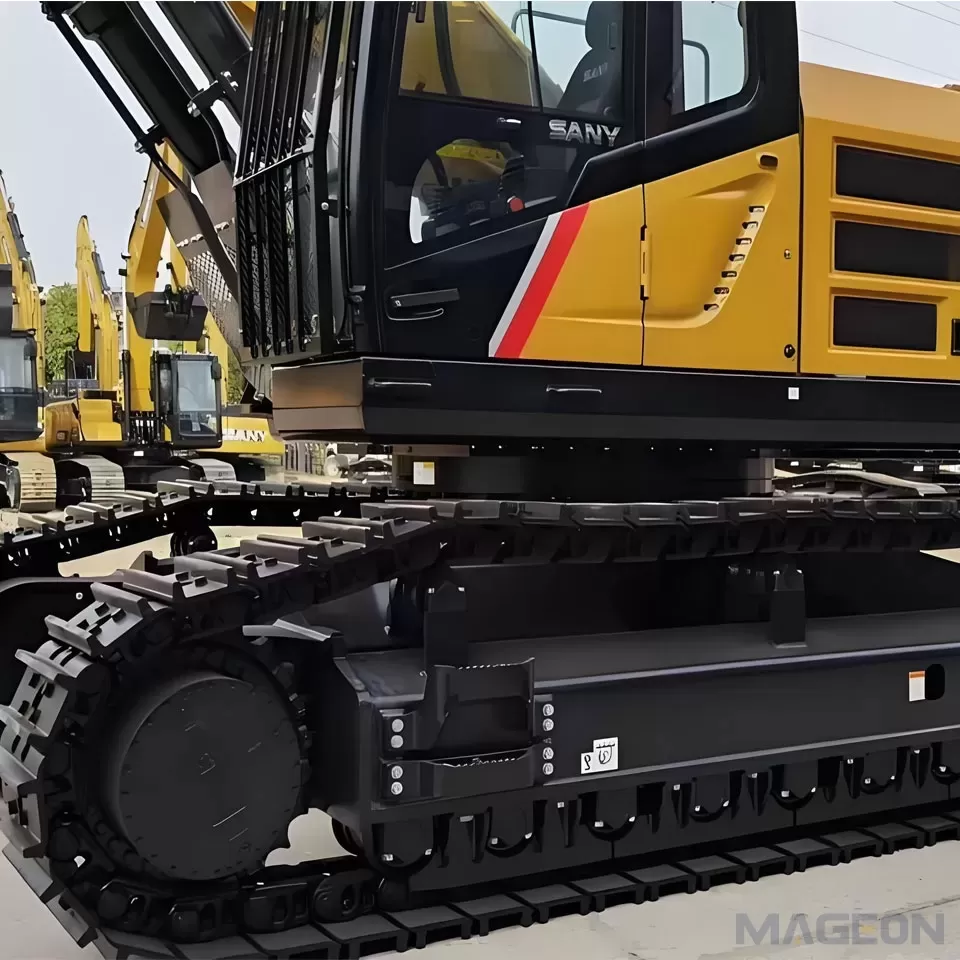

Construction Machinery Undercarriage

Equipped with a reinforced travel mechanism and dual-track balanced suspension system, it delivers excellent adaptability to rugged road surfaces. It is the standard configuration for common engineering equipment such as excavators and bulldozers, effectively improving overall machine stability during operation and travel.

Special Operation Undercarriage

It is designed for specific operation demands, such as polar scientific research vehicles and forest fire prevention trucks. This type of crawler track undercarriage usually has specialized properties such as low-temperature start capability and corrosion resistance. MAGEON has customized special undercarriage products that operate stably in -40℃ environments, and can also provide targeted anti-rust optimization for coastal salt spray conditions to extend service life.

Selection Guidance & Custom Solutions

When selecting a steel track undercarriage, users should comprehensively evaluate factors such as operation scenarios, load requirements and environmental conditions. For users with specialized needs, MAGEON provides full-process customized solutions:

🔹Targeted anti-rust and anti-corrosion treatment for coastal salt spray environments

🔹Low-temperature resistant configuration for cold region operations

🔹Custom mounting interfaces matched to specific host equipment parameters

🔹Personalized track configuration adjustment for special terrains

🔹With professional R&D strength and a strict quality control system, MAGEON ensures every undercarriage product fully matches customers’ actual operational needs and delivers reliable travel support for equipment fleets.

🚩Frequently Asked Questions

Q: What are the main classification methods of steel track undercarriage?

A: Steel track undercarriage is mainly classified from three dimensions: by drive mode (full hydraulic drive / mechanical transmission), by track structure (integrated / modular), and by application purpose (construction machinery / special operation). Users can select the appropriate type according to actual needs.

Q: What is the difference between full hydraulic drive and mechanical transmission crawler chassis?

A: Full hydraulic drive chassis has higher transmission efficiency and more flexible steering with in-situ turning support, suitable for complex and narrow terrains; mechanical transmission chassis features a simpler structure and lower maintenance cost, offering better cost-effectiveness for light and medium load scenarios.

Q: What are the advantages of integrated track undercarriage?

A: Integrated track undercarriage has higher structural strength and better impact resistance, and can carry larger loads. It is the preferred solution for heavy-load scenarios such as mining transportation and heavy cranes, with a load capacity of up to 50 tons or more.

Q: What is the biggest feature of modular track undercarriage?

A: The biggest feature of modular track undercarriage is that track shoes can be replaced individually for convenient maintenance. At the same time, ground contact pressure can be adjusted by swapping different track shoes to adapt to varied terrain conditions.

Q: Can steel track chassis be used in coastal salt spray environments?

A: Yes. For coastal salt spray and other high-corrosion environments, targeted anti-rust and anti-corrosion treatment can be applied to the chassis surface and key components, effectively improving corrosion resistance and extending equipment service life.

Q: Can track chassis operate normally in an ultra-low temperature environment of -40℃?

A: Special operation track chassis can be customized for ultra-low temperature environments. By adopting low-temperature resistant materials, optimized hydraulic systems and heating configurations, it can achieve stable start-up and operation in -40℃ extreme low-temperature conditions.

Q: What type of track undercarriage is suitable for orchard operations?

A: Full hydraulic drive steel track undercarriage is recommended for orchard operations. It supports flexible in-situ steering, adapts to narrow orchard paths, and delivers good passability on uneven orchard ground.

Q: What factors should be considered when selecting a steel track chassis?

A: Key factors to consider include: rated load demand, operation terrain and environment, host equipment mounting interface requirements, daily maintenance cost budget, and any special functional requirements.

Q: Do you provide customized track chassis solutions?

A: Yes. MAGEON provides full-process customized services. We can adjust structural design, load configuration, mounting interfaces and surface treatment according to customers' host equipment parameters, working conditions and environmental requirements.

Q: What is the maintenance cost difference between different types of track chassis?

A: Mechanical transmission chassis has the lowest maintenance cost due to its simple structure; hydraulic drive chassis requires regular hydraulic system maintenance; integrated heavy-duty chassis has a lower failure rate and longer maintenance cycle, delivering excellent long-term cost performance.
