How do I choose the 5 – 24 ton hydraulic and electric crawler chassis?
Project Overview:
This product series covers three load ranges of 5–8 tons, 10–15 tons and 15–24 tons, supporting both full hydraulic drive and electric drive configurations. It adopts a built-in low-speed high-torque motor reducer, with excellent passability and climbing performance. The product can be matched with steel tracks or rubber tracks according to working conditions, and all dimensional parameters are customizable. It is widely used in engineering machinery, special robots, mountain transportation and other scenarios, and can fully adapt to complex terrains such as mountains, deserts and swamps.
Steel & Rubber Track Undercarriage: 5–24 Ton Hydraulic & Electric Robot Chassis Solutions
Steel crawler undercarriage and rubber track chassis are core travel solutions for robotics, construction machinery and special operation equipment. As a professional undercarriage manufacturer, MAGEON provides 5–24 ton full hydraulic and electric drive track chassis products, featuring high load capacity, strong terrain adaptability and flexible customization, to deliver reliable walking support for various host equipment.
Core Technical Parameters
MAGEON track undercarriage products cover multiple tonnage specifications, and all parameters can be adjusted according to customer requirements. Detailed specifications are as follows:
| Load Range | Chassis Length Range | Track Width | Standard Travel Motor Model |
|---|---|---|---|
| 5 – 8 tons | 2600 – 3000 mm | 400 mm | TM09 |
| 10 – 15 tons | 3200 – 3600 mm | 450 – 500 mm | TM10 / TM12 |
| 15 – 24 tons | 4000 – 5000 mm | 500 – 600 mm | TM18 / TM22 / TM40 |
Core Functions & Performance Advantages
Load-Bearing & Travel Capability
The chassis fully supports the weight of the host equipment and realizes forward, reverse and steering travel functions. Equipped with a built-in low-speed high-torque motor travel reducer, it delivers excellent passability and strong climbing ability, maintaining stable power output under complex terrain and heavy load conditions.
Dual Track Material Options
Steel track: Wider working condition adaptation, longer service life, strong puncture and impact resistance, suitable for harsh environments such as mines and rocky roads.
Rubber track: High-performance formula with strong bearing capacity and traction, low noise, no damage to asphalt pavement, and good driving smoothness, suitable for municipal and road operation scenarios.
Core Structural Composition

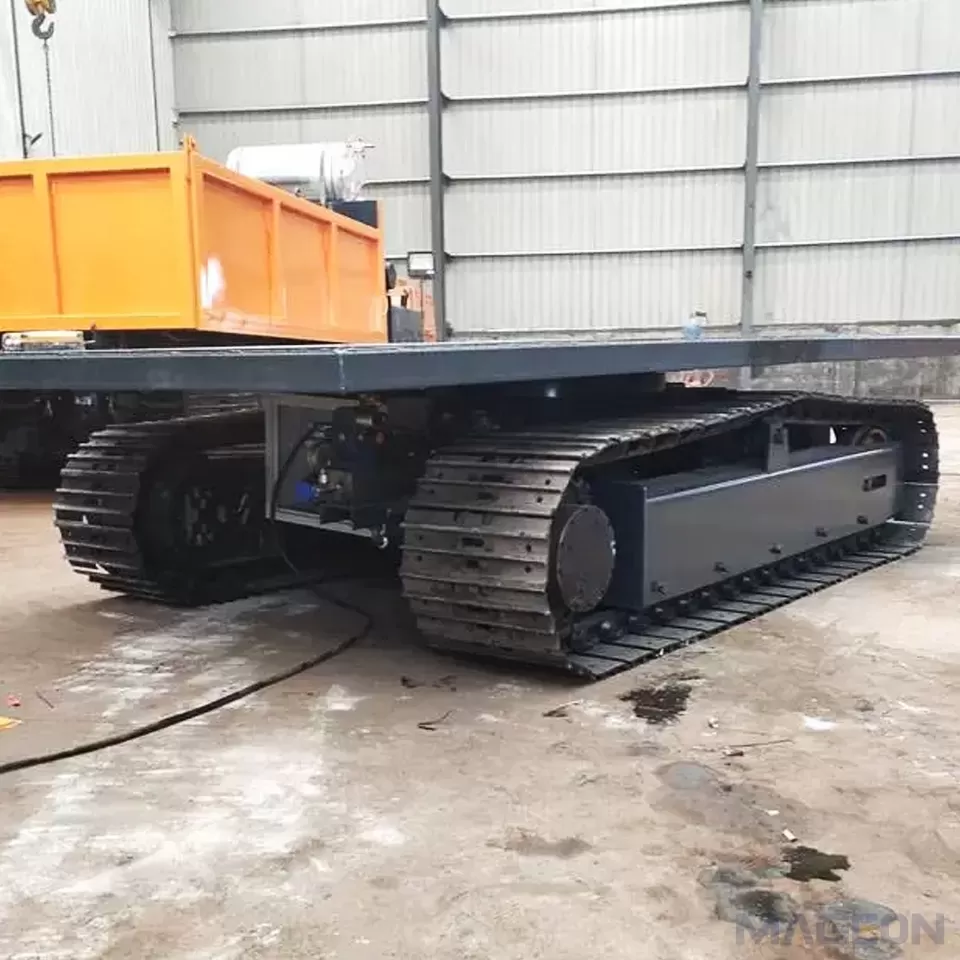

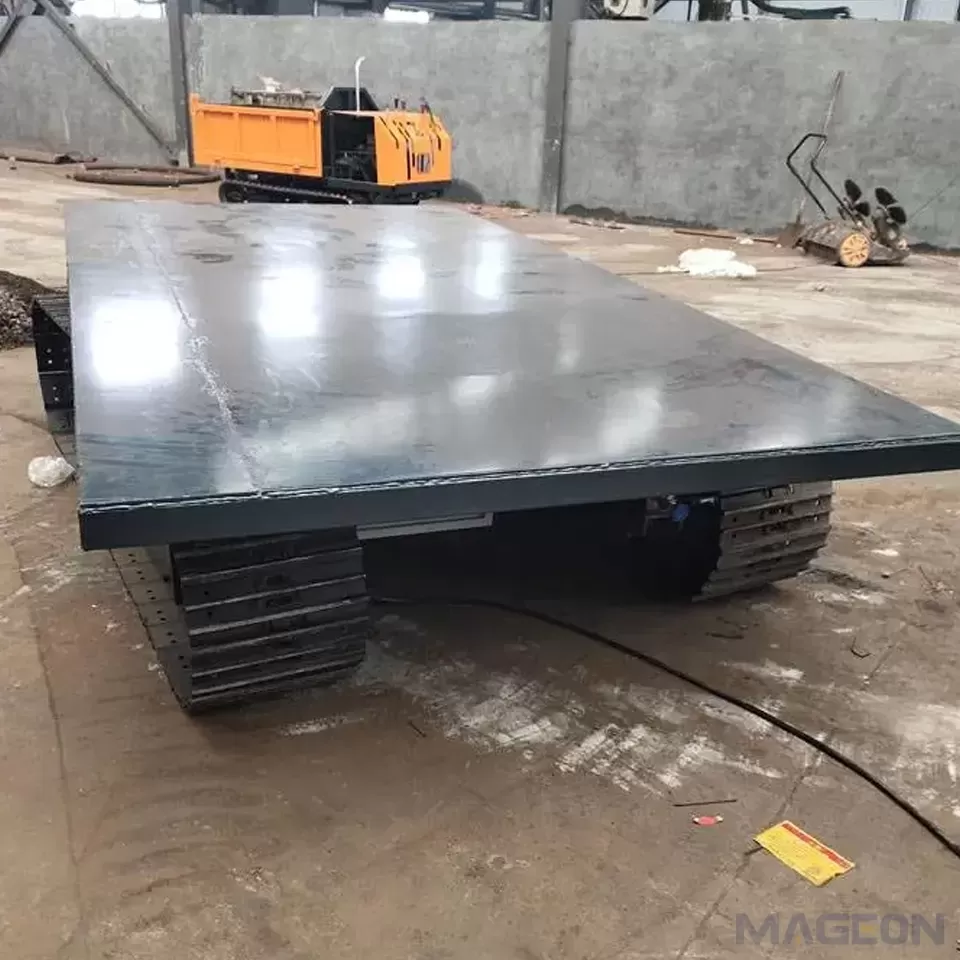

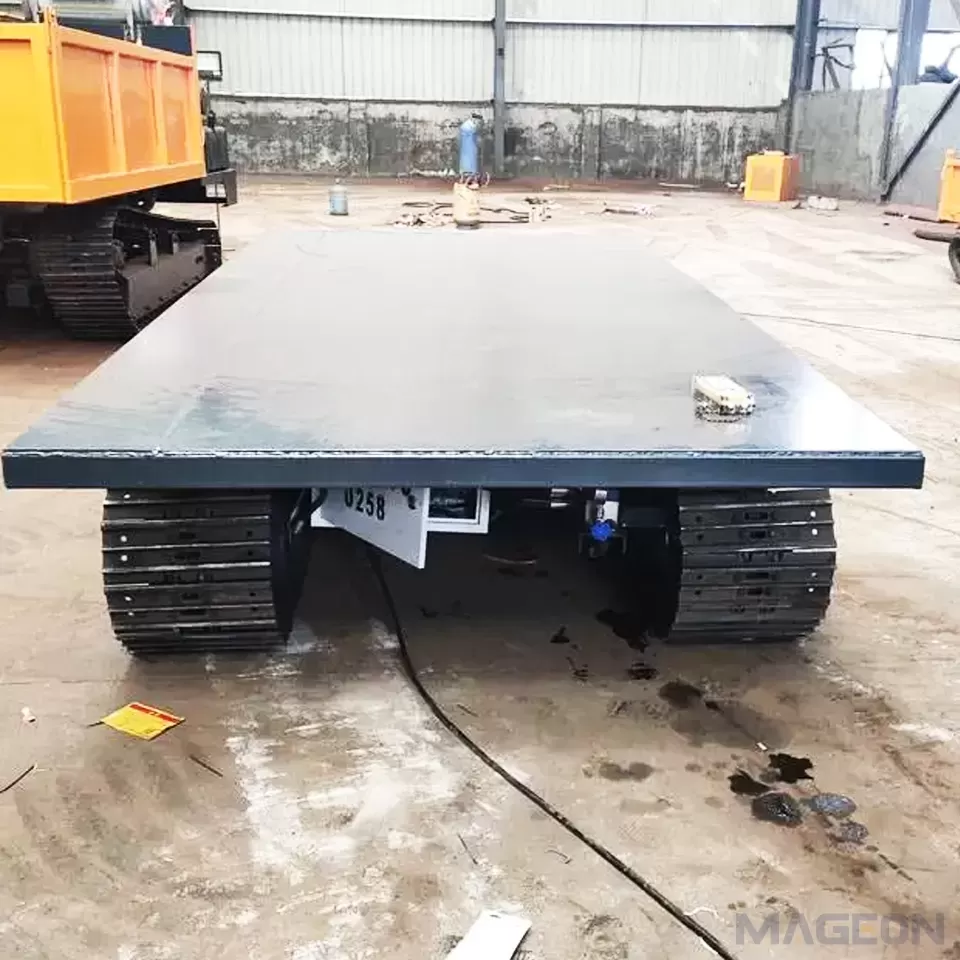

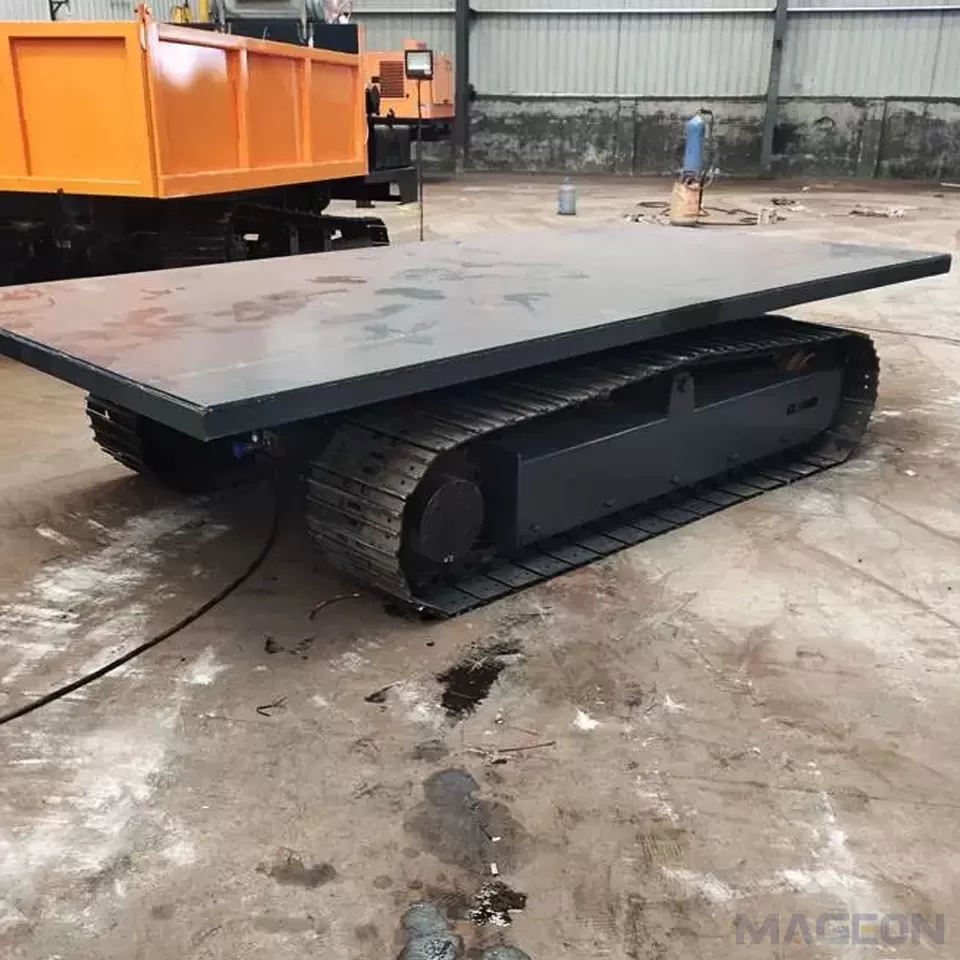

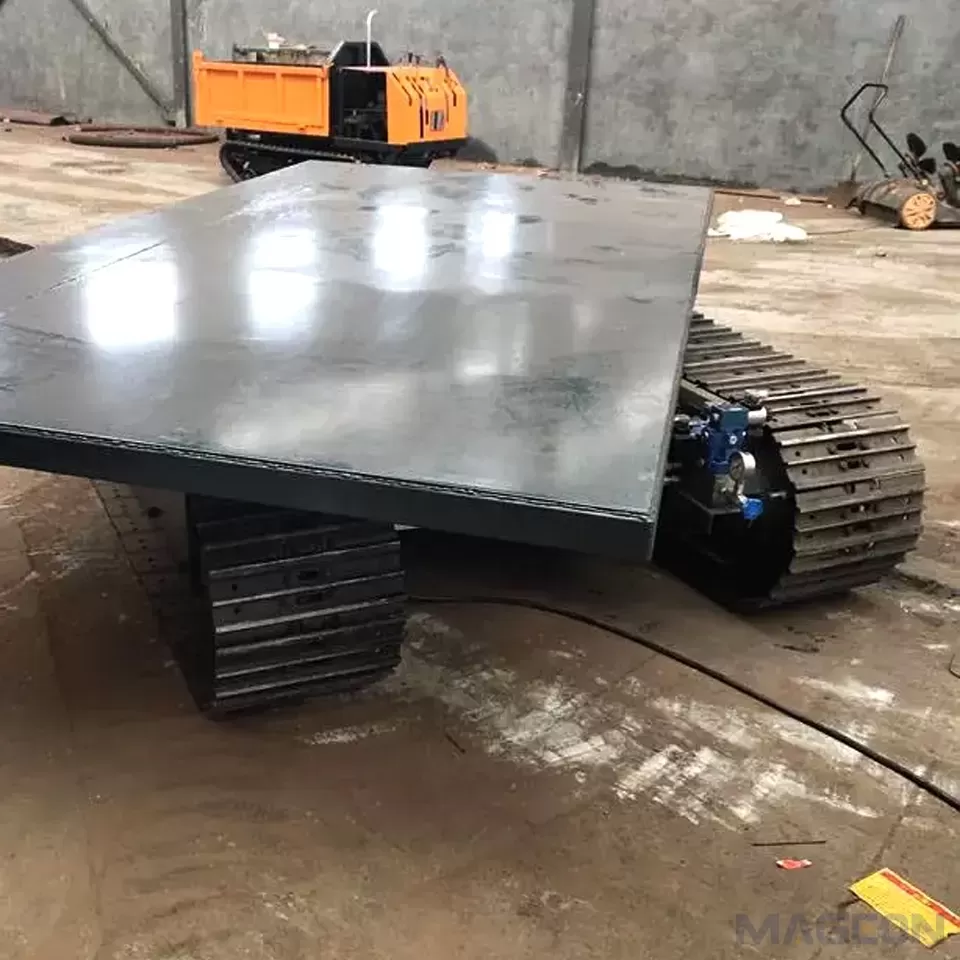

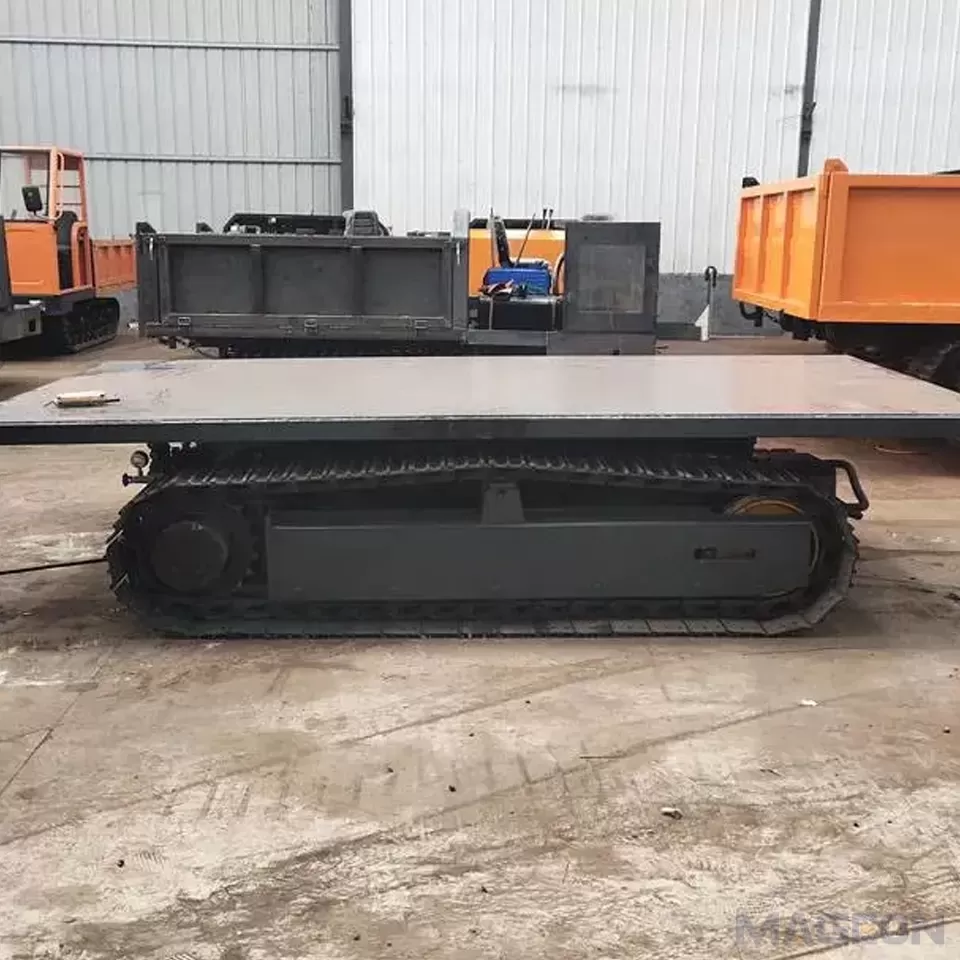

A complete crawler chassi consists of a track assembly, drive sprockets, idlers, track rollers, main frame and two sets of travel reducers. The travel reducer integrates a motor, gearbox, brake and valve body, with a compact structure and reliable performance.
For equipment such as drilling rigs, the whole machine is mounted on the chassis. By adjusting the travel speed of the track chassis through the control handle, the whole machine can realize flexible movement, steering and climbing, with simple and intuitive operation.
Application Scenarios
The track traveling mechanism is widely used in field operation vehicles such as construction machinery and tractors. It adapts to various complex terrains including mountains, hills, deserts, Gobi, muddy roads and swamps. Given harsh operating conditions, the traveling mechanism is designed with sufficient strength and rigidity, as well as reliable traveling and steering capabilities.
Customization Service
All parameters of the chassis can be customized according to customer requirements, including overall dimensions, track width, drive mode, load configuration and upper mounting interface. The MAGEON technical team provides targeted adjustment schemes based on customers' host equipment parameters and working conditions to achieve perfect matching between the chassis and upper equipment.
This high-performance crawler track undercarriage provides stable and reliable walking support for various types of equipment, making it a high-quality choice for construction machinery, special robots and transportation equipment.
Frequently Asked Questions
Q: What tonnage ranges do your track undercarriage products cover?
A: Our standard products cover three load ranges: 5–8 tons, 10–15 tons and 15–24 tons. We also provide customized solutions for special load requirements to match equipment of different tonnages.
Q: What drive modes are available for the chassis?
A: We provide two main drive configurations: full hydraulic drive and electric drive. Full hydraulic drive delivers strong power and high reliability, suitable for heavy load and harsh working conditions; electric drive offers higher control accuracy and lower noise, suitable for intelligent equipment such as robots.
Q: What is the difference between steel track and rubber track?
A: Steel track has wider working condition adaptation, longer service life and strong puncture & impact resistance, suitable for mines and rocky roads; rubber track features low noise, no pavement damage and good driving smoothness, suitable for municipal roads and soft ground operations.
Q: Can the size and parameters of the chassis be customized?
A: Yes. All parameters including chassis length, width, height, track width and drive configuration can be customized. We can also design the upper mounting interface according to the customer's host equipment parameters.
Q: What type of motor is used for the travel reducer?
A: It is equipped with a built-in low-speed high-torque motor travel reducer, which integrates a motor, gearbox, brake and valve body. It has a compact structure, large output torque and excellent climbing performance, adapting to various complex terrain operations.
Q: What complex terrains is this chassis suitable for?
A: It is suitable for various complex terrains such as mountains, hills, deserts, Gobi, muddy roads and swamps. The chassis has sufficient strength and rigidity, with reliable travel and steering capabilities, maintaining stable operation in harsh environments.
Q: What is the delivery cycle of standard chassis products?
A: For standard tonnage chassis in stock, delivery can be arranged within a short cycle. For customized products, the delivery cycle will be determined according to customization complexity, and we will provide a clear schedule at the demand confirmation stage.
Q: What core components does a complete track chassis consist of?
A: A complete track chassis mainly consists of a track assembly, drive sprockets, idlers, track rollers, main frame and two sets of travel reducers. The travel reducer integrates multiple functions of driving, braking and speed regulation.
Q: How to choose between hydraulic drive and electric drive?
A: For heavy-load construction machinery and harsh working conditions, hydraulic drive is recommended for stronger power and reliability; for intelligent robots, equipment with high control accuracy requirements and indoor operations, electric drive is more suitable. We can also provide targeted recommendations based on your specific scenarios.
Q: What after-sales and maintenance support do you provide?
A: We provide complete after-sales service and technical support, including product quality warranty, wearing parts supply and on-site maintenance guidance. We can also provide operation and maintenance training for the customer's team to ensure long-term stable operation of the equipment.
Applicable products:
Compatible Equipment & Product Applications
Intelligent robot platforms and inspection robots
Small drilling rigs, piling machines and engineering drilling equipment
Mini excavators and small construction machinery
Mountain crawler transporters and special operation vehicles
Agricultural & forestry equipment and desert operation machinery
