What are the functions of all parts of the crawler chassis of the excavator? MAGION will take you to learn the core parts and their function descriptions in detail

The crawler undercarriage is the foundational travel structure of an excavator, bearing the full weight of the machine and providing traction for movement and operation. As a professional undercarriage manufacturer, MAGEON breaks down all core components and their functions in this guide, to help equipment operators and maintenance teams understand the structure, optimize daily maintenance and extend service life.

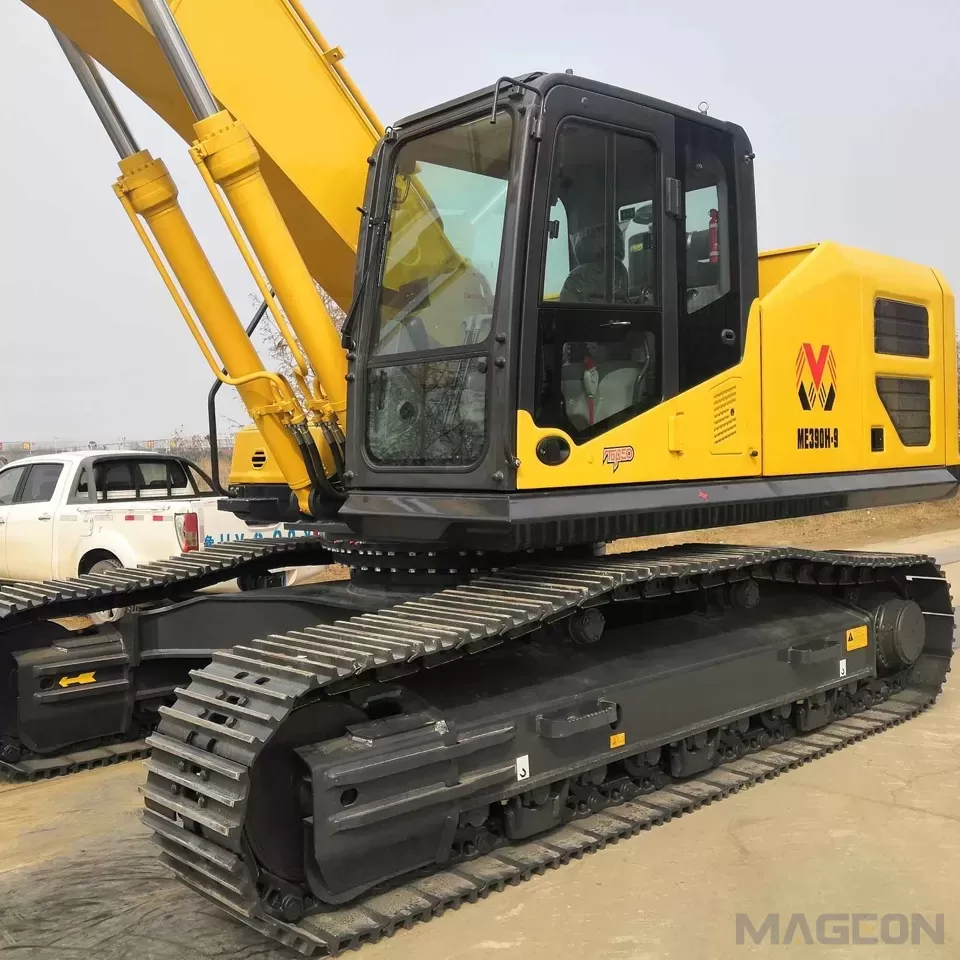

Core Components Overview & Key Parameters

A complete crawler chassis system consists of structural frame, travel drive and circulating track assembly. Core components and their basic parameters are as follows:

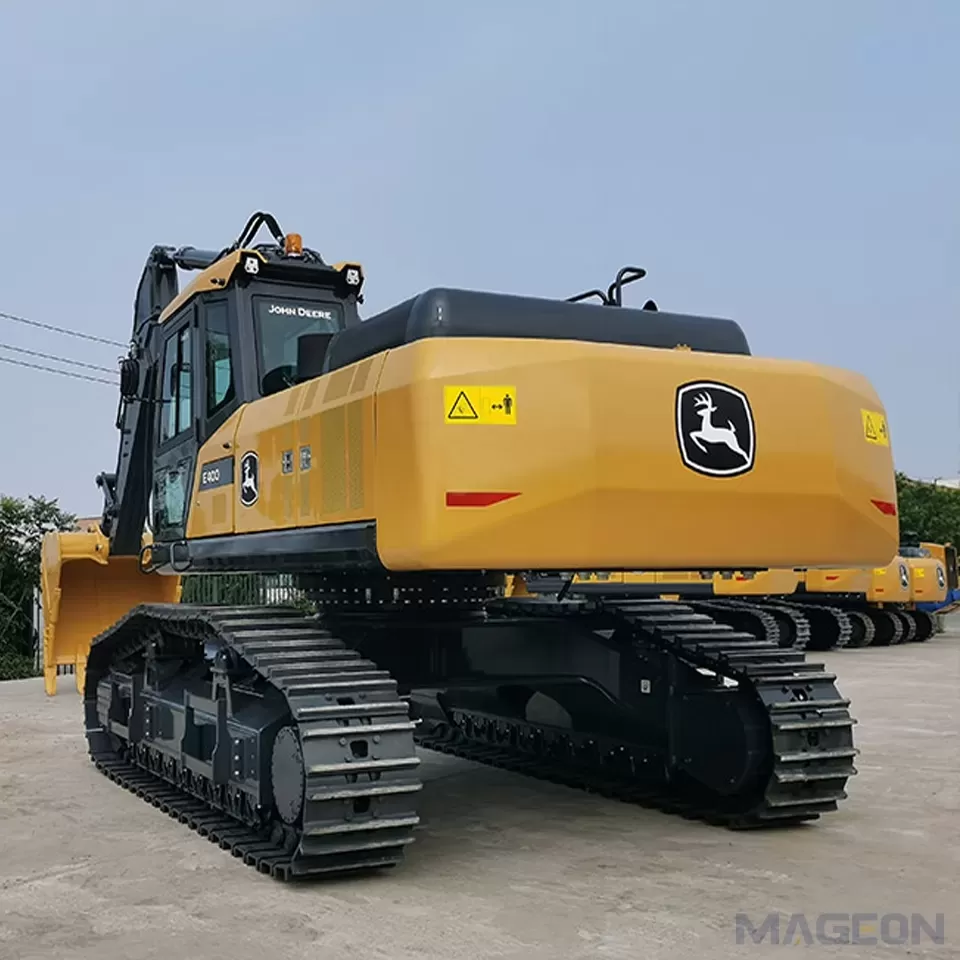

1. Track Assembly

The track assembly is the ground-contacting circulating part of the undercarriage, composed of track chains, track shoes, pins and bushings.

Core function: It directly contacts the ground, disperses the weight of the whole machine to reduce ground pressure, and meshes with the drive sprocket to convert rotational power into forward/reverse driving force, providing sufficient traction for equipment walking and operation.

Performance characteristics: Track shoe width and grouser shape directly determine traction and ground passability; pin and bushing wear resistance is the core factor affecting the service life of the track chain.

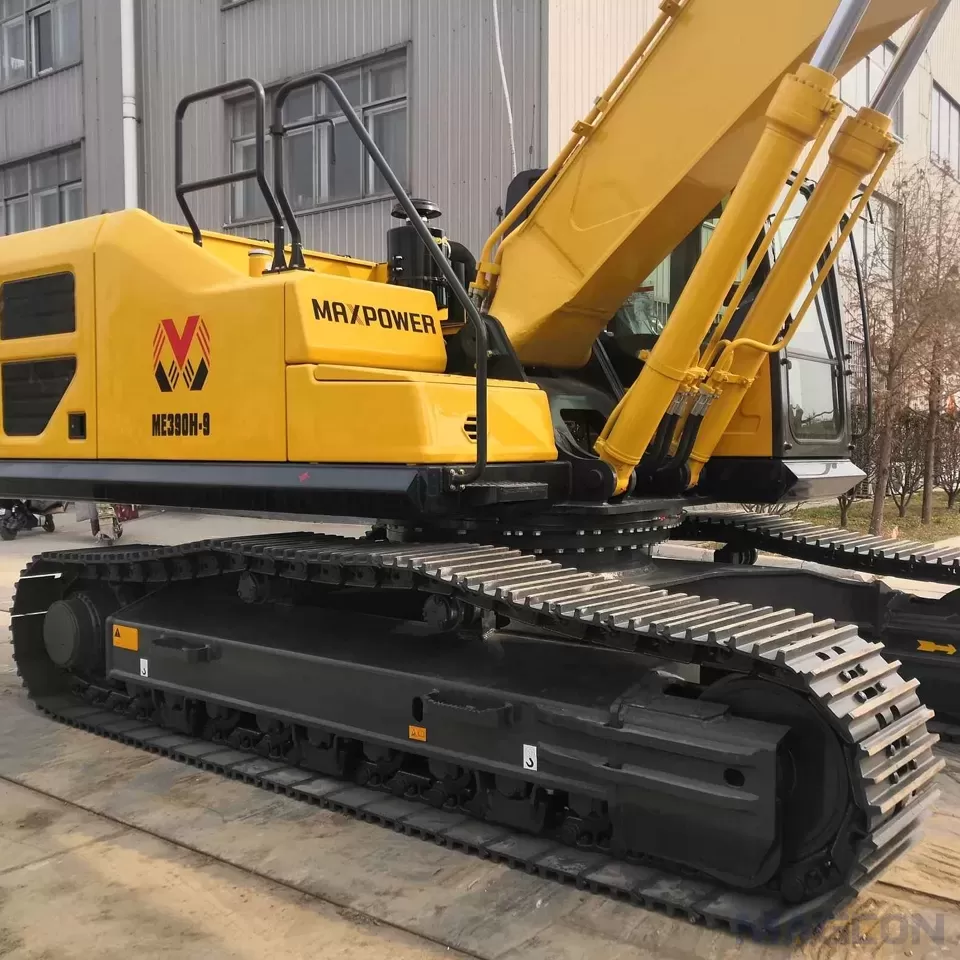

2. Track Rollers (Lower Rollers)

Track rollers are installed on the lower part of the track frame, arranged in multiple groups along the track direction.

Core function: They carry the full weight of the excavator body, roll along the track shoe surface, and transfer the machine weight evenly to the ground section of the track. At the same time, they restrict the lateral movement of the track and prevent the track from deviating sideways.

Design highlights: Most adopt double-sealed structure with built-in bearings, which are lubricated once for life, effectively preventing mud and water from entering and adapting to harsh working environments.

3. Carrier Rollers (Upper Rollers)

Carrier rollers are installed on the upper part of the track frame, supporting the return section of the track chain.

Core function: They support the weight of the upper return track, prevent the track from sagging and swinging laterally, ensure smooth return of the track, and reduce vibration and abnormal noise during operation.

Maintenance points: Regularly check the rotation flexibility and sealing condition, and replace them in time if oil leakage or jamming occurs, so as to avoid accelerated wear of the track chain.

4. Front Idler

The front idler is installed at the front end of the track frame, connected with the tensioning device.

Core function: It guides the track to run in alignment, adjusts the tightness of the track together with the tensioning system, and at the same time bears the impact force when the equipment passes over obstacles, playing a certain buffering role.

Performance requirements: The wheel surface has high wear resistance, and the matching clearance with the track chain is precise, so as to avoid track derailment caused by excessive wear.

5. Drive Sprocket

The drive sprocket is installed at the rear end of the track frame, connected with the output end of the travel reducer.

Core function: It meshes with the track chain teeth, converts the rotational torque output by the reducer into the circulating power of the track, and is the core component for power transmission of the travel system.

Wear characteristics: The tooth surface is subject to long-term repeated impact and friction, and usually adopts quenching heat treatment to improve surface hardness and wear resistance.

6. Tensioning Device

The tensioning device is usually composed of a grease cylinder, a recoil spring and an adjustment mechanism, installed between the front idler and the track frame.

Core function: It maintains the track at an optimal tension state, avoids track loosening and derailment or excessive tension accelerating wear; at the same time, the recoil spring absorbs the impact during walking and reduces the impact load on the frame and components.

Adjustment method: Most models adjust the tension by injecting or releasing grease, and regular inspection and adjustment are required during daily maintenance.

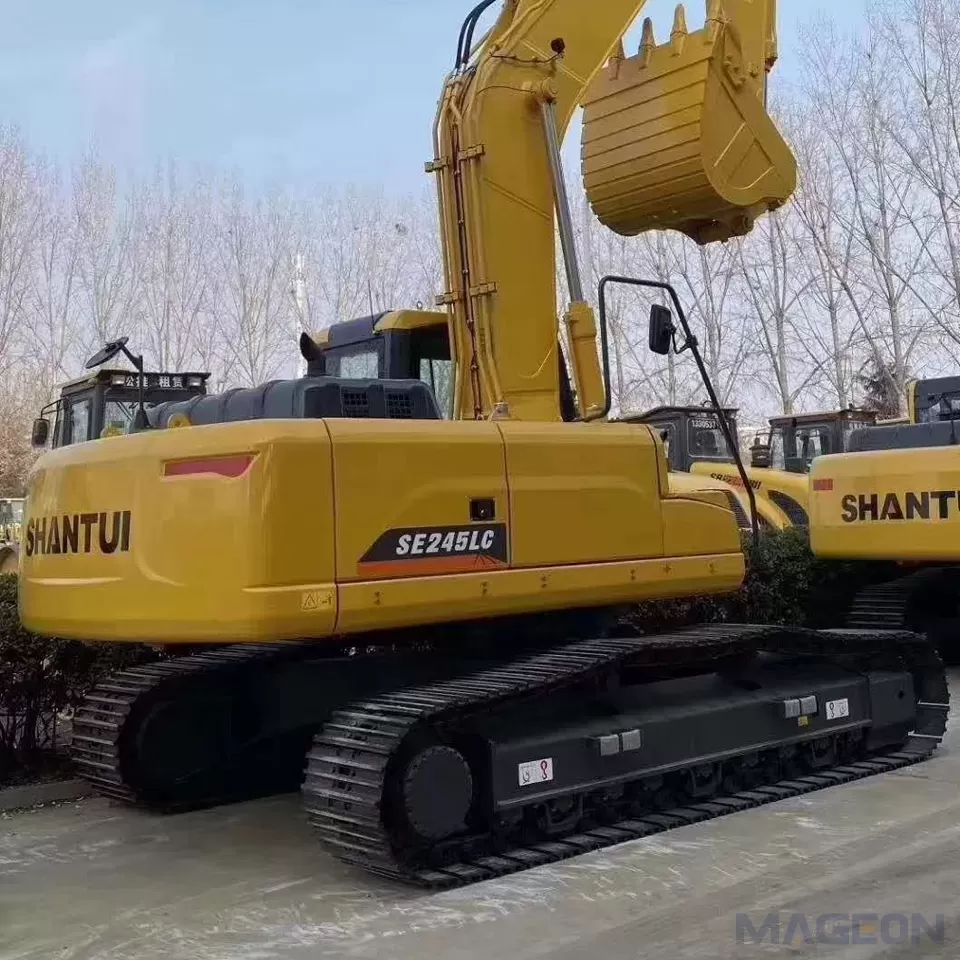

7. Track Frame

The track frame is the welded steel main structure of the whole undercarriage system.

Core function: As the load-bearing skeleton of the undercarriage, it installs and fixes all components such as rollers, idlers, sprockets and reducers, and bears all static and dynamic loads during equipment operation.

Structural design: Most adopt box-type beam structure, which has high bending and torsional rigidity and can withstand long-term heavy load and impact in harsh working conditions.

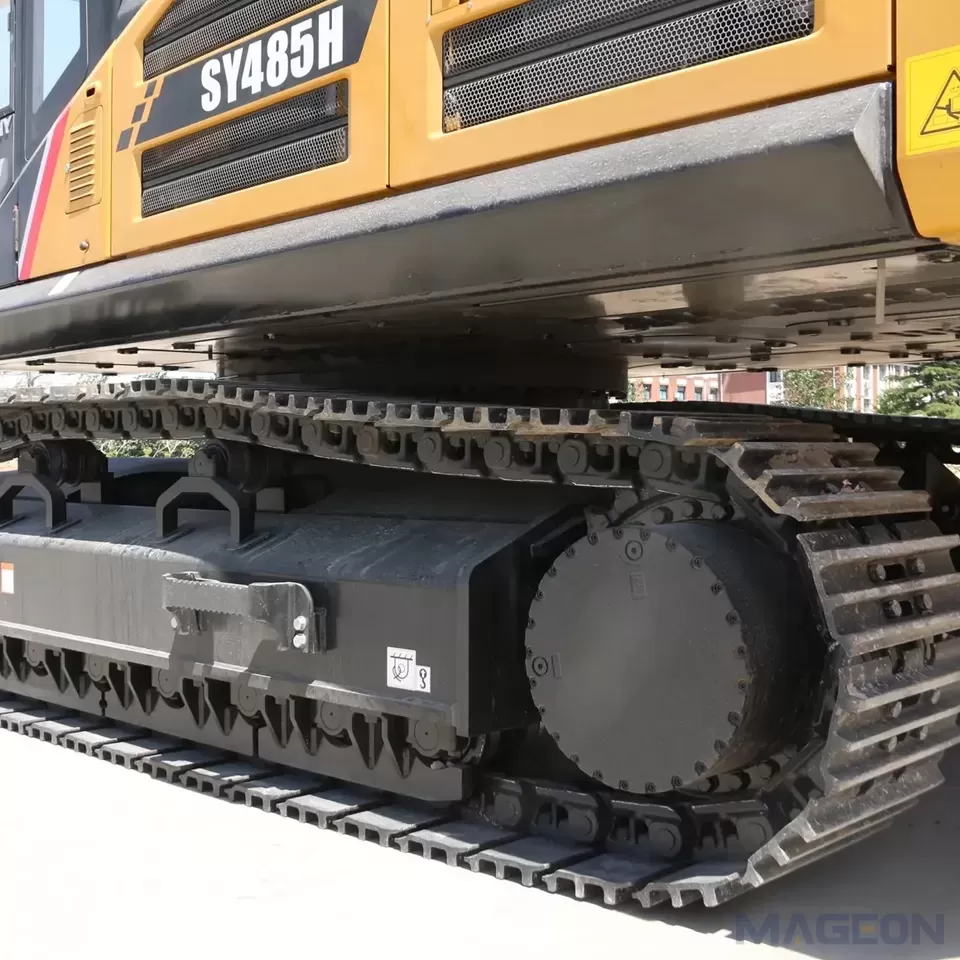

8. Travel Reducer

The travel reducer integrates a hydraulic motor and a gear reduction mechanism, installed on the inner side of the drive sprocket.

Core function: It reduces speed and increases torque for the power output by the hydraulic motor, and then transmits it to the drive sprocket to provide sufficient torque for equipment walking and climbing. It also integrates a braking mechanism to ensure parking safety on slopes.

Maintenance points: Regularly check the oil level and oil quality, and replace the lubricating oil according to the maintenance cycle to ensure transmission efficiency and service life.

Summary

Each component of the crawler track undercarriage cooperates with each other to jointly complete the functions of load bearing, power transmission and walking support. Understanding the function and wear characteristics of each component is helpful for scientific daily maintenance, reducing unplanned downtime and reducing operation and maintenance costs. MAGEON provides full-series high-quality undercarriage parts for all tonnage excavators, supporting customized parameters and batch supply.
