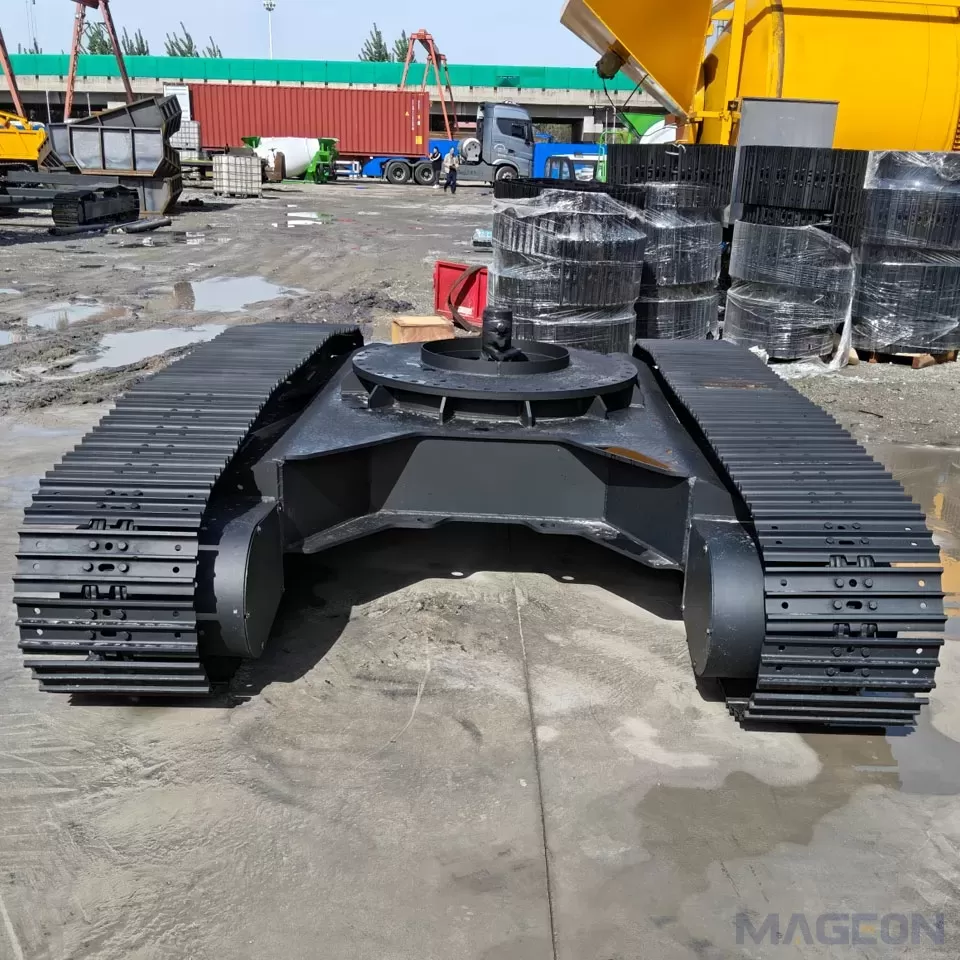

Leveraging its deep R&D expertise in custom crawler chassis and rich industry experience, MAGEON has accurately fulfilled customers’ personalized demands and successfully completed the R&D, production and delivery of custom steel track undercarriage for drilling rigs. Tailor-made for customers’ exclusive drilling rig equipment, this batch of chassis focuses on the complex working conditions and installation adaptation requirements of drilling operations, fully meeting the operation standards of geological exploration, mining drilling and other scenarios. It not only solves the pain point of insufficient adaptability of customers’ original chassis, but also demonstrates MAGEON’s core technical and service advantages in the field of custom undercarriage solutions.

Core Product Features & Technical Specifications

To adapt to the characteristics of drilling rig operations, this batch of custom chassis adopts targeted design optimization in material, structure and travel system. The core technical specifications are summarized as follows:

1. High-Strength Structure for Stable Drilling Operation

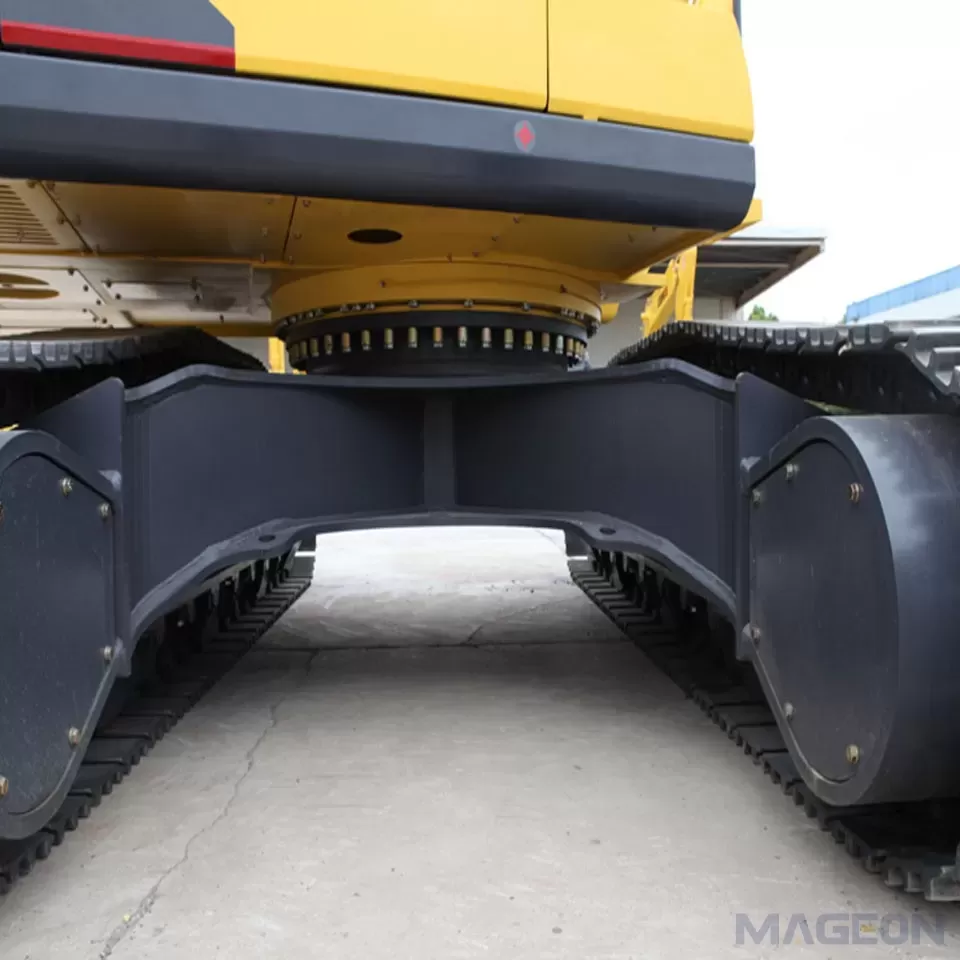

Made of high-strength alloy materials, the chassis balances structural rigidity and operational flexibility. It can accurately match the installation size and load-bearing needs of the customer’s drilling rig, effectively avoiding problems such as chassis offset and excessive vibration during drilling operations, and ensuring the accuracy and safety of drilling operations.

2. Optimized Travel System for Complex Terrains

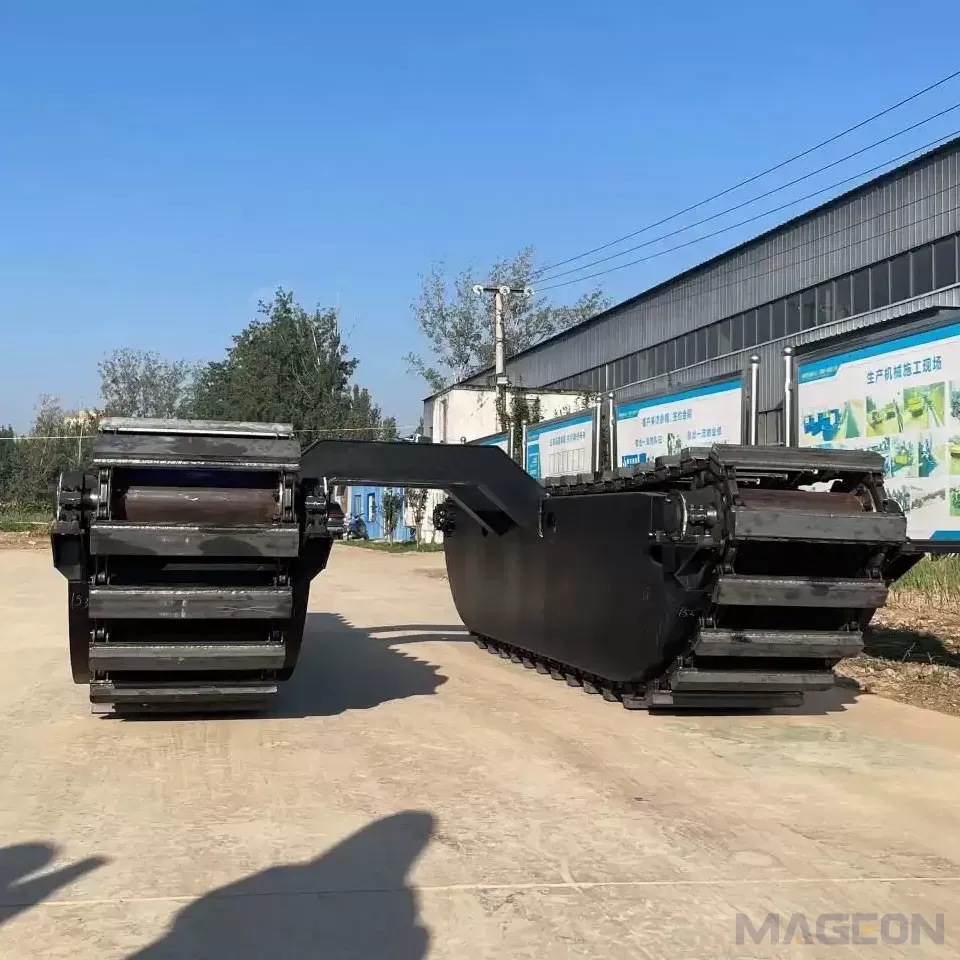

Combined with the characteristic that drilling rigs mostly operate in complex field terrains such as mud, rock piles and gentle slopes, the chassis has optimized the traveling and tensioning system, improved the passability and driving stability in complex terrains, and easily coped with the harsh road conditions of field exploration. This robust crawler undercarriage  maintains reliable performance even in long-term outdoor harsh environments.

3. Full-Process Personalized Customization Service

MAGEON takes full account of customers’ personalized needs, providing customized spray painting and packaging services. Customers can customize exclusive appearance colors according to their own needs, with packaging plans suitable for transportation and storage needs. Every detail is strictly controlled to balance practicality and aesthetics.

Project Outcome & Customer Feedback

As an enterprise deeply engaged in the crawler chassis field for many years, MAGEON has always put customer needs first, established a complete customized service system, and provides full-process refined services from demand connection, scheme design, manufacturing to quality inspection and delivery acceptance.

During the production of this batch of custom chassis, MAGEON strictly followed industry standards and customer requirements, established a strict quality control process, and conducted comprehensive verification on the adaptation accuracy, operation stability and customization service details of the chassis to ensure that each product meets the customer’s operation requirements.

At present, this batch of custom steel crawler track undercarriage has been successfully delivered to customers and put into use, winning high recognition and praise from customers with its excellent adaptability, stability and thoughtful customization services.

Looking Ahead

MAGEON has been deeply engaged in the R&D, manufacturing and custom service of crawler chassis for many years. With flexible customization capabilities and reliable product quality, it has gradually expanded to the supporting fields of various engineering equipment such as drilling rigs and excavators, forming a diversified and customized product service system.

The successful delivery of this custom steel track chassis for drilling rigs is not only a full embodiment of the company’s customized service capabilities, but also further improves the company’s product layout in the field of drilling equipment supporting. In the future, MAGEON will continue to focus on the core needs of customers, continuously improve customized R&D and production capabilities, optimize service processes, and provide customers at home and abroad with more customized crawler chassis products and full-process solutions that are more in line with actual operation needs, helping customers improve operation efficiency and achieve mutual benefit and win-win results.

Q: What is a custom steel track undercarriage for drilling rigs, and how does it differ from a standard undercarriage?

A: A custom steel track undercarriage for drilling rigs is a tailor-made crawler travel system designed according to the specific installation dimensions, load requirements and working conditions of customers’ drilling equipment. Unlike standard mass-produced chassis, it can fully match the interface parameters of the host equipment, adapt to special complex terrains, and effectively solve the problems of poor adaptability and unstable operation of standard chassis in personalized scenarios.

Q: What tonnage range of drilling equipment can this custom crawler chassis adapt to?

A: This custom crawler chassis is mainly developed for 10–30 ton class drilling equipment. We can also adjust the structural design and load-bearing configuration according to the actual tonnage and parameters of customers’ equipment to achieve precise adaptation.

Q: What material is the custom track chassis made of, and what about its durability?

A: The main structure of the chassis is made of high-strength alloy steel, with targeted heat treatment reinforcement. It has excellent wear resistance and torsion resistance, and can maintain stable performance under long-term heavy-load drilling operations. Its service life is significantly better than that of ordinary carbon steel standard chassis.

Q: Can this crawler undercarriage operate stably on complex field terrains such as mud, rock piles and gentle slopes?

A: Yes. This undercarriage is specially optimized for the complex terrain characteristics of field drilling operations. It is equipped with an optimized traveling and tensioning system, which effectively improves terrain passability and driving stability, and can easily cope with harsh road conditions such as mud, rocky slopes and sandy ground.

Q: What is the full customization process for a drilling rig track undercarriage?

A: The full customization process includes: 1) Demand docking: confirm equipment parameters and working condition requirements; 2) Scheme design: output customized structural scheme; 3) Scheme confirmation: adjust and optimize according to customer feedback; 4) Production and manufacturing: organize production according to confirmed scheme; 5) Quality inspection and verification: full-process testing according to standards; 6) Delivery and acceptance: packaged delivery and on-site adaptation guidance.

Q: How long is the typical production lead time for a custom crawler track undercarriage?

A: The specific lead time depends on the customization complexity and order quantity. For conventional drilling rig chassis customization, the production cycle is generally 3–6 weeks after scheme confirmation. We will provide a clear delivery schedule at the initial stage of demand docking to ensure project progress.

Q: Do you provide customized appearance painting and packaging services?

A: Yes. We fully support personalized customization of appearance spray painting, and customers can choose exclusive colors according to their brand needs. At the same time, we can provide targeted packaging schemes according to transportation and storage needs, taking into account both product protection and transportation convenience.

Q: What quality inspection procedures will the chassis go through before delivery?

A: Before delivery, all chassis will go through strict quality control processes, including adaptation accuracy verification, structural load test, traveling system performance test, sealing performance test and appearance detail inspection, to ensure that each product fully meets customer operation requirements and industry standards.

Q: Besides geological exploration drilling rigs, what other equipment and industries can this undercarriage be applied to?

A: In addition to core drilling rigs and water well drilling rigs for geological exploration, this undercarriage is also suitable for mining drilling equipment, geothermal drilling rigs, crawler engineering work platforms, small roadheaders and other equipment, covering mining, water conservancy, municipal engineering and other industries.

Q: What after-sales support and spare parts services do you provide?

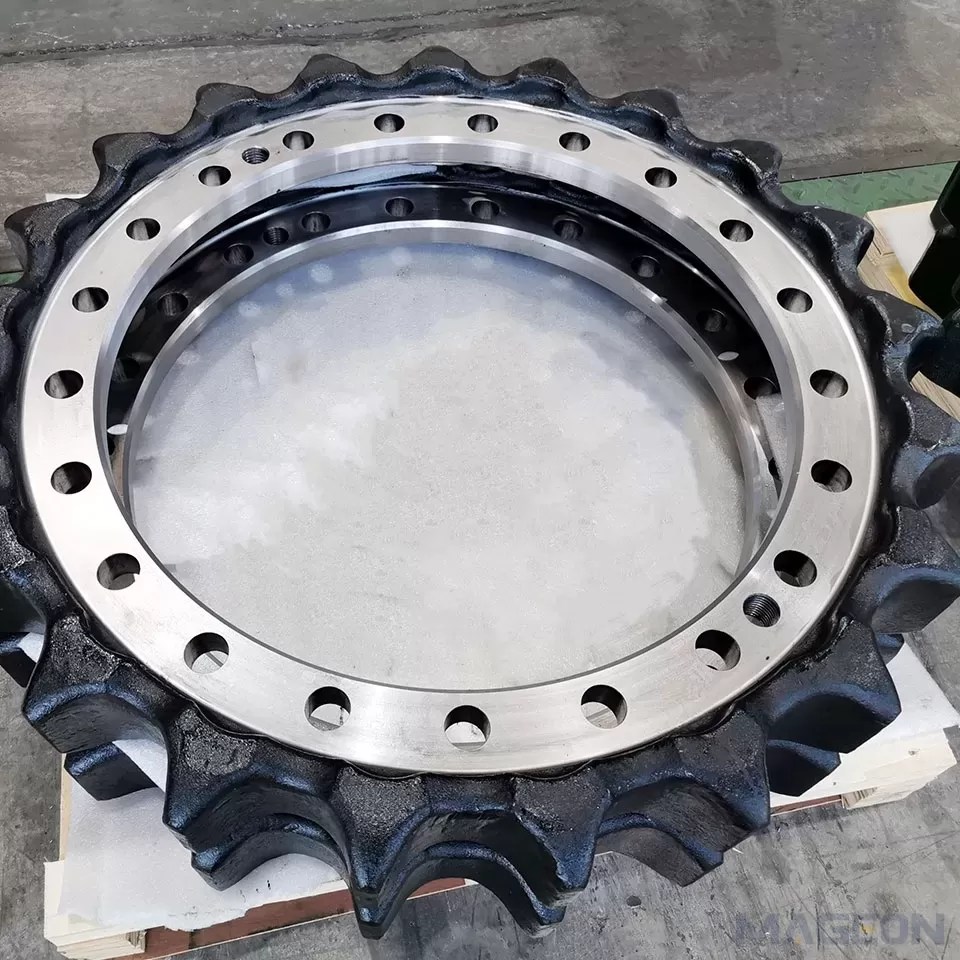

A: We provide complete after-sales support, including installation and commissioning guidance, regular maintenance consultation and global spare parts supply service. For core wearing parts such as track links and rollers, we can provide fast supply channels to reduce the downtime of customer equipment.
